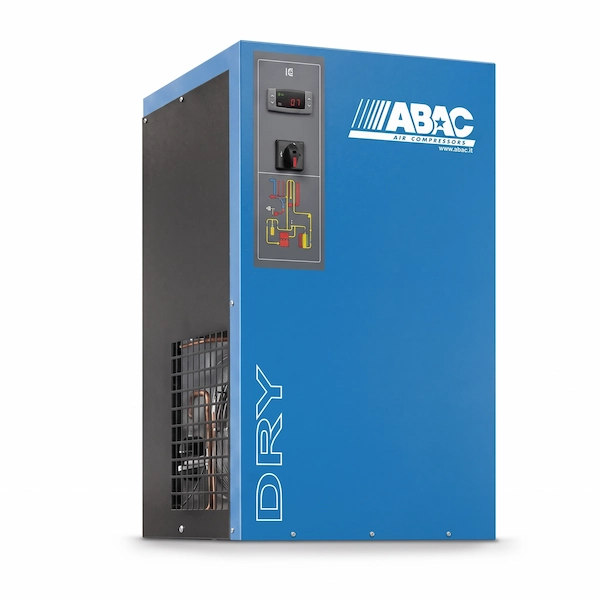

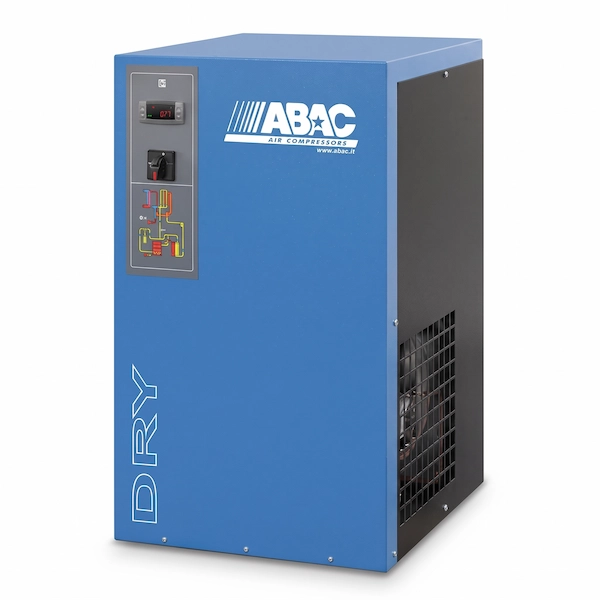

ABAC Refrigerated Air Dryer, 145 CFM, 14 Bar - DRY 290

Refrigerated Dryer, DRY 290

The Abac DRY 290 is a high-capacity, Italian-manufactured refrigerated air dryer engineered specifically for large-scale industrial pneumatic networks. Processing a massive continuous flow rate of 145 CFM (246 m³/h), this robust unit acts as the primary defense mechanism against pipeline condensation. It draws 1280 Watts (1.28 kW) of power on a standard 230V/60Hz single-phase circuit to drive a high-performance R410A refrigeration loop. By strictly chilling the incoming compressed air to a precise 3°C baseline, it forces heavy ambient water vapor to liquify instantly, preventing it from migrating downstream into sensitive machinery. Rated for heavy-duty operational pressures up to 14 Bar (203 PSI), the DRY 290 easily accommodates the extreme demands of extensive manufacturing facilities, handling sweltering inlet air temperatures of 55°C and ambient plant conditions up to 43°C with uncompromising thermodynamic stability.

Despite its formidable size and 60 kg structural weight, this E7,5 chassis integrates smoothly into major air distribution hubs utilizing standardized 1 1/2" threaded connections. Furthermore, it operates with an exceptionally low noise profile of just 58 dB(A), ensuring full compliance with strict workplace acoustic standards. An intelligent electronic drain valve autonomously expels the large volumes of separated condensate seamlessly without sacrificing any critical network pressure. By securing absolute air purity across centralized distribution systems, this heavy-duty dryer dramatically curbs mechanical downtime, prevents internal tooling corrosion, and ensures pristine finishing quality for high-demand applications spanning from heavy automotive assembly to large-scale automated CNC manufacturing.

Key Features & Benefits:

• Macro-Scale Pneumatic Processing: Engineered to anchor central air networks, delivering an immense volumetric flow of 145 CFM (246 m³/h or 4,100 l/min) to effortlessly supply high-demand commercial paint lines and heavy manufacturing sectors.

• Deep-Chilling Moisture Liquefaction: Locks internal thermodynamic parameters to a highly stable 3°C cooling point, physically extracting vapor from the air stream before it can inflict corrosion on end-point pneumatic assets, with an external dial for instant reading.

• High-Velocity 14 Bar Tolerance: Structurally reinforced to manage intense mechanical stresses, safely accommodating high-capacity compressors pushing sustained line pressures up to 14 Bar (203 PSI) without internal vessel fatigue.

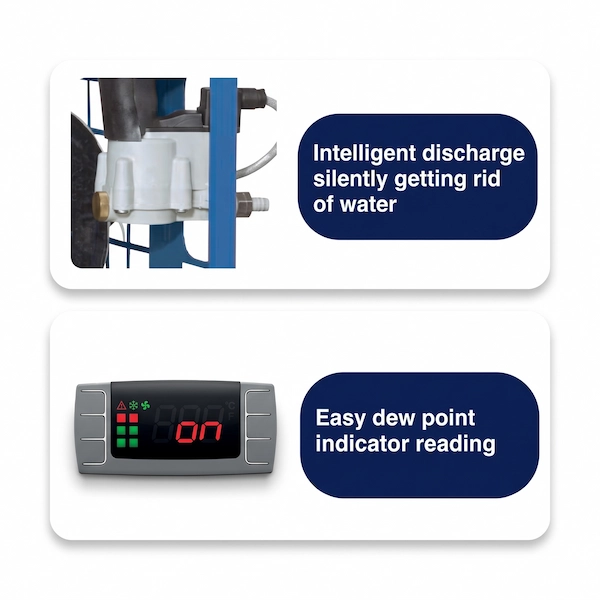

• Automated Zero-Loss Evacuation: Replaces inefficient manual bleeders with a smart electronic discharge valve that accurately calculates water accumulation and purges it silently, preserving 100% of your critical pipeline pressure while lowering ownership costs.

• Unflinching Thermal Resiliency: Purpose-built for rigorous industrial climates, maintaining supreme moisture-separation efficiency even when battling incoming air temperatures of 55°C and sweltering ambient facility heat up to 43°C.

• Acoustically Optimized Operation: Designed for integration directly on the shop floor without disturbing operators, running at a remarkably quiet 58 dB(A) to comply with strict workplace noise regulations.

• Heavy-Duty R410A Cooling Circuit: Utilizes the highly efficient R410A industrial refrigerant, maximizing the heat-exchange rate necessary for processing massive air volumes while ensuring long-term thermodynamic stability.

• End-to-End Asset Preservation: By eliminating pipeline condensation, this unit completely eradicates internal rusting and lubricant degradation, fundamentally extending the lifecycle of expensive CNC machines and pneumatic tooling.

• Expansive 1 1/2" Network Integration: The robust 60 kg architecture features oversized 1 1/2" Male connection ports, drastically reducing air restriction and enabling immediate, secure pipe-fitting into large-diameter industrial air mains.
