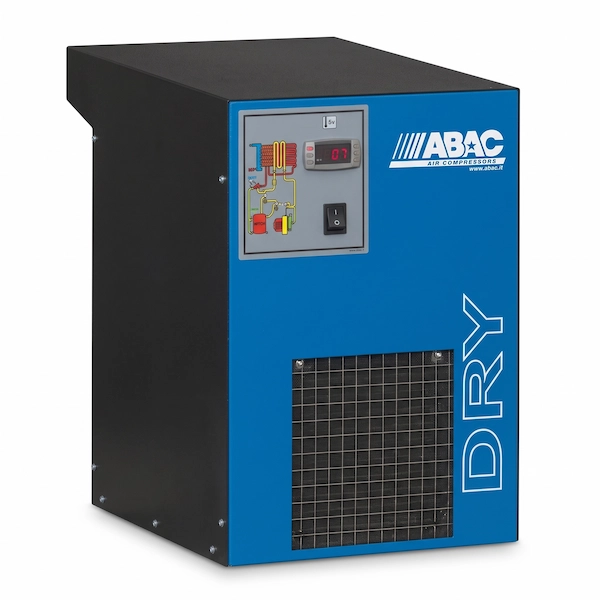

ABAC Refrigerated Air Dryer, 30 CFM, 16 Bar - DRY 60

Refrigerated Dryer

The Abac DRY 60 is a precisely engineered thermodynamic asset crafted to bridge the gap between light workshop applications and intensive industrial demands. Operating on a universally accessible 230V/60Hz single-phase circuit, this premium Italian moisture separator leverages an ultra-efficient 322 W (0.322 kW) power draw to continuously purify a balanced air volume of 30 CFM (51 m³/h). By artificially suppressing the internal pneumatic climate to a highly controlled 3°C cooling point, the system forces suspended atmospheric water vapor to instantly condense. This targeted liquefaction effectively purges harmful moisture before it can compromise sensitive downstream endpoints, eliminating the risk of internal tooling corrosion. Housed within an enduring E2 enclosure, the dryer is rigorously rated to absorb severe mechanical pipeline stresses up to 16 Bar (232 PSI), while confidently neutralizing extreme incoming air temperatures peaking at 55°C, even when ambient facility conditions escalate to a stifling 43°C.

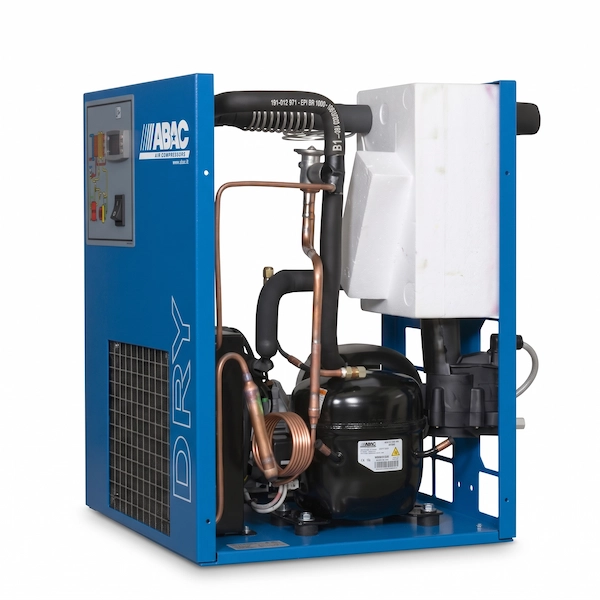

At the core of the heat exchange process is the next-generation R513A refrigerant, facilitating exceptionally rapid thermal transfer while simultaneously presenting a vastly lower global warming potential (GWP) compared to outdated industrial gases. Completely bypassing error-prone manual bleed systems, the chassis is equipped with an advanced electronic discharge valve that detects liquid accumulation and purges it autonomously without sacrificing any valuable line pressure. Consolidating immense processing power into a space-saving20 kg body, the unit simplifies spatial planning for plant managers. The integration of universally standardized 3/4" Male threaded connection ports guarantees a highly secure, leak-proof integration into active pneumatic distribution lines, instantly elevating air purity for professional auto body centers, medium-tier manufacturing, and specialized assembly lines.

Key Features & Benefits:

• Balanced Mid-Range Processing: Calibrated to deliver an exact 30 CFM (51 m³/h or 850 l/min) output, this unit provides the perfect equilibrium of volumetric purification for professional automotive centers, medium-tier manufacturing, and specialized pneumatic assembly lines requiring uninterrupted dry air.

• Rigid 3°C Thermal Control: Implements a strict thermodynamic barrier by chilling the air stream to a constant 3°C. This severe temperature reduction forces water vapor to drop out of suspension entirely, while a highly accurate external display grants technicians real-time visibility over the internal cooling cycle.

• Fortified Pressure Tolerance: Moving past the limitations of standard dryers, the internal piping matrix is structurally reinforced to handle profound mechanical strain. It safely processes high-velocity compressed air flowing at maximum thresholds of 16 Bar (232 PSI) without exhibiting any internal vessel fatigue.

• Lean Power Utilization Strategy: Maximizes pneumatic quality without inflating operational expenditures. The internal refrigeration loop is highly optimized to draw a fraction of industrial power—only 322 Watts (0.322 kW)—ensuring top-tier moisture separation remains exceptionally cost-effective.

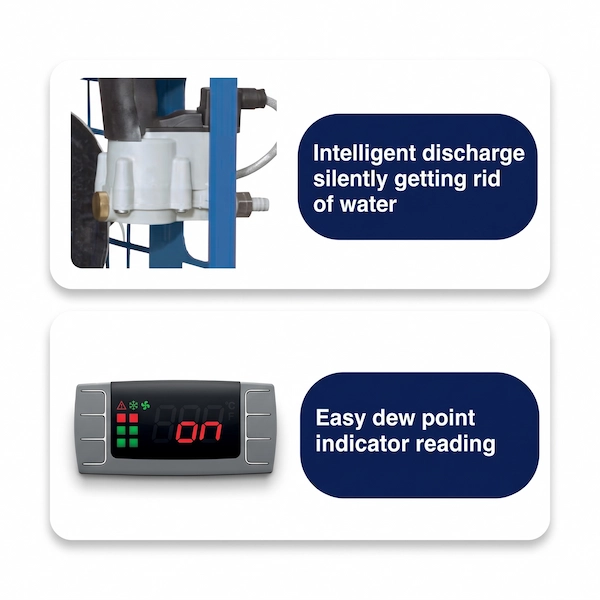

• Smart Autonomic Liquid Evacuation: Completely bypassing traditional bleed systems, the chassis is equipped with an advanced electronic discharge valve. This logic-driven mechanism detects liquid accumulation and purges it autonomously and silently, deploying an internal seal that strictly safeguards the facility’s valuable network pressure.

• High-Heat Climate Adaptability: Formulated to excel in hostile, non-ventilated industrial zones, the oversized cooling cores rapidly neutralize blistering incoming air lines reaching 55°C, ensuring that intense ambient temperatures up to 43°C never compromise the separation process.

• Total Downstream Asset Shielding: By guaranteeing a clinically dry pneumatic supply, this unit acts as an impenetrable shield for your machinery. It proactively halts the oxidation of internal valves and the dilution of pneumatic lubricants, aggressively extending the operational life of expensive CNC routers and automated spray guns.

• Environmentally Progressive R513A Cooling: At the heart of the thermodynamic cycle is the modern R513A refrigerant. This advanced chemical medium delivers incredibly fast heat transfer rates while remaining fully compliant with modern environmental sustainability targets.

• Streamlined E2 Architecture & 3/4" Fittings: Condensing immense structural durability into a compact 20 kg E2 body, the unit is effortless to deploy. Standardized 3/4" Male threaded connection ports guarantee a highly secure, frictionless integration directly into your active pneumatic piping.
