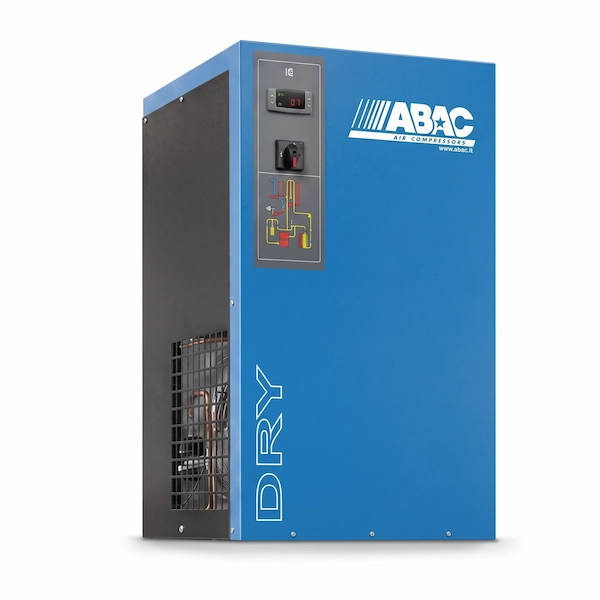

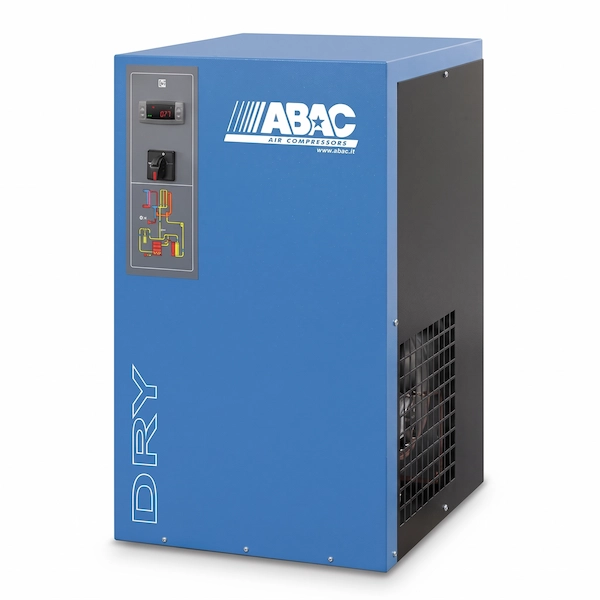

ABAC Refrigerated Air Dryer, 105.94 CFM, 14 Bar - DRY 210

Refrigerated Dryer, DRY 210

The Abac DRY 210 stands as an advanced thermodynamic solution engineered to meet the rigorous demands of industrial automation and large-scale manufacturing facilities. Operating efficiently on a standard 230V/60Hz single-phase grid, this high-capacity unit utilizes a perfectly calibrated 1067 W (1.067 kW) electrical profile to purify an immense, continuous volumetric flow of 105.94 CFM (180 m³/h). By lowering the internal pipeline temperature to a strictly controlled 3°C thermal baseline, the system executes rapid phase-change separation, forcing atmospheric moisture to instantly liquefy before it can cause corrosion in end-point machinery. Structurally resilient, the E6 enclosure is built to operate reliably on demanding shop floors, securely absorbing continuous operational pressures of 13 Bar and accommodating maximum load surges up to 14 Bar (203 PSI). Furthermore, it easily counteracts severe thermal challenges, efficiently extracting moisture from high-temperature 55°C inlet air across ambient facility climates up to 43°C.

Fueling this highly efficient heat exchange is the environmentally compatible R513A refrigerant, delivering rapid thermal absorption while strictly aligning with progressive sustainability protocols. To maximize operational autonomy, the dryer features an intelligent, zero-loss electronic evacuation matrix that automatically purges accumulated wastewater without releasing critical network pressure. Generating a remarkably low noise profile of merely 58 dB(A) despite its substantial 44 kg build, this unit integrates seamlessly into active production zones while fully complying with occupational acoustic standards. Outfitted with expansive 1" threaded ports for unrestricted pipeline coupling, the DRY 210 secures an uninterrupted supply of highly purified dry air, significantly enhancing the reliability of complex CNC centers and heavy-duty commercial coating operations.

Key Features & Benefits:

• High-Volume Purification Output: Specifically engineered to support demanding industrial sectors, this unit flawlessly manages a continuous pneumatic output of 105.94 CFM (180 m³/h or 3,000 l/min). This macro-scale flow capacity eliminates restrictive bottlenecks in massive air distribution networks, ensuring large automotive fabrication floors and expansive manufacturing lines remain fully pressurized with moisture-free air.

• Robust 14 Bar Structural Design: Constructed to withstand profound internal mechanical stress, the containment architecture easily sustains continuous working pressures of 13 Bar, while being fully certified to absorb maximum line surges up to 14 Bar (203 PSI). This durable construction ensures long-term vessel integrity when operating alongside high-yield rotary screw compressors.

• Precise 3°C Moisture Extraction: Maintains a reliable thermodynamic barrier by holding the internal chilling cycle at a precise 3°C setpoint. This focused cooling action guarantees that all water vapor undergoes immediate liquefaction. An integrated front-facing display allows plant engineers to visually monitor this critical temperature metric continuously.

• Optimized 1067 W Energy Efficiency: Demonstrating exceptional thermodynamic performance, the expansive cooling circuit is driven by an economical electrical draw of just 1067 Watts (1.067 kW). This strategic balance allows factories to process large air volumes without causing unnecessary spikes in monthly mechanical energy expenditures.

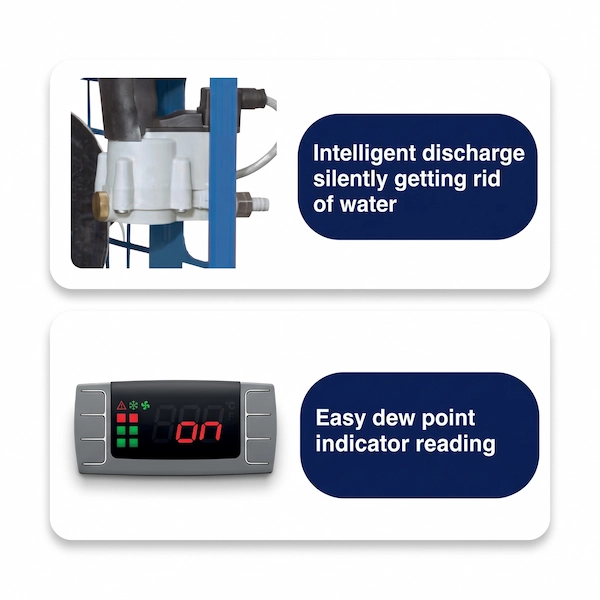

• Autonomous Zero-Loss Liquid Purge: Outperforming traditional mechanical float setups, the chassis is equipped with an intelligent electronic expulsion valve. This advanced system autonomously tracks internal water build-up and purges the condensate quietly, employing an instantaneous internal seal to completely block the escape of valuable compressed air.

• High-Heat Operational Stability: Designed to operate efficiently in demanding industrial microclimates, the heavy-duty condensers rapidly remove heat and moisture from incoming air streams peaking at 55°C, maintaining exceptional separation performance even when ambient plant temperatures reach 43°C.

• Acoustically Optimized E6 Enclosure: Effectively dampening the acoustic footprint of its high-capacity internal components, this heavy-duty 44 kg chassis operates at a quiet 58 dB(A). This strategic acoustic insulation ensures full compliance with occupational health guidelines, permitting installation directly adjacent to active workstations.

• Comprehensive Downstream Asset Protection: By consistently supplying highly purified dry air, this centralized dryer systematically addresses the primary causes of pneumatic failure. It effectively prevents the internal rusting of pipes and safeguards sensitive tool lubricants, thereby extending the functional lifespan of high-value CNC centers and specialized robotics.

• R513A Refrigerant & Unrestricted 1" Couplings: Driving the cooling core is the sustainable R513A thermodynamic fluid, pairing rapid heat extraction with an eco-conscious low global warming potential. The physical installation is streamlined by oversized 1" Male threaded connection ports, guaranteeing a secure, frictionless integration into existing high-capacity industrial piping arrays.
