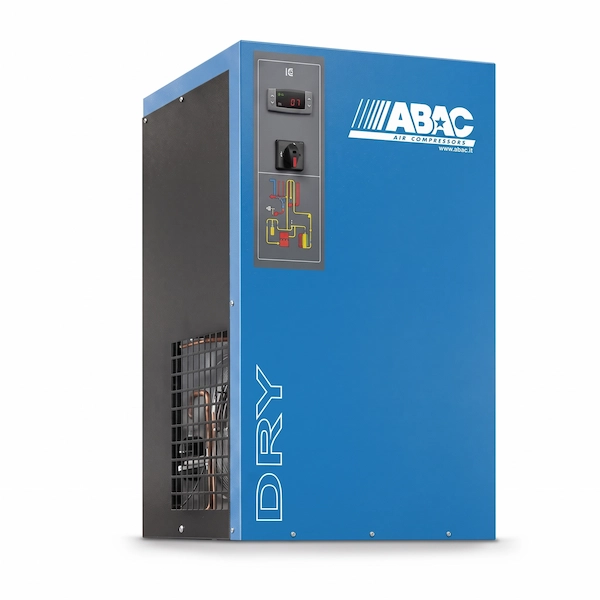

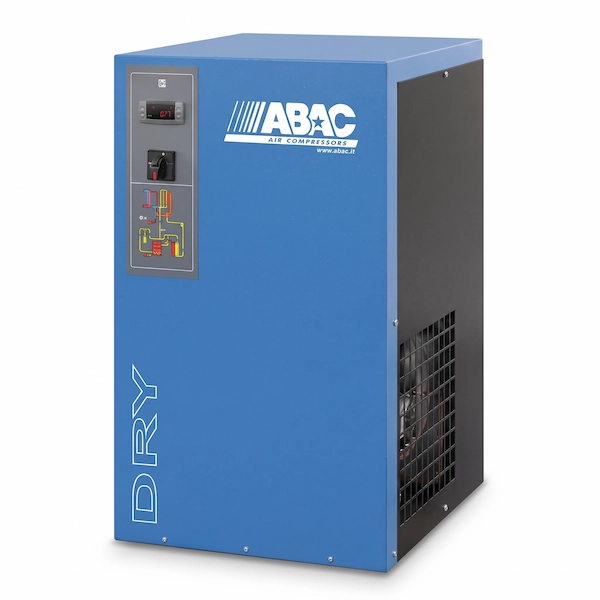

ABAC Refrigerated Air Dryer, 82.98 CFM, 14 Bar - DRY 165

Refrigerated Dryer, DRY 165

The Abac DRY 165 represents a crucial thermodynamic bridge for growing industrial facilities, delivering heavy-duty moisture separation designed specifically for medium-to-large pneumatic networks. Powered by a standard 230V/60Hz single-phase electrical framework, this unit draws 1068 W (1.068 kW) to effectively process a substantial, continuous air volume of 82.98 CFM (141 m³/h). By artificially inducing a rapid thermal drop down to a highly precise 3°C cooling baseline, the expansive E5 chassis actively forces airborne vapor to condense into disposable liquid before it can migrate. This intensive purification mechanism serves to shield specialized downstream pneumatics from the catastrophic effects of internal oxidation and water logging. Engineered for unforgiving production environments, it securely handles continuous working pressures of 13 Bar and maximum load spikes up to 14 Bar (203 PSI), easily neutralizing the threat of scorching 55°C inlet air even when ambient facility temperatures soar to 43°C.

At the core of the thermal exchange process is the environmentally progressive R513A refrigerant, maximizing heat absorption rates while strictly limiting the facility's overall carbon footprint. Beyond its raw cooling power, the dryer integrates a sophisticated, zero-loss electronic discharge matrix that autonomously purges accumulating condensate without venting any vital pipeline pressure. Despite its formidable processing capacity and44 kg structural mass, the unit remains exceptionally unobtrusive on the shop floor, generating a remarkably low noise output of just 58 dB(A). Equipped with standardized 1" connection ports for a restriction-free setup, the DRY 165 guarantees a continuous supply of pristine, moisture-free air, slashing preventive maintenance intervals across high-stakes commercial spray booths, automated assembly lines, and heavy automotive fabrication sectors.

Key Features & Benefits:

• High-Capacity Volumetric Throughput: Engineered to sustain intensive pneumatic demands, this dryer effortlessly manages a continuous throughput of 82.98 CFM (141 m³/h or 2,350 l/min). This robust processing capability ensures that expanding manufacturing floors and high-volume commercial spray booths receive an uninterrupted, flawlessly dry air supply, eliminating production bottlenecks.

• Dynamic 3°C Moisture Extraction: The core refrigeration logic is strictly locked to a 3°C cooling threshold, triggering instantaneous vapor condensation across the entire massive air stream. Plant operators can visually validate this rigorous thermal extraction in real-time via the front-mounted monitoring dial, guaranteeing absolute vapor removal before the air reaches end-point tools.

• Reinforced 14 Bar Containment Vessels: Built to absorb the intense mechanical fluctuations of heavy industrial compressors, the internal containment architecture safely operates at a continuous working pressure of 13 Bar, while being fully rated to withstand maximum line surges up to 14 Bar (203 PSI) without compromising structural integrity.

• Optimized 1068 W Electrical Profile: Delivering a massive pneumatic yield without an exorbitant electrical cost, the internal cooling circuit draws a finely tuned 1068 Watts (1.068 kW). This balanced energy expenditure ensures that your facility achieves industrial-grade moisture separation while actively suppressing long-term utility overhead.

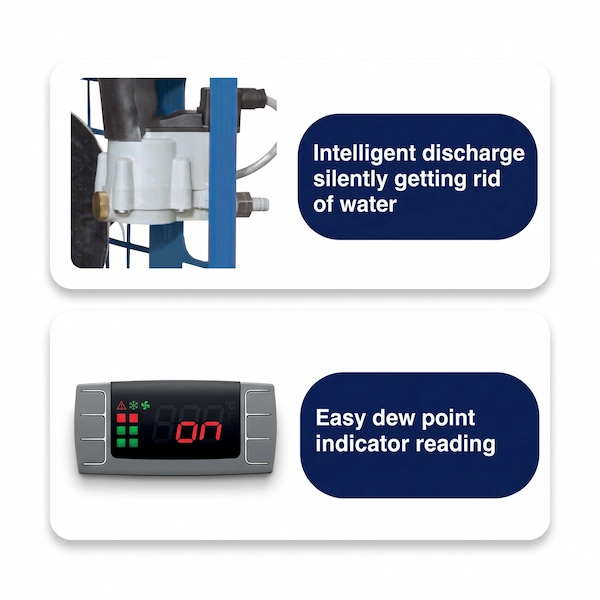

• Smart Zero-Loss Condensate Management: Eradicating the inefficiencies of manual bleeding, the unit employs a highly responsive electronic discharge matrix. It intelligently senses water accumulation and purges the liquid waste silently, simultaneously locking the pneumatic circuit to prevent any costly venting of essential network air pressure.

• Extreme Climate Thermal Defiance: Forged to operate flawlessly in hostile, non-climate-controlled factory sectors, the oversized internal condensers efficiently extract heat from incoming air lines blistering at 55°C, maintaining unyielding moisture removal even when ambient workplace temperatures hit a sweltering 43°C.

• Acoustically Dampened E5 Architecture: Despite its formidable processing power, the heavy-duty 44 kg chassis is acoustically insulated to operate at a remarkably discreet 58 dB(A). This ultra-quiet performance allows the dryer to be deployed directly on the active shop floor without violating occupational noise exposure regulations.

• Complete Downstream Tool Preservation: By delivering clinically treated, vapor-free air, this dryer serves as the ultimate preventative maintenance mechanism. It fundamentally stops internal rust formation and protects vital pneumatic lubricants, drastically multiplying the lifespan of sensitive CNC robotics and high-end automotive assembly equipment.

• R513A Refrigerant & 1" Piping Integration: The thermal loop utilizes the environmentally advanced R513A fluid, offering rapid heat absorption with a minimized global warming potential. To facilitate immediate facility deployment, the chassis features standardized 1" Male threaded ports, ensuring a restriction-free, leak-proof marriage to your existing large-scale piping infrastructure.
