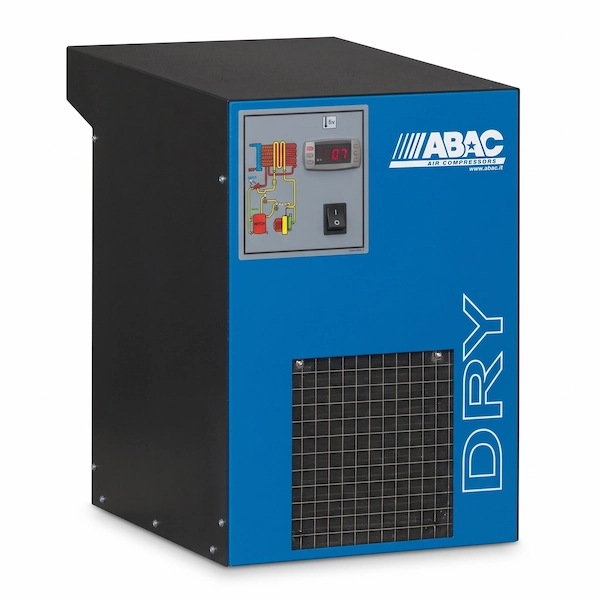

ABAC Refrigerated Air Dryer, 21.18 CFM, 16 Bar - DRY 45

Refrigerated Dryer, DRY 45

The Abac DRY 45 represents a masterclass in compact, energy-conscious pneumatic protection. Purpose-built to eradicate harmful vapor from compressed air systems, this premium Italian-manufactured dryer operates on a standard 230V/60Hz single-phase layout while drawing an astonishingly low 238 W (0.238 kW) of power. Despite its minimal electrical footprint, it effortlessly purifies a continuous air stream of 21.18 CFM (36 m³/h). By strictly regulating the internal pipeline temperature down to a highly stable 3°C cooling threshold, the mechanism forces ambient vapor to liquify instantly. This proactive moisture separation completely shields sensitive downstream equipment from rust, unexpected mechanical breakdowns, and compromised output quality. Engineered for unyielding resilience, the unit thrives under maximum line pressures of 16 Bar (232 PSI) and easily manages sweltering inlet temperatures of up to 55°C, ensuring peak operational performance even in unconditioned workspaces reaching 43°C.

The internal thermodynamic process is actively driven by the modern, sustainable R513A cooling medium, reflecting a strong commitment to global environmental standards without sacrificing rapid cooling capabilities. Furthermore, an intelligent electronic discharge valve is seamlessly built into the compact 19 kg framework, programmed to automatically purge isolated water droplets without venting any critical network air pressure. Facility integration is remarkably straightforward thanks to the universally utilized 3/4" Male threaded connection ports. By prioritizing pristine air quality alongside minimal pneumatic resistance, this dryer dramatically lowers utility expenses and extends the lifecycle of precision tools deployed in automotive repair, automated assembly, and high-end surface painting.

Key Features & Benefits:

• Precision Volumetric Air Processing: Meticulously calibrated to process a continuous volumetric flow of 21.18 CFM (36 m³/h). The internal geometry of the air-to-air and refrigerant-to-air heat exchangers ensures that incoming compressed air is treated uniformly, delivering an uninterrupted, dry pneumatic stream specifically optimized for medium-scale manufacturing and professional automotive refinishing.

• Unrivaled Energy Conservation Architecture: The entire refrigeration cycle is powered by an ultra-efficient electrical profile that draws a mere 238 Watts (0.238 kW). This hyper-low power consumption directly minimizes operational overhead for your facility, proving that superior moisture eradication can be achieved without inflating monthly mechanical utility costs.

• Rigorous 3°C Moisture Liquefaction: By forcing the internal thermodynamic environment to a highly stable 3°C cooling baseline, the unit actively manipulates the physical state of suspended vapor, causing rapid phase-change into liquid condensate. An integrated, high-visibility external gauge allows operators to continuously monitor this thermal baseline to ensure absolute air purity.

• Robust High-Pressure Structural Integrity: Mechanically forged to eliminate structural fatigue, the internal piping and vessel elements confidently accommodate high-stress pneumatic pipelines operating continuously at maximum thresholds up to 16 Bar (232 PSI), guaranteeing zero pressure-vessel deformation over years of service.

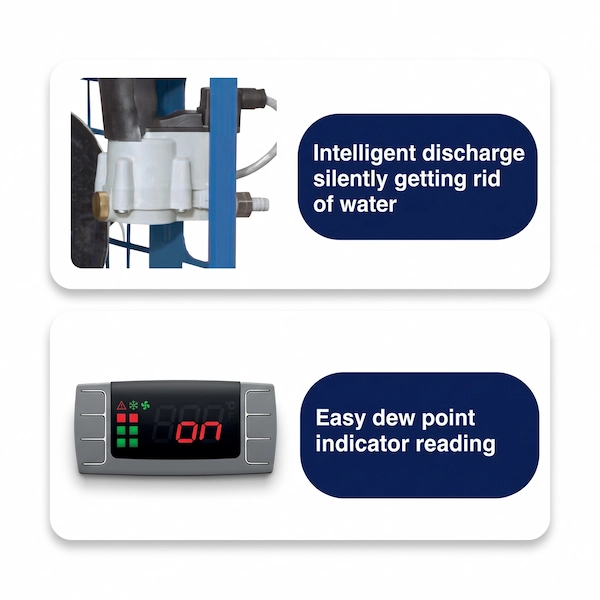

• Electronic Zero-Loss Purge Technology: Bypassing the flaws of traditional manual drains, this unit incorporates a sophisticated electronic discharge mechanism. It intelligently identifies the precise volume of accumulated water and purges it silently from the system, while an integrated sealing valve simultaneously locks in valuable network air pressure, directly conserving compressor workload.

• Exceptional Thermal Operational Bandwidth: Engineered with oversized ventilation dynamics, this dryer thrives in punishing industrial microclimates. It effectively strips moisture from scorching incoming air lines reaching 55°C, all while maintaining peak refrigeration performance in sweltering ambient facility conditions up to 43°C.

• Preemptive Pneumatic Asset Protection: By delivering clinically dry air to your endpoints, this system fundamentally eradicates the root cause of internal tooling oxidation and lubricant wash-out. This proactive defense mechanism dramatically extends the cycle-life of your pneumatic machinery and ensures a flawless, moisture-free finish in sensitive CNC machining and commercial spraying applications.

• Sustainable R513A Thermodynamic Loop: Embracing future-proof environmental compliance, the cooling circuit utilizes the latest R513A refrigerant. This specific fluid compound delivers exceptional rapid-cooling properties and thermodynamic stability, alongside a drastically reduced global warming potential compared to legacy industrial refrigerants.

• Ergonomic Footprint & Standardized Integration: Weighing a highly manageable 19 kg, the E1 chassis is structurally optimized for space-restricted utility rooms. Equipped with standardized 3/4" Male threaded fittings, it allows your maintenance teams to execute an immediate, secure, and entirely leak-proof integration into your existing compressed air architecture.
