ABAC Refrigerated Air Dryer, 64.74 CFM, 16 Bar - DRY 130

Refrigerated Air Dryer, DRY 130

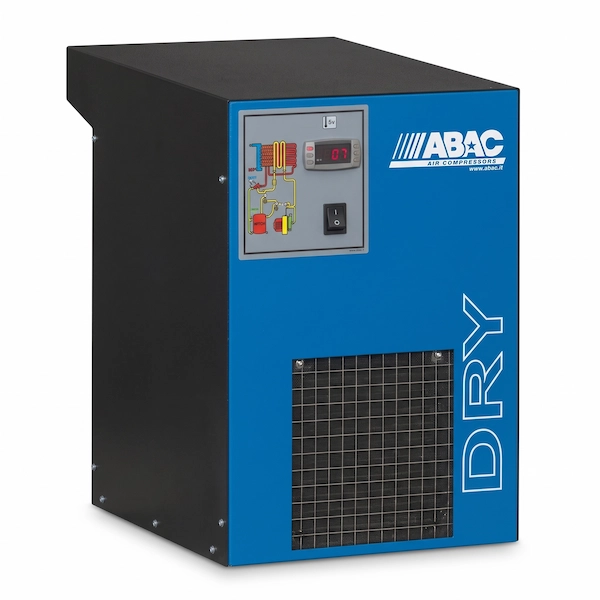

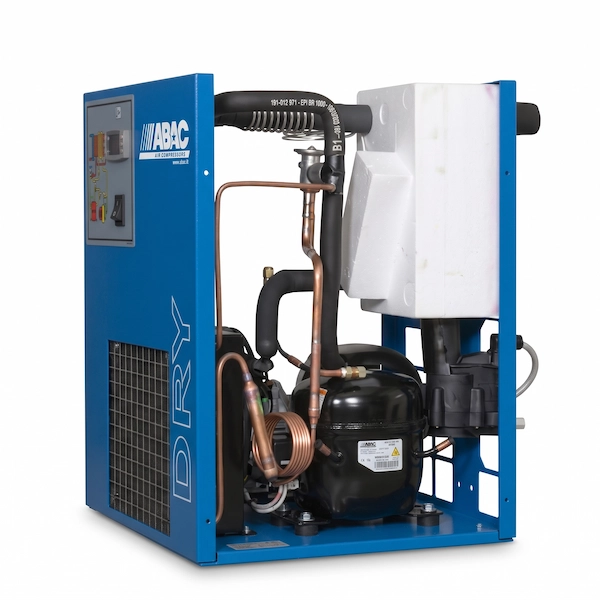

The Abac DRY 130 refrigerated air dryer is a dedicated moisture elimination unit engineered for industrial compressed air networks. Operating on a 230V/60Hz single-phase power supply, the internal refrigeration circuit draws a highly efficient 580 W (0.58 kW) to process a continuous volumetric flow rate of 64.74 CFM (110 m³/h). By steadily lowering the compressed air temperature to a constant 3°C pressure dew point (PDP), the system forces suspended ambient vapor to condense into liquid, effectively shielding downstream pneumatic machinery from internal oxidation, corrosion, and premature component failure. Designed for demanding factory floors, the unit safely tolerates maximum working pressures of 16 Bar (232 PSI), ambient room temperatures up to 43°C, and incoming compressed air temperatures reaching 55°C.

The thermal exchange process is driven by modern, low-GWP R513A refrigerant, ensuring environmental sustainability while optimizing the internal cooling phase. An intelligent, zero-loss electronic discharge valve is integrated directly into the system, automatically expelling accumulated condensate from the Approx. 27 kg chassis without releasing valuable pipeline pressure. Integration into existing workshop layouts is streamlined via standardized 3/4" Male threaded connection ports. By prioritizing absolute air purity and maintaining stable internal flow dynamics, this Italian-manufactured unit minimizes pneumatic pressure drops and guarantees continuous air quality across precision applications such as CNC machining, automated tooling, and commercial paint spraying operations.

Key Features & Benefits:

• High-Volume Continuous Air Treatment: Engineered to seamlessly process massive and continuous volumetric flow rates reaching 64.74 CFM (110 m³/h). This robust structural capability allows the dryer to operate flawlessly under heavy pneumatic loads and maximum working pressures up to 16 Bar (232 PSI), making it the ideal central moisture-removal solution for demanding industrial manufacturing lines.

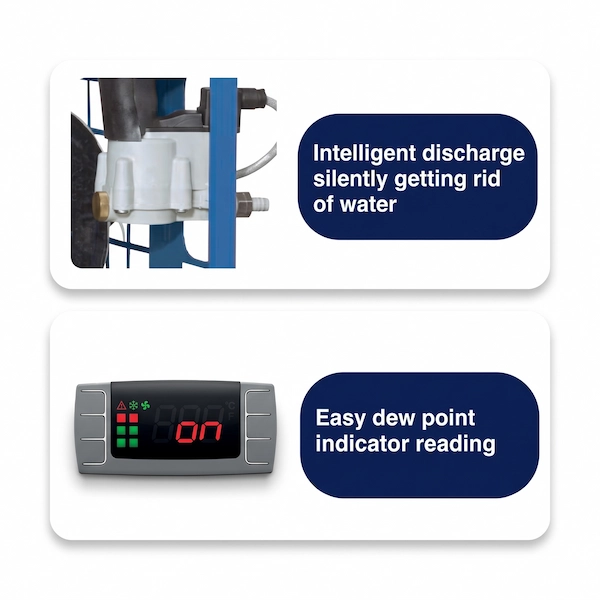

• Constant 3°C Cooling & Condensation: The internal refrigeration circuit safely and reliably cools the compressed air down to a steady 3°C, forcing all suspended ambient vapor to instantly condense into liquid form. Operators can easily monitor this critical thermal process in real-time utilizing the integrated external cooling status indicator dial.

• Intelligent Zero-Loss Condensate Discharge: To prevent any wasteful loss of valuable network pressure, the unit incorporates an advanced, fully automated electronic drain mechanism. This intelligent system silently and efficiently expels gathered water and condensate from the chassis without requiring manual bleeding or operator intervention.

• Extreme Temperature Operational Resilience: Specifically calibrated to thrive in demanding and high-heat factory environments, this unit maintains maximum moisture separation efficiency even when subjected to incoming compressed air temperatures of up to 55°C and ambient workplace room conditions reaching 43°C.

• Energy-Efficient Mechanical Architecture: Despite its high-volume output, the optimized electrical profile draws a remarkably low 580 Watts (0.58 kW) of power. Furthermore, the internal heat exchangers are geometrically designed to allow air passage with minimal flow restriction, actively reducing pneumatic pressure drops and conserving overall mechanical energy across the facility.

• Absolute Protection for Pneumatic Assets: By completely eliminating water droplets and internal moisture, this dryer actively prevents downstream rust and internal corrosion. This fundamentally extends the operational lifespan of your pneumatic tools and guarantees a flawless, dry air supply necessary for precision CNC machining and high-stakes commercial paint spraying operations.

• Eco-Friendly R513A Refrigerant Integration: The internal thermal exchange loop utilizes modern, sustainable R513A refrigerant fluid. This advanced chemical composition expertly balances premium thermal cooling performance with a remarkably low global warming potential (GWP), aligning with modern environmental sustainability standards.

• Compact Chassis for Direct Installation: The highly compact, space-saving structural design is optimized for crowded utility rooms and workshop floors. It features standardized 3/4" Male threaded connection ports that allow maintenance teams to execute a quick, secure, and entirely leak-free integration directly into your existing factory pipeline.

• Premium European Manufacturing Reliability: Proudly built in Italy utilizing superior-quality internal components, this refrigerated dryer is mechanically engineered to sustain its structural integrity and deliver non-stop, high-performance air treatment even under the most rigorous and continuous industrial shift schedules.
