ABAC Screw Compressor, 60HP, 10 Bar, Made in Italy - FORMULA M45

Rotary Screw Air Compressor 60HP

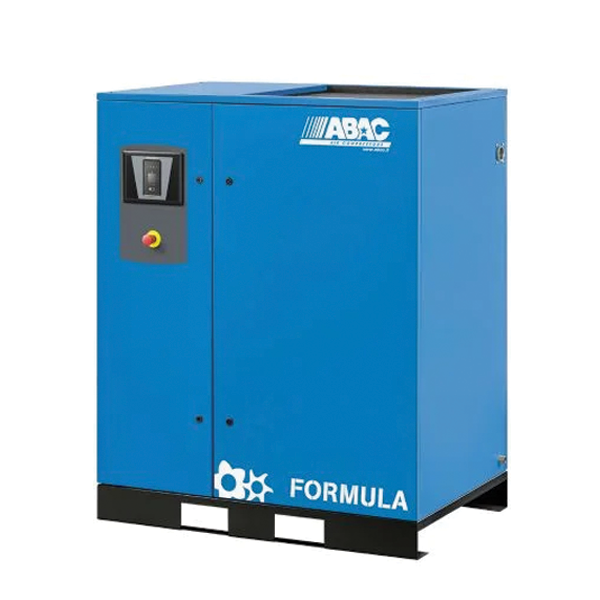

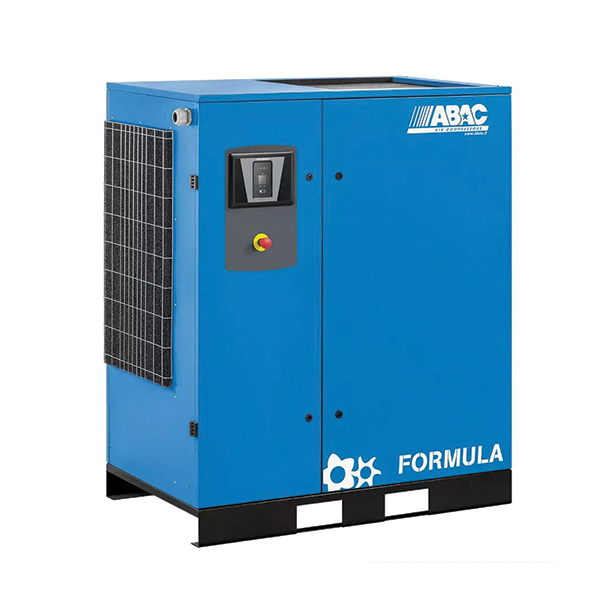

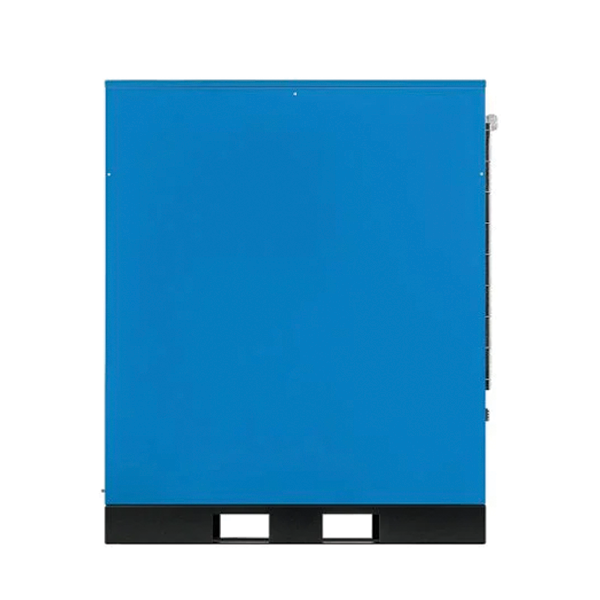

The Abac FORMULA M45 is an industrial-grade, fixed-speed rotary screw air compressor engineered for continuous compressed air generation. Driven by a 45 kW (60 HP) Siemens electric motor with IP55 environmental sealing, this base-mounted unit consistently delivers a Free Air Delivery of 6,420 L/min (226.7 CFM) at a maximum working pressure of 10 Bar (145 PSI). Instead of conventional V-belts, this specific model is constructed with a high-efficiency direct-drive gear transmission, eliminating mechanical slippage and ensuring precise rotational energy transfer directly to the compression element. The compact structure weighs Approx. 630 kg and integrates directly into established factory pipeline setups without requiring an integrated receiver vessel.

To maintain thermal stability across prolonged operational shifts, the internal architecture utilizes a 22-liter oil circulation circuit paired with oversized air and fluid coolers. This precise fluid management system prevents overheating and extends the mechanical life of the rotary screw block in high-temperature environments. Acoustic emissions are effectively suppressed by a highly insulated steel enclosure that restricts sound pressure to 74 dB(A), managed by an advanced microprocessor that actively tracks line pressure, component temperatures, and routine maintenance intervals to ensure non-stop output for automotive and fabrication plants.

Key Features & Benefits:

• High Volume CFM Output Delivery: Delivers a continuous volumetric flow of 6,420 L/min (226.7 CFM) of Free Air Delivery at a constant working pressure of 10 Bar (145 PSI) to power multiple pneumatic systems simultaneously.

• Premium Siemens Motor Integration: Driven by an industrial-grade Siemens 45 kW (60 HP) electric motor featuring IP55 environmental protection, providing the structural endurance required for continuous high-load operations.

• Efficient Direct-Drive Gear Transmission: Features a highly reliable gear transmission mechanism that actively avoids the slippage, friction losses, and tensioning maintenance requirements common to standard belt-driven drive trains.

• Continuous Duty Cycle Architecture: Engineered for constant runtime, utilizing an integrated rotary screw design that inherently avoids the mechanical operational interruptions required by standard industrial piston compressors.

• Intelligent Digital Control Panel: Features an electronic microprocessor dashboard that actively monitors operating line pressure, temperature limits, precise maintenance countdowns, and total running hours.

• Non-Stop 100% Thermal Operational Cycle: Mechanically optimized for uninterrupted runtime without frequent thermal cool-down delays, securing a stable volumetric air supply during extended manufacturing shifts.

• Advanced Internal Cooling Design: Employs high-capacity air and oil heat exchangers paired with an optimized ventilation flow system to maintain internal thermal stability within high-ambient factory environments.

• Quiet-Running Acoustic Enclosure: The specially insulated structural housing maintains a low operational sound pressure of just 74 dB(A), improving workplace safety and allowing installation closer to the pneumatic point of use.

• Generous Internal Fluid Capacity: A massive 22-liter oil capacity provides superior thermal buffering, enhanced internal component cooling, and an extended service lifespan for the rotary screw compression block.

• Versatile Base-Mounted Profile: The compact, vibration-isolated base-mounted chassis integrates cleanly with existing external air receivers, pipeline networks, or centralized factory air setups.

• Fast Maintenance Accessibility: Constructed with highly accessible, wide modular panels that bring routine oil filters, air intake filters, and the separator block within quick reach for standard servicing procedures.

• Multi-Industry Applicability: Mechanically tailored for direct deployment across continuous-duty manufacturing plants, engineering facilities, automotive production lines, CNC machining centers, and fabrication workshops.
