ABAC Screw Compressor, 500 Liters, 15HP, Made in Italy - SPINN 11E

Rotary Screw Compressor 15HP

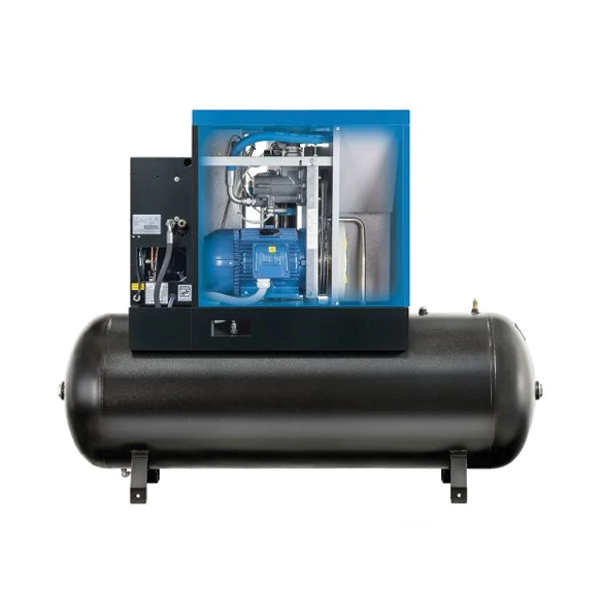

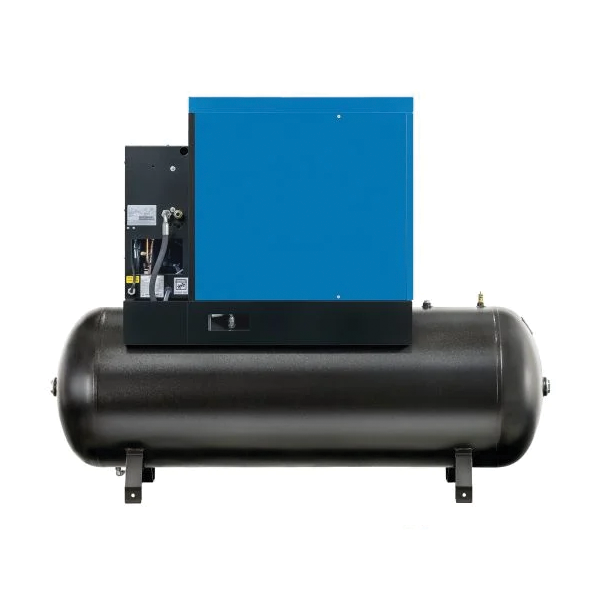

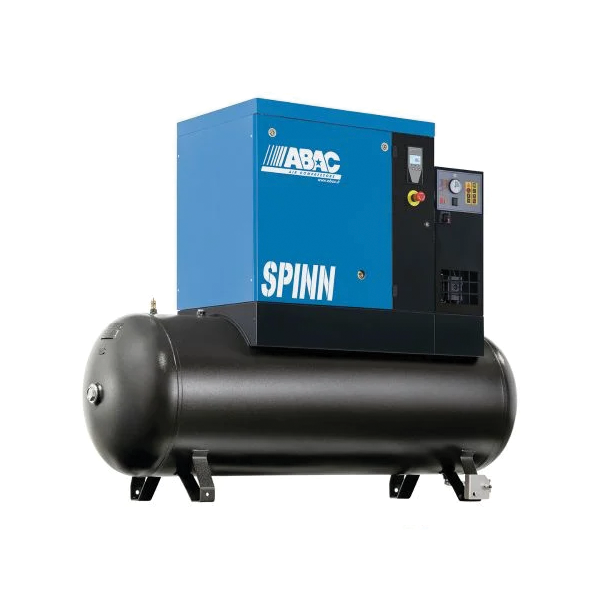

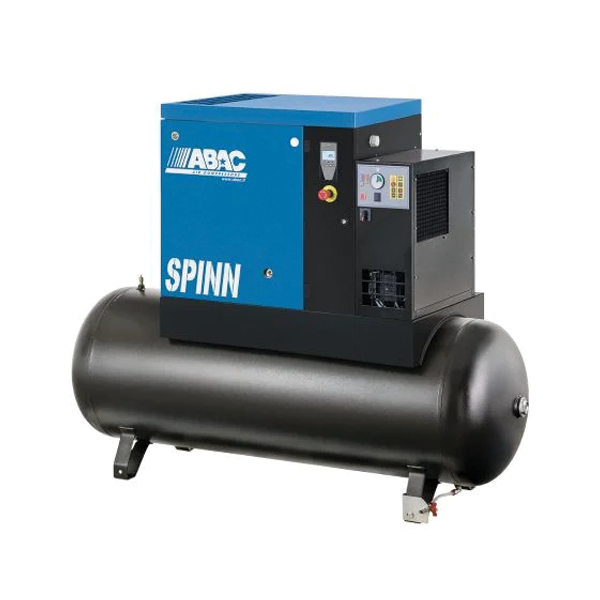

The Abac SPINN 11E 500 is an industrial oil-injected rotary screw air compressor with integrated dryer engineered as an all-in-one workstation for 24/7 continuous operations. Driven by an 11 kW (15 HP) three-phase electric motor, the machine utilizes an optimized rotary screw airend block that delivers 1,416 L/min (50 CFM) of Free Air Delivery at a rated pressure of 10 Bar (145 PSI). The system is structurally engineered directly onto a horizontal 500-liter certified air receiver tank, eliminating external interconnection footprint while achieving a quiet acoustic signature of only 69 dB(A) through sound-attenuating panels.

Thermal control and internal air quality management are facilitated by an integrated refrigerated dryer running on R513A refrigerant and powered by a dedicated 0.581 kW motor. This cooling architecture, paired with an industrial belt-driven transmission and a 3.2-liter oil circulation loop, is calibrated to withstand extreme facility conditions with ambient and air inlet temperatures climbing up to 46°C. Overall operational tracking is managed via an Infologic² microprocessor interface, continuously regulating working hours, line pressures, oil discharge temperatures, and scheduled service intervals across the 315 kg installation.

Key Features & Benefits:

• Full Feature "E" Design Subsystem: Includes a factory-installed, integrated refrigerated air dryer mechanism that removes moisture instantly from the pipeline, protecting downstream air-powered machinery and preventing internal corrosion across pneumatic networks.

• High Volume CFM Output Delivery: Engineered to deliver a reliable 1,416 L/min (50 CFM) of Free Air Delivery (FAD) at a continuous working pressure of 10 Bar, easily powering multiple high-demand pneumatic tools or industrial machinery simultaneously without pressure drops.

• Tank-Mounted Dryer Integration: The refrigerated air dryer is structurally mounted directly on top of the 500-liter air receiver tank alongside the compressor block, creating a pre-piped assembly that eliminates the need for independent floor mounts.

• Continuous Operating Duty Cycle: Specifically optimized for continuous duty cycles without requiring mechanical cool-down stops, preventing system overheating or pressure failures during continuous 24-hour manufacturing processes.

• All-in-One Chassis Architecture: The unified frame design builds air storage, moisture drying, and mechanical compression onto a single 500-liter receiver tank, maximizing usable workshop floor space by eliminating external interconnecting hoses.

• Enhanced Industrial Air End Block Assembly: Utilizes modern rotary screw geometries and precise bearing alignments that yield 30% better energy efficiency and a longer technical lifespan compared to traditional reciprocating piston alternatives.

• Infologic² Digital Monitoring Controller: Equipped with an intuitive electronic microprocessor panel that maps precise pressure metrics, total runtime working hours, automatic temperature warnings, and scheduled maintenance notifications.

• High Ambient Environment Temperature Resistance: Constructed with optimized internal airflow cooling ducts capable of sustaining operational safety and thermal dissipation in harsh climates with ambient and inlet temperatures climbing up to 46°C.

• Advanced Belt-Driven Power Transmission: Features a calibrated V-belt drive configuration that optimizes internal rotational performance and energy transfer from the 15 HP motor to the rotary screw element.

• Quiet Working Noise Levels: The sound-dampening enclosure limits sound pressure emission to only 69 dB(A)—similar to an office air conditioner unit—removing the requirement for costly, dedicated compressor containment rooms.

• Eco-Friendly R513A Refrigerant Integration: Operates utilizing a low-GWP (Global Warming Potential) R513A refrigerant loop within the integrated air dryer, fully adhering to updated industrial greenhouse gas environmental compliance standards.
