ABAC Screw Compressor, 500 Liters, 20HP, Made in Italy - SPINN 15E

Rotary Screw Compressor 20HP

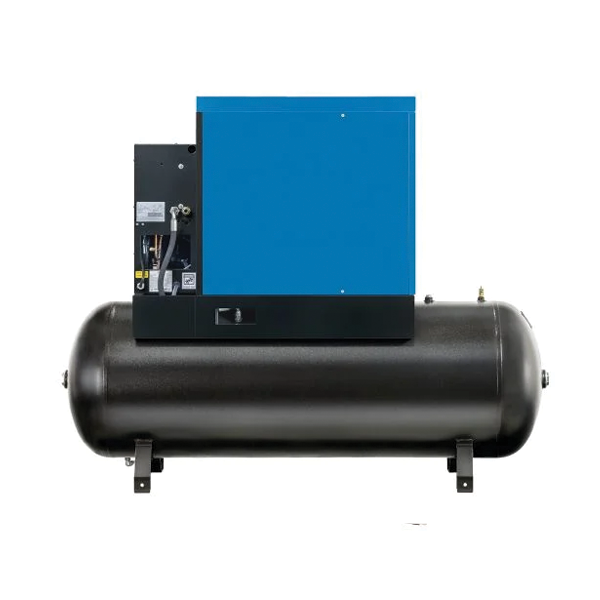

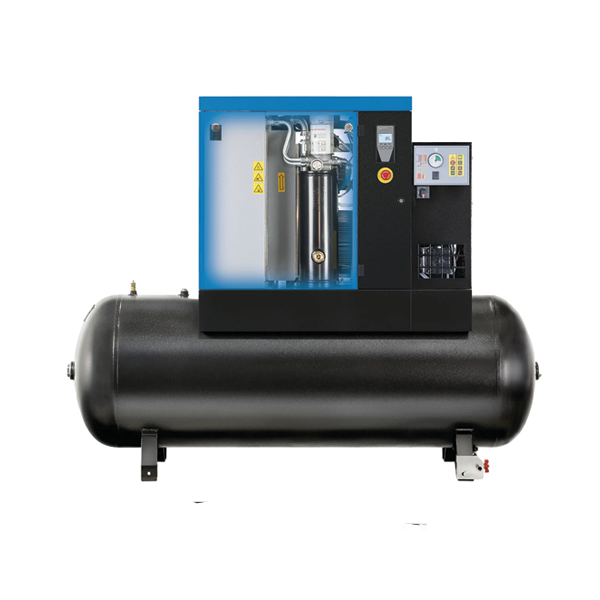

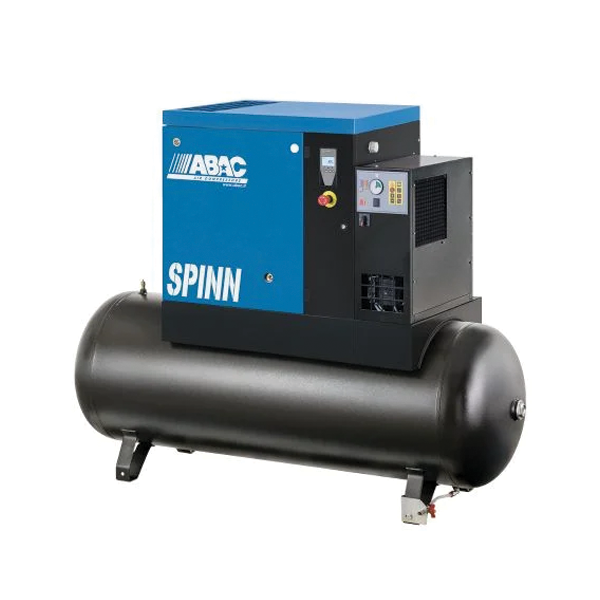

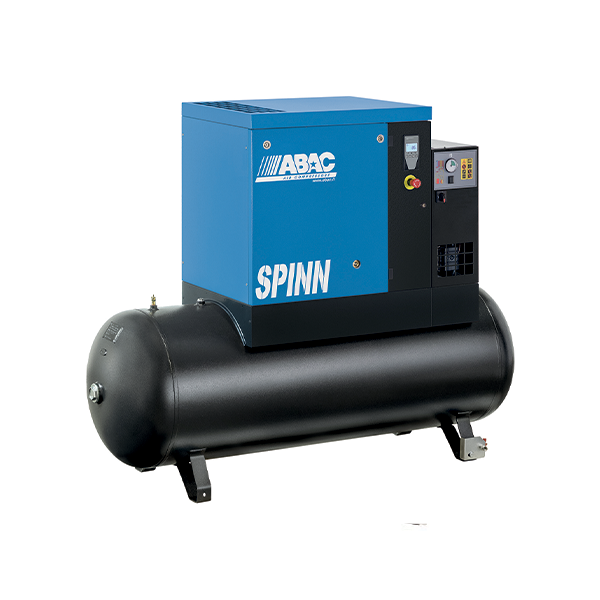

The Abac SPINN 15E 500 is a fixed-speed, oil-injected rotary screw air compressor designed to deliver a continuous, non-pulsating air supply for industrial manufacturing facilities. Powered by a 15 kW (20 HP) three-phase motor, this unit generates a Free Air Delivery of 1,680 L/min (59.3 CFM) at a maximum operating pressure of 10 Bar (145 PSI). The entire compression architecture is mounted directly onto a 500-liter horizontal air receiver tank, providing immediate high-capacity storage while maintaining a controlled acoustic environment with a measured sound level of 71 dB(A).

The system incorporates a factory-installed refrigerated air dryer utilizing R513A gas, driven by a distinct 0.581 kW motor, to actively extract moisture from the pneumatic lines before reaching downstream equipment. Connected via an aligned V-belt drive mechanism and regulated by the Infologic² digital microprocessor, the 330 kg compressor continually monitors internal temperatures, fluid levels, and maintenance schedules. The internal thermal management system, including a 3.2-liter oil circulation circuit, is calibrated to operate safely even when ambient facility temperatures reach 46°C.

Key Features & Benefits:

• Full Feature "E" Design Subsystem: Integrates a factory-installed refrigerated air dryer directly into the primary compressor assembly to condense and eliminate pipeline moisture, preventing internal oxidation and protecting downstream pneumatic equipment.

• High Volume CFM Output Delivery: Delivers a constant volumetric flow of 1,680 L/min (59.3 CFM) of Free Air Delivery at a working pressure of 10 Bar, ensuring sufficient capacity to operate multiple pneumatic tools simultaneously without pressure loss.

• Tank-Mounted Dryer Integration: The air dryer module is securely mounted on top of the 500-liter horizontal pressure vessel alongside the rotary screw block, forming a pre-piped system that eliminates external floor mounts.

• Continuous Operating Duty Cycle: Engineered for uninterrupted 24/7 operating cycles without the need for mechanical cool-down intervals, preventing air flow interruptions during long manufacturing shifts.

• All-in-One Chassis Architecture: The unified frame consolidates air compression, moisture drying, and volumetric storage onto a single 500-liter tank, reducing the overall installation footprint and minimizing external piping requirements.

• Enhanced Industrial Air End Block Assembly: Incorporates advanced rotor profiles and precision bearings to increase mechanical energy conversion by 30% compared to traditional reciprocating compressors, resulting in a longer operational lifespan.

• Infologic² Digital Monitoring Controller: Features an electronic microprocessor interface that continuously displays real-time pressure metrics, operating hours, fluid temperatures, and automated preventative maintenance alerts.

• High Ambient Environment Temperature Resistance: Outfitted with an optimized internal cooling layout and high-efficiency heat exchangers capable of maintaining thermal stability when ambient and inlet temperatures reach 46°C.

• Advanced Belt-Driven Power Transmission: Utilizes a precisely aligned V-belt drive configuration that optimizes internal rotational performance and transfers mechanical power efficiently from the 20 HP electric motor to the compression element.

• Quiet Working Noise Levels: The acoustically insulated structural enclosure dampens mechanical sound pressure down to 71 dB(A), allowing the equipment to be installed directly adjacent to production areas without requiring dedicated compressor rooms.

• Eco-Friendly R513A Refrigerant Integration: Employs a low-GWP R513A refrigerant within the air dryer circuit to condense moisture effectively while fully adhering to current industrial greenhouse gas environmental compliance standards.
