ABAC Screw Compressor, 30HP, 10 Bar, Made in Italy - FORMULA 22

Rotary Screw Compressor 30HP

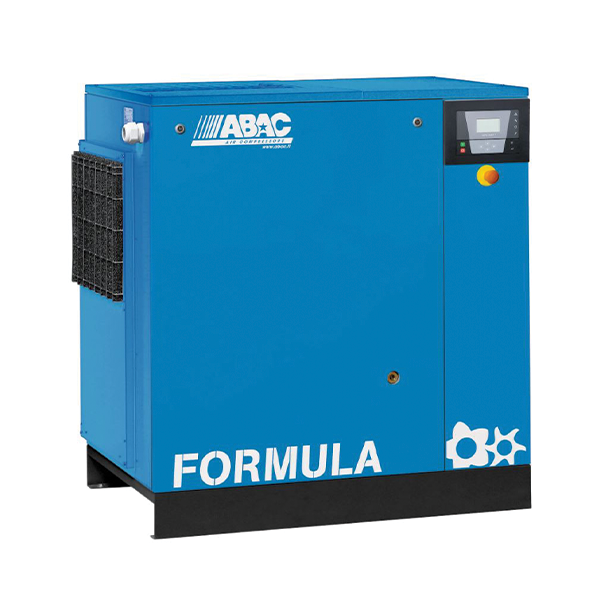

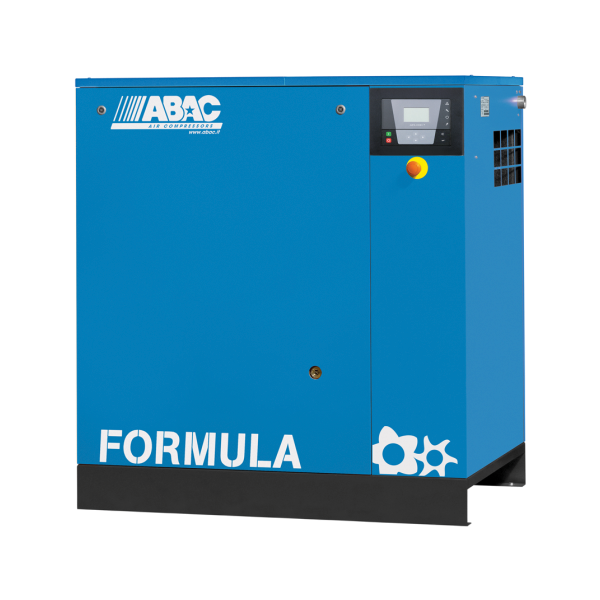

The Abac FORMULA 22 is a fixed-speed, oil-injected rotary screw air compressor engineered for continuous compressed air production. Powered by a 22 kW (30 HP) electric motor, this base-mounted unit generates a Free Air Delivery of 3,240 L/min (114.4 CFM) at a constant working pressure of 10 Bar (145 PSI). Designed without an integrated storage tank, the 377 kg chassis integrates directly into existing external air receiver setups, facilitating continuous manufacturing cycles without pressure fluctuations.

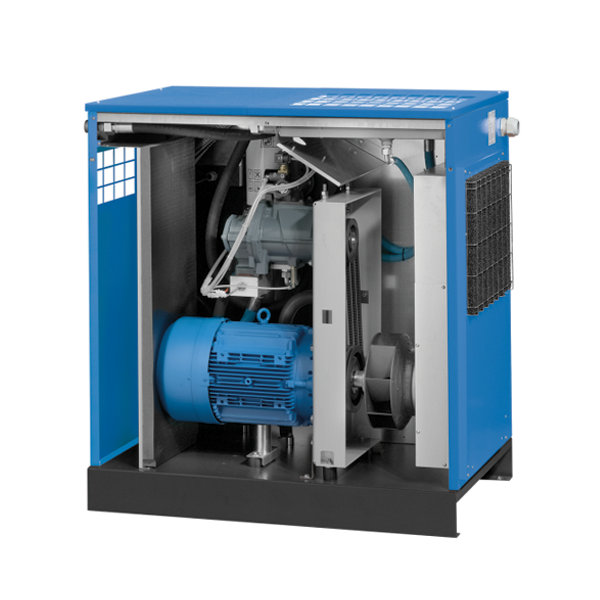

Internal mechanical energy transfer is handled by an advanced V-Belt drive equipped with an automatic tensioning mechanism, which prevents slippage and maintains strict rotational alignment. Thermal stability is preserved through oversized cooling radiators and fans calibrated for ambient and inlet temperatures up to 40°C. The entire compression mechanism is enclosed within a sound-dampened steel cabinet that restricts acoustic output to 70 dB(A), operated via a centralized digital controller that tracks running hours and diagnostic parameters.

Key Features & Benefits:

• High Volume CFM Output Delivery: Delivers a constant volumetric flow of 3,240 L/min (114.4 CFM) of Free Air Delivery at a working pressure of 10 Bar, ensuring sufficient capacity to operate multiple pneumatic tools or automated machinery simultaneously.

• Continuous Operating Duty Cycle: Engineered for uninterrupted 100% continuous runtime cycles utilizing a rotary screw architecture that eliminates the mechanical cool-down intervals required by standard reciprocating piston compressors.

• Intelligent Digital Control Panel: Features an electronic microprocessor dashboard that actively monitors operating pressure metrics, fluid temperature limits, total running hours, and precise maintenance countdowns to facilitate proactive servicing.

• Climate-Optimized Thermal Endurance: Constructed to maintain efficient internal component cooling and operational safety in industrial environments, sustaining full nominal mechanical performance in ambient temperatures reaching up to 40°C.

• Fast Maintenance Accessibility: Built with modular removable panels on all sides of the cabinet, placing the internal oil filters, air intake filters, and transmission belts within immediate physical reach for routine servicing procedures.

• Advanced Internal Cooling Design: Employs an integrated high-flow cooling fan paired with oversized heat exchange radiators to ensure stable thermal regulation across the fluid and air circuits during extended continuous shifts.

• Low Noise Acoustic Isolation: Encased in a sound-absorbent steel chassis and mounted on specialized internal anti-vibration dampers, keeping operational sound pressure down to 70 dB(A) and removing the requirement for isolated containment rooms.

• Base-Mounted Configuration Architecture: The flat-base layout is specifically engineered without an attached pressure vessel, allowing direct pneumatic integration with existing standalone air receivers or established compressed air factory networks.

• Automatic Belt-Tensioning Transmission: Equipped with an automated transmission adjustment mechanism that maintains optimal V-belt alignment, prevents frictional slippage, extends drive component lifespan, and reduces preventative mechanical service intervals.

• Industrial Application Suitability: Calibrated for continuous-duty applications across diverse industrial sectors, including high-volume manufacturing facilities, CNC machining centers, automotive production lines, and continuous metal fabrication workshops.
