ABAC Screw Compressor, 50HP, 10 Bar, Made in Italy - Formula 37

Rotary Screw Air Compressor 50HP

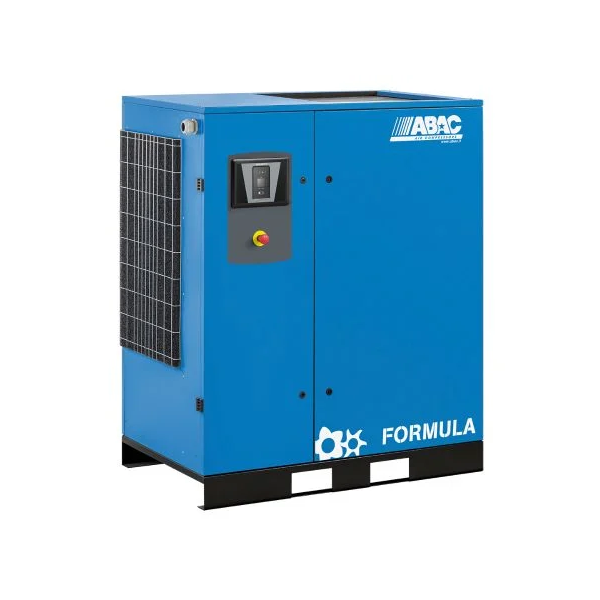

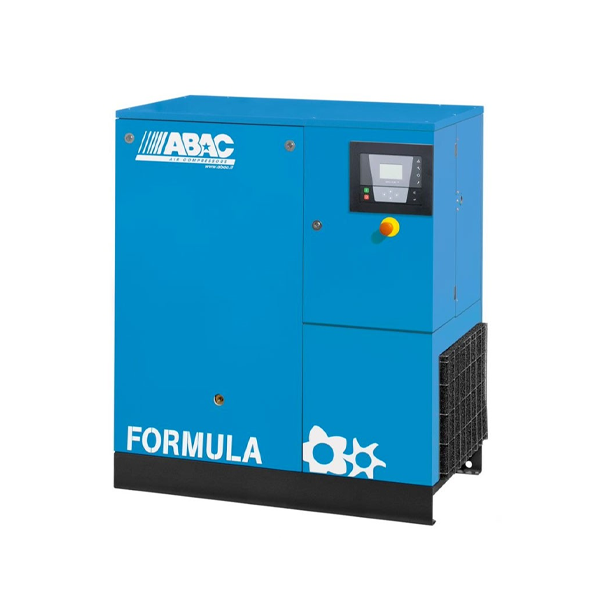

The Abac FORMULA 37 is a high-performance, fixed-speed rotary screw air compressor engineered for continuous industrial compressed air production. Powered by a 37 kW (50 HP) Siemens electric motor featuring IP55 environmental protection, this base-mounted machine generates a constant Free Air Delivery of 5,460 L/min (192.8 CFM) at a stable working pressure of 10 Bar (145 PSI). Unlike traditional belt-driven systems, this model utilizes an advanced direct-drive gear transmission mechanism, entirely eliminating mechanical slippage and frictional energy losses to ensure optimal rotational power transfer directly to the compression block. Designed without a storage tank, the 600 kg frame integrates seamlessly into existing factory piping networks utilizing a 1 1/4" threaded air connector.

To sustain uninterrupted manufacturing operations, the thermal management architecture relies on a 22-liter internal fluid capacity that provides exceptional thermal buffering across the rotary screw elements. Heat dissipation is further optimized by high-capacity air and oil coolers, allowing continuous functionality in challenging industrial environments. The internal compression unit is enclosed within a highly insulated acoustic canopy that restricts sound pressure levels to 73 dB(A), managed centrally by an intelligent electronic control dashboard. This microprocessor constantly tracks system pressure, fluid temperatures, and maintenance intervals, securing safe, non-stop volumetric airflow for CNC machining centers, fabrication workshops, and large-scale assembly lines.

Key Features & Benefits:

• High Volume CFM Output: Delivers a continuous volumetric flow of 5,460 L/min (192.8 CFM) of Free Air Delivery at a working pressure of 10 Bar (145 PSI) to power multiple pneumatic systems simultaneously.

• Premium Siemens Motor Integration: Driven by an industrial-grade Siemens 37 kW (50 HP) electric motor featuring IP55 environmental protection, providing the structural endurance required for continuous high-load operations.

• Efficient Direct-Drive Gear Transmission: Features a highly reliable gear transmission mechanism that actively avoids the slippage, friction losses, and tensioning maintenance requirements common to standard belt-driven drive trains.

• Continuous Duty Cycle Architecture: Engineered for continuous runtime, utilizing an integrated rotary screw design that avoids the operational interruptions required by standard industrial piston compressors.

• Intelligent Digital Control Panel: Features an electronic microprocessor dashboard that actively monitors operating line pressure, temperature limits, precise maintenance countdowns, and total running hours.

• Non-Stop 100% Thermal Operational Cycle: Mechanically optimized for uninterrupted runtime without the frequent thermal cool-down delays, securing a stable volumetric air supply during extended manufacturing shifts.

• Advanced Internal Cooling Design: Employs high-capacity air and oil heat exchangers paired with an optimized ventilation flow system to maintain internal thermal stability within high-ambient factory environments.

• Quiet-Running Acoustic Enclosure: The specially insulated structural housing maintains a low operational sound pressure of just 73 dB(A), improving workplace safety and allowing installation closer to the pneumatic point of use.

• Generous Internal Fluid Capacity: A 22-liter oil capacity provides superior thermal buffering, enhanced internal component cooling, and an extended service lifespan for the rotary screw compression block.

• Versatile Base-Mounted Profile: The compact, vibration-isolated base-mounted chassis integrates cleanly with existing external air receivers, pipeline networks, or centralized factory air setups.

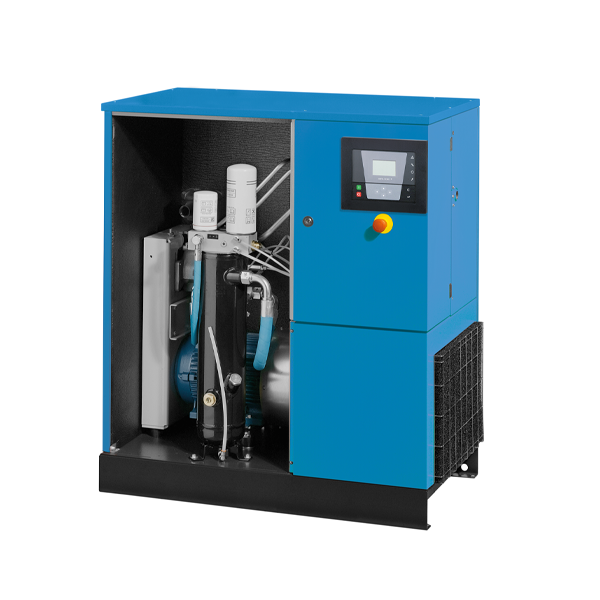

• Fast Maintenance Accessibility: Constructed with highly accessible, wide modular panels that bring routine oil filters, air intake filters, and the separator block within quick reach for standard servicing procedures.

• Multi-Industry Applicability: Mechanically tailored for direct deployment across continuous-duty manufacturing plants, engineering facilities, automotive production lines, CNC machining centers, and fabrication workshops.
