ABAC Screw Compressor, 20HP, 10 Bar, Made in Italy - FORMULA 15

Rotary Screw Air Compressor 20HP

The Abac FORMULA 15 is a fixed-speed rotary screw air compressor engineered for continuous compressed air production. Driven by a 15 kW (20 HP) three-phase motor at 380 V / 60 Hz, this base-mounted machine generates a Free Air Delivery of 2,110 L/min (74.5 CFM) at a stable working pressure of 10 Bar (145 PSI). Designed without an onboard receiver tank, the 271 kg chassis connects directly into existing factory air storage networks, ensuring a constant volumetric supply for demanding pneumatic machinery, CNC centers, and automated production lines.

Mechanical power is transferred via an advanced V-Belt drive incorporating an automatic tensioning system that optimizes rotational alignment and prevents frictional energy loss. The internal thermal management system maintains operational stability in extreme industrial climates with ambient temperatures reaching 46°C. Sound pressure is controlled by an insulated steel enclosure, restricting acoustic output to 67 dB(A), while an intelligent digital controller continuously monitors operating pressure, temperature limits, and maintenance intervals to sustain reliable non-stop performance.

Key Features & Benefits:

• High Volume CFM Output Delivery: Delivers a reliable 2,110 L/min (74.5 CFM) of Free Air Delivery (FAD) at a working pressure of 10 Bar, providing a continuous flow of compressed air to power multiple high-demand pneumatic tools simultaneously.

• Direct-Drive Screw Air End Architecture: Incorporates a precision-machined rotary screw air end block that optimizes air compression cycles, reducing internal mechanical resistance and maximizing the volumetric output per kilowatt of consumed power.

• Advanced Electronic Controller: Utilizes a highly responsive digital processing unit that actively regulates the compression stages, managing power distribution to the electric motor based on real-time pneumatic resistance.

• Air-Cooled Design with IP55 Motor Protection: Features an industrial IP55-rated electric motor enclosure that blocks dust ingress and water spray, complemented by a specialized air-cooling mechanism that dissipates stator heat effectively.

• Long Service Intervals & Low-Maintenance Construction: Engineered with high-grade synthetic sealing materials and durable bearing assemblies that deliberately extend the operational timeframe between required preventative maintenance tear-downs.

• Continuous Duty Cycle: Engineered for 100% continuous runtime, utilizing a fluid-injected rotary screw design that completely avoids the frequent mechanical cool-down periods required by standard reciprocating piston compressors.

• Intelligent Control Panel Integration: Features an electronic dashboard that actively monitors critical operational metrics including line pressure, temperature limits, running hours, and maintenance countdowns to facilitate proactive servicing.

• Climate-Optimized Operational Safety: Calibrated to maintain efficient internal component cooling and absolute operational safety in managed regional environments, sustaining full nominal performance in high temperatures up to 46°C.

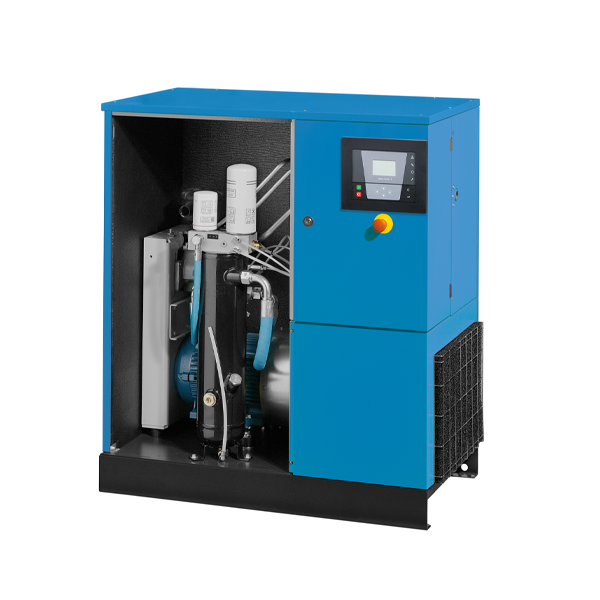

• Fast Maintenance Accessibility: Built with modular removable panels on all structural sides, placing the internal oil filters, air intake filters, and transmission belts within immediate physical reach for routine servicing procedures.

• Advanced Cooling Fan & Radiator Design: Employs a high-capacity axial cooling fan paired with oversized aluminum radiators to ensure stable thermal regulation across the fluid circuits in high ambient workplace environments.

• Low Noise Vibration Isolation: Encased in a sound-absorbent steel cabinet and mounted on specialized internal anti-vibration dampers, keeping noise levels strictly down to 67 dB(A) to remove the need for compressor containment rooms.

• Base-Mounted Configuration Layout: The flat-base frame is structurally suitable for direct pneumatic integration with an existing factory air receiver or a completely independent compressed air pipeline installation.

• Automatic Belt-Tensioning Transmission: Equipped with an intelligent automatic transmission adjustment system that maximizes V-belt life, blocks frictional slippage efficiency losses, and simplifies preventative drive-train service tasks.

• Broad Industrial Application Suitability: Mechanically scaled for direct deployment within high-demand manufacturing facilities, engineering workshops, CNC machining centers, automotive production lines, and continuous-duty fabrication plants.
