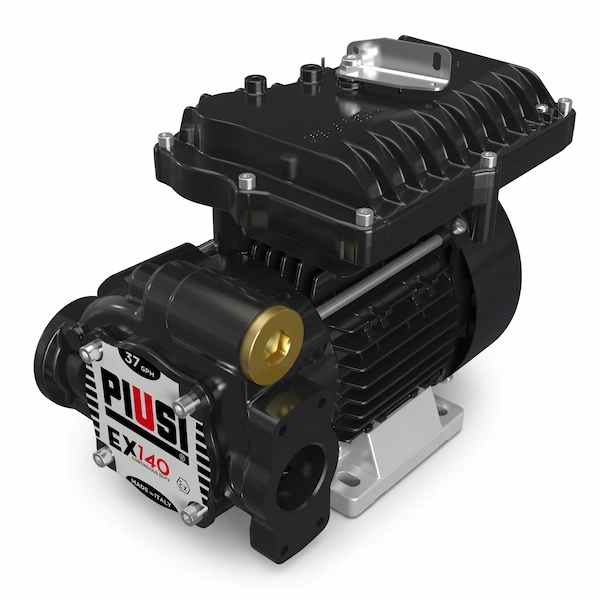

PIUSI Fuel Transfer Pump, 920W, 140 L/MIN, Made in Italy - F00395030

Fuel Pump EX140

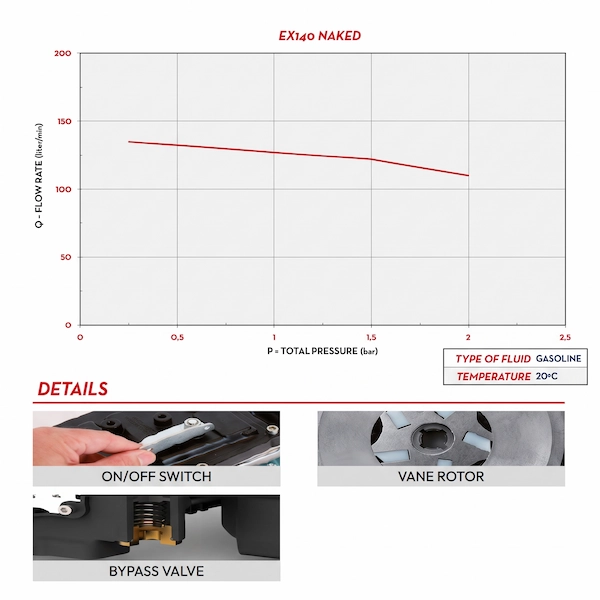

The PIUSI EX140 AC fuel transfer pump (F00395030) represents a premium fluid handling solution engineered specifically for high-volume industrial refueling operations. Proudly manufactured in Italy, this electric pump is driven by a heavy-duty 920 W motor. It is precisely calibrated to deliver a highly efficient fluid transfer rate of 140 L/MIN (37 GPM), providing rapid and secure dispensing of gasoline, diesel, and kerosene. Designed to meet the demanding requirements of logistics, mining, and fleet management sectors, the pump operates with remarkable mechanical stability at 1750 RPM while drawing a maximum current of just 4 Amperes. The integration of oversized 1 1/4" BSP connection ports ensures continuous, high-volume fluid dynamics with minimal flow restriction, optimizing the overall refueling cycle for extensive commercial operations.

Constructed to ensure long-term durability in challenging environments, the core architecture features a robust cast iron body, a sintered steel rotor, and specialized technopolymer vanes. To manage internal system pressures effectively during continuous use, the unit is equipped with a highly responsive built-in bypass valve. Furthermore, the pump offers exceptional plumbing adaptability, supporting a maximum horizontal suction distance of 6 meters and a vertical lift of up to 4 meters when configured with a non-return valve. Complete with integrated thermal protection to safeguard the motor during extended operational shifts, this ATEX/IECEx-certified Italian pump blends top-tier mechanical craftsmanship with advanced safety protocols for reliable, high-throughput fluid management.

Key Features & Benefits:

• High-Volume Fluid Transfer: Engineered to process a continuous fluid output of 140 L/MIN (37 GPM), significantly reducing downtime for large-scale fleet refueling and ensuring rapid dispensing operations across various commercial sectors.

• Heavy-Duty Motor Architecture: Powered by a highly reliable 920 W electric motor that operates at a steady 1750 RPM. This stable mechanical configuration ensures consistent torque and high-speed fluid movement while maintaining a low maximum current draw of 4 Amperes.

• Multi-Fluid Compatibility: Specifically designed and certified to safely dispense a variety of highly combustible fluids, providing versatile refueling capabilities for Gasoline, Diesel, and Kerosene within a single mechanical unit.

• Advanced Rotor & Vane Design: The internal pumping mechanism features a highly durable sintered steel rotor combined with resilient technopolymer vanes. This advanced engineering reduces internal friction and ensures consistent fluid delivery over an extended operational lifespan.

• Integrated Bypass Valve System: Equipped with an internal bypass mechanism that automatically regulates and stabilizes system pressure during operation, preventing mechanical overload and protecting the integrity of both the pump and the connected dispensing lines.

• Oversized 1 1/4" Connection Ports: Designed with large 1 1/4" BSP inlet and outlet threads to facilitate maximum fluid passage. This expanded port size significantly reduces hydraulic turbulence and flow restriction compared to standard 1" pumps, enabling faster fueling cycles.

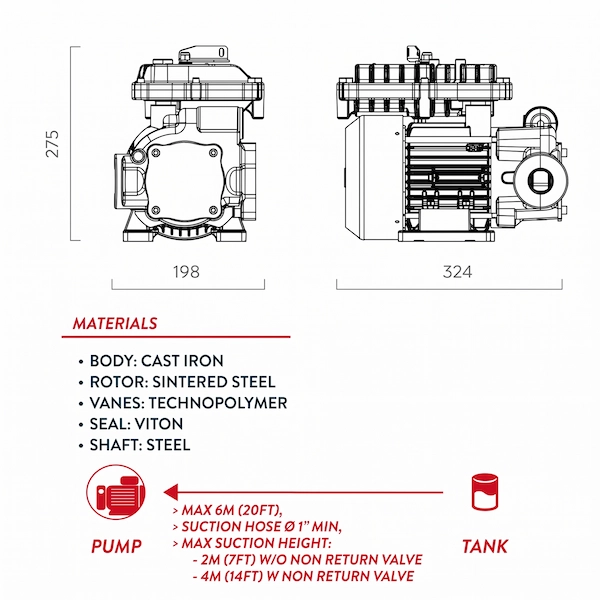

• Flexible Suction Capabilities: Offers highly adaptable installation parameters, supporting a maximum horizontal suction distance of 6 meters. Vertically, it can lift fluids up to 2 meters independently, which extends to 4 meters when equipped with a non-return valve.

• Thermal Overload Protection: The motor is fully safeguarded by built-in thermal protection technology. This crucial safety feature automatically interrupts power during extended operational cycles to prevent overheating and mechanical failure.

• Premium Italian Manufacturing: Constructed in Italy utilizing a heavy-duty cast iron body, a solid steel shaft, and high-quality Viton seals. This top-tier craftsmanship ensures exceptional resistance to wear and strict compliance with European industrial safety standards.
