Hand Pallet Truck

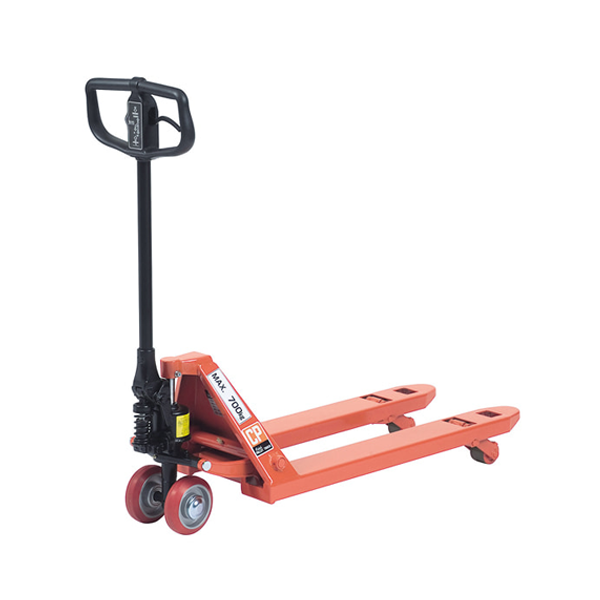

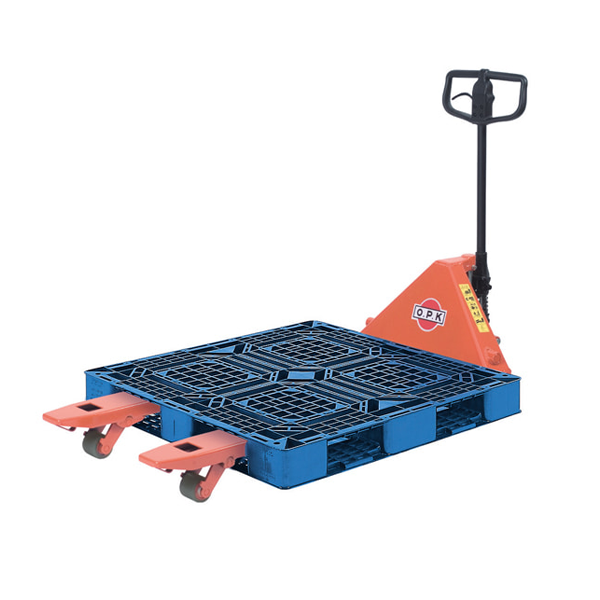

The OPK CP-25S-107 Manual Hand Pallet stands out as a premium choice for fast-paced warehouse and industrial handling operations, offering a unique balance between Japanese-grade engineering precision and robust durability. Built to tackle the demands of busy production lines, warehouses, and loading zones, this unit combines an industrial-grade 2.5 Ton capacity with a highly sealed hydraulic system, ensuring smooth, controlled lifting and lowering even under demanding conditions.
Its shock-prevention lowering valve absorbs impact to protect both the goods and operator, while the ergonomic resin handle and aluminum core steering wheel improve operator comfort and directional agility. A key highlight is the exclusive OPK-designed neutral lever control system, which eliminates the need for manual adjustments during lifting, lowering, and neutral positioning enhancing workflow efficiency and reducing effort.
The reinforced high-strength steel forks are shaped for long-term durability, allowing reliable use over extended operation periods. Meanwhile, the low rolling resistance wheels and lightweight maneuverable chassis ensure effortless transport across tight or crowded spaces. Altogether, the CP-25S-107 offers a streamlined, user-centric solution for heavy-load transfers where stability, reliability, and speed are critical.
• Heavy-Duty 2.5 Ton Capacity: Supports loads up to 2.5 Ton (2500 kg), ideal for intensive industrial and warehouse operations.
• High-Strength Steel Forks: Thick, reinforced forks with tapered entry allow smooth pallet access and long-term durability.
• Shock-Prevention Lowering Valve: Absorbs impact during lowering to protect goods and ensure safer handling.
• Integrated Valve Cleaning Mechanism: Maintains internal hydraulic valve integrity and simplifies routine maintenance.
• Ergonomic Resin Handle: Lightweight, durable handle provides comfortable grip and precise control during operation.
• Aluminum Core Steering Wheel: Reduces overall weight while improving maneuverability and steering response.
• Neutral Lever Operation System: Exclusive OPK control design enables smooth lifting, neutral, and lowering functions.
• Seal-Free Hydraulic Pump: Advanced hydraulic system delivers long service life with minimal maintenance requirements.
• Smooth and Stable Lifting Action: Ensures controlled lifting and lowering for improved operational safety.
• Low Rolling Resistance Wheels: Enhances movement efficiency even under full load conditions.
• Warehouse pallet loading and unloading
• Retail stores and logistics distribution centers
• Manufacturing plants and production lines
• Transport and material handling operations requiring durable hand pallet trucks
• OPK hydraulic hand pallet truck CP-25S-107
• Wheels set (pre-installed)
• Operator’s manual
| Model | CP-25S-107 |
|---|---|
| Capacity | 2.5 Ton (2500 kg) |
| Fork Length | 1070 mm |
| Forks Outer Width | 520 mm |
| Fork Inner Width | 220 mm |
| Fork Height Range | 80–200 mm |
| Overall Length | 1480 mm |
| Overall Height | 1170 mm |
| Steering Wheel Diameter | 180×60 mm |
| Load Wheel Diameter | 80×73 mm |
| Net Weight | 82 kg |
| Country of Origin | Japan |
