Hand Pallet Truck

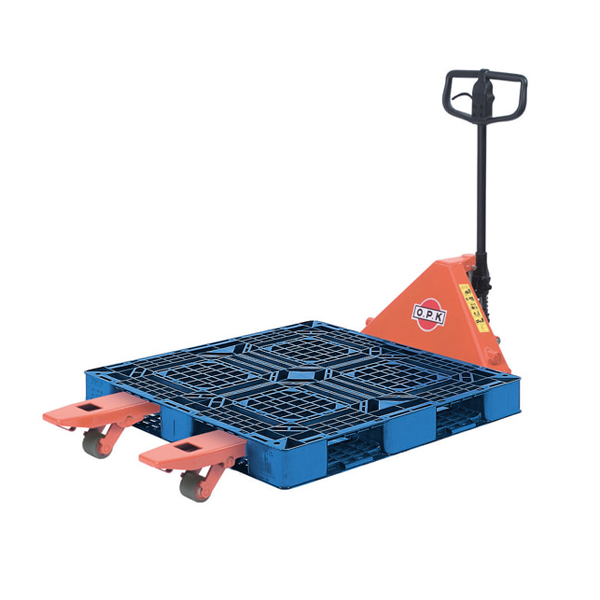

Built with Japanese-quality engineering and designed for high-demand industrial logistics, the OPK CP-30S-107 Hydraulic Hand Pallet Truck supports up to 3 tons (3000 kg) and features a reinforced OPK hydraulic pump for long-term use with minimal leakage, along with standard fork dimensions of 1070 mm x 520 mm compatible with logistics pallets for stable and efficient load movement in tight warehouse environments. To ensure smooth transitions during lifting, lowering, and neutral positioning, it includes an exclusive OPK neutral lever control, shock-prevention safety valve, and lightweight ergonomic resin handle all integrated into a durable steel frame with sealed bearings for reliable performance, effortless handling, and reduced maintenance over extended daily operations.
• Standard Fork Dimensions: 1070 mm length × 520 mm width ensure full compatibility with standard pallets used in warehouses and logistics operations.
• Reinforced OPK Hydraulic Pump: Features OPK’s no-packing design for extended service life and consistent hydraulic performance.
• Fast Lifting System: Reaches full lifting height quickly with minimal operator effort, improving handling efficiency.
• Ergonomic Resin Handle: Lightweight yet strong handle provides comfortable grip and precise control during daily use.
• OPK Neutral Lever Control: Smooth and reliable lever operation enables seamless lifting, neutral, and lowering functions with or without load.
• Load-Check Safety Valve: Prevents overload during lifting to protect both the operator and the hydraulic system.
• Built-In Valve Cleaning Device: Maintains optimal internal valve performance and simplifies routine maintenance.
• Sealed Bearings Design: Reduces maintenance needs while ensuring smooth rolling and long operational life.
• Durable Steel Frame Construction: Heavy-duty steel structure delivers stability and resistance to deformation under continuous use.
• Efficient Maneuverability: Optimized wheel configuration allows easy movement even in narrow aisles and tight spaces.
• Warehouses and logistics operations
• Retail and distribution centers
• Manufacturing and production facilities
• Industrial pallet transfer and material handling tasks
• OPK CP-30S-107 hydraulic hand pallet truck
• Wheels set (pre-installed)
• Operator’s manual
| Model | CP‑30S‑107 |
|---|---|
| Capacity | 3 Ton (3000 kg) |
| Fork Length | 1070 mm |
| Fork Outer Width | 520 mm |
| Fork Inner Width | 180 mm |
| Fork Height Range | 85 – 205 mm |
| Overall Length | 1480 mm |
| Overall Height | 1170 mm |
| Steering Wheel (Dia × W) | 180 × 60 mm |
| Load Wheel (Dia × W) | 80 × 73 mm |
| Net Weight | Approx. 100 kg |
| Country of Origin | Japan |
