Hand Pallet Truck

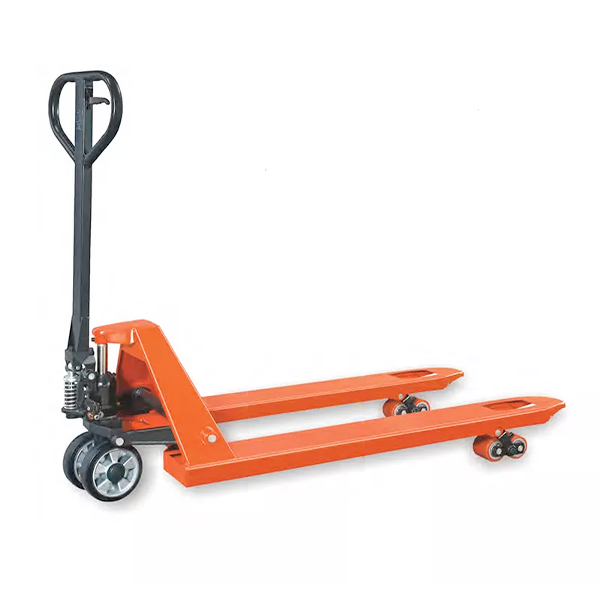

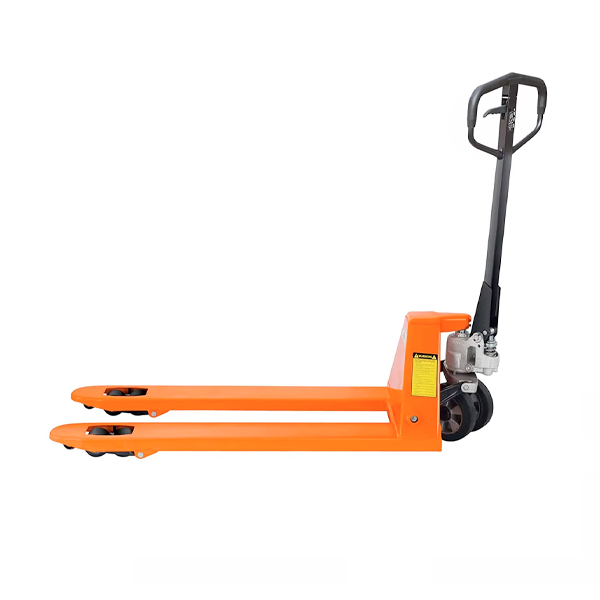

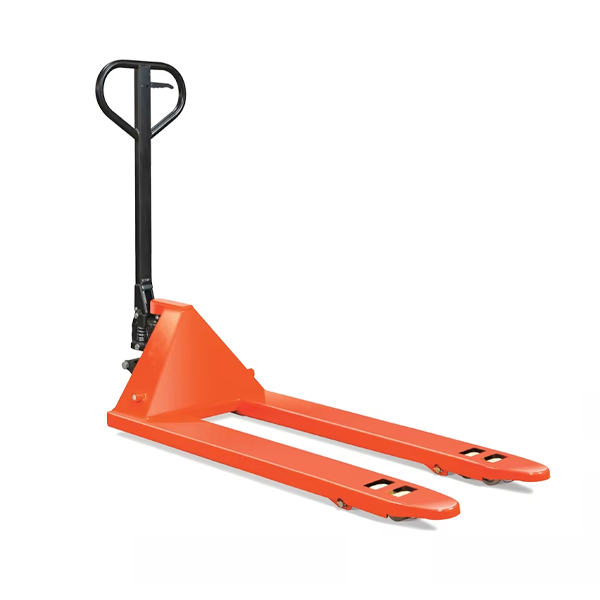

The HUGO HG‑AC5.0 Hydraulic Hand Pallet Truck is purpose‑built for demanding industrial environments where maximum lifting power and reliability are essential. With a 5 Ton (5000 kg) capacity, it easily moves large pallets, heavy crates, and bulk materials across warehouses, factories, and logistics centers. This Manual Hand Pallet Truck features a precision hydraulic system that delivers controlled lifting and lowering with minimal effort. The reinforced 4 mm steel forks and bottom stiffener frame ensure durability, while the PU wheels and climbing wheels enhance maneuverability on uneven floors.
An ergonomic handle with rubber coating provides a secure, comfortable grip for operators, and the integrated double‑seal pump prevents hydraulic leaks. Whether you need a Hand Pallet Truck, Hand Pallet Trolley, or Manual Hand Pallet Truck for your facility, the HG‑AC5.0 delivers top performance with long‑term value. Upgrade your workflow with trusted tools from our [Hand Pallet Trucks] and [Lifting & Material Handling] collections — engineered for smooth transport, safe lifting, and time-saving performance.
• High Load Capacity: Supports up to 5 Ton (5000 kg) for heavy industrial applications.
• Reinforced Steel Forks: 4 mm thick steel construction with bottom stiffener for maximum strength.
• Quick-Lift Hydraulic System: Effortless lifting with integrated overload protection for safety.
• Ergonomic Rubber Handle: Comfortable grip for hot and cold working conditions.
• Double-Layer Seal System: Prevents oil leakage and ensures long-term reliability.
• Integrated Hydraulic Pump: Stable lifting speed and high efficiency under continuous use.
• Climbing Wheels: Assist in overcoming small obstacles and ramps with ease.
• Polyurethane Wheels: Quiet operation with excellent floor protection and abrasion resistance.
• Warehouses & distribution centers
• Industrial workshops & manufacturing plants
• Construction material transport areas
• Retail storage and logistics operations
• Hydraulic Hand Pallet Truck
• Wheels Set (Pre-installed)
• User Manual
| Model | HG‑AC5.0 |
|---|---|
| Capacity | 5 Ton (5000 kg) |
| Min. Fork Height | 80 mm |
| Max. Fork Height | 200 mm |
| Fork Width | 685 mm |
| Fork Length | 1220 mm |
| Loading Wheel Size | 80×70 mm |
| Steering Wheel Size | 180×50 mm |
| Wheel Material | Nylon / Polyurethane |
| Net Weight | 80 kg |
| Country of Origin | China |
