Diesel Water Pump

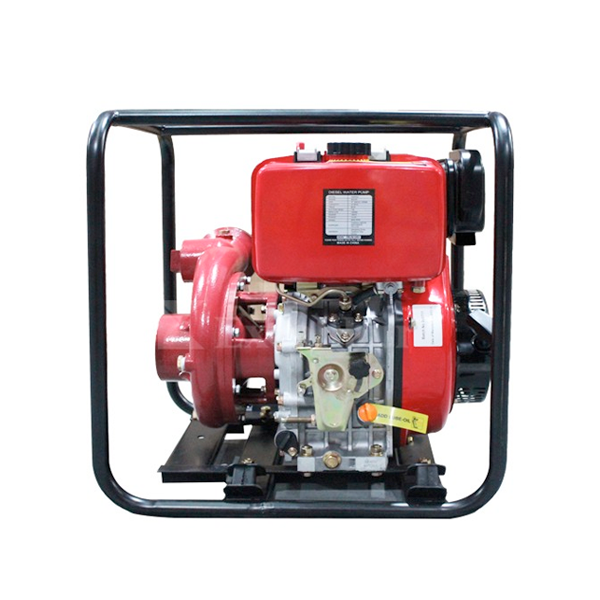

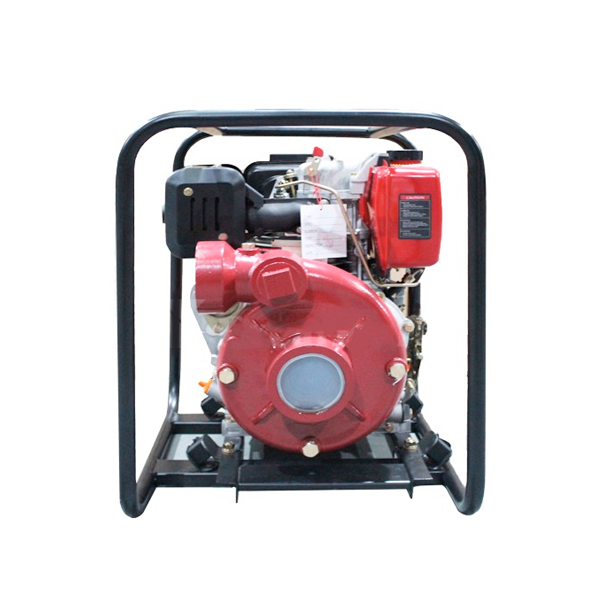

EXCALIBUR SHP100DI – High Pressure Diesel Water Pump 4″, 13HP with Electric Start When large volumes of water need to be moved quickly and reliably, the EXCALIBUR SHP100DI diesel water pump delivers the performance and durability required by professionals. Powered by a 13HP S192F(E) diesel engine, it provides consistent high-pressure output with fuel efficiency and low maintenance. This model features a 4-inch suction and delivery port and achieves a maximum head of 55 meters, making it suitable for irrigation, construction sites, flood control, and emergency water drainage. The pump is self-priming and equipped with a ceramic-carbon mechanical seal for enhanced durability and leak resistance under pressure. Built with a cast iron body and impeller, the SHP100DI withstands heat and heavy-duty usage. The vibration-absorbing rubber mount protects the motor during continuous operation, while the dual starting system (electric/manual) ensures convenience in any condition. A 5.5-liter fuel tank allows longer operating hours in the field, and its compact frame ensures easy transport. Explore more from our [Diesel Water Pumps] and [Gasoline Water Pumps] categories. Key Features & Benefits: 13HP Diesel Power: Delivers powerful and steady performance with low fuel use. 4-Inch Inlet/Outlet: Large volume water transfer capability (120 m³/h). High Pressure Head: Up to 55 meters for long-distance and elevation pumping. Self-Priming Centrifugal Design: Easy startup without external priming. Cast Iron Pump & Impeller: Withstands wear, heat, and continuous use. Mechanical Seal System: Ceramic-carbon for longer seal life. Electric + Manual Start: Start engine with button or pull cord as backup. Compact & Tough: 72 kg design with protective steel frame and 5.5L fuel tank. Ideal Applications: High-pressure agricultural irrigation Water transfer from tanks, canals, or ponds Draining construction sites or flooded areas Sprinkler system support Firefighting and emergency operations Included Basic Accessories: • Excalibur Diesel Water Pump • Suction and delivery fittings • User Manual
| Model | SHP100DI |
|---|---|
| Engine | S192F(E) Diesel Engine |
| Power | 13HP |
| Type | Self-Priming Centrifugal |
| Inlet/Outlet Size | 4″ × 4″ |
| Total Head | 55 m |
| Suction Head | 6 m |
| Max Flow Rate | 120 m³/h |
| Mechanical Seal | Ceramic Carbon |
| Fuel Tank | 5.5 Liters |
| Starting | Electric + Manual |
| Net Weight | 72 kg |
| Dimensions | 580 × 490 × 635 mm |
| Country of Origin | China |
