Trash Water Pump

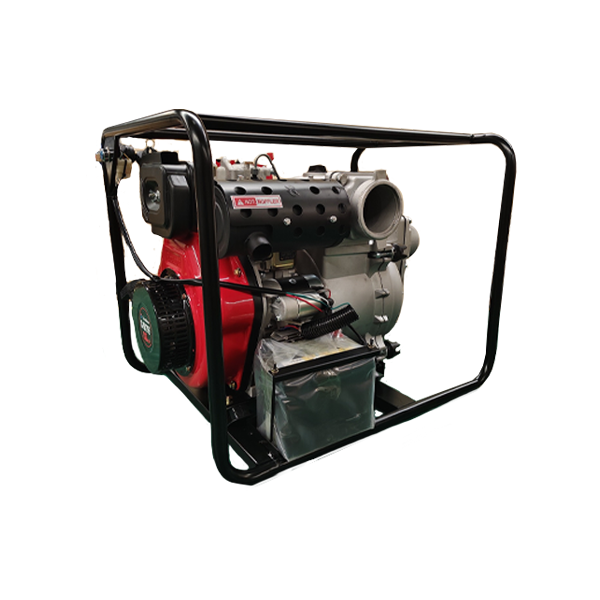

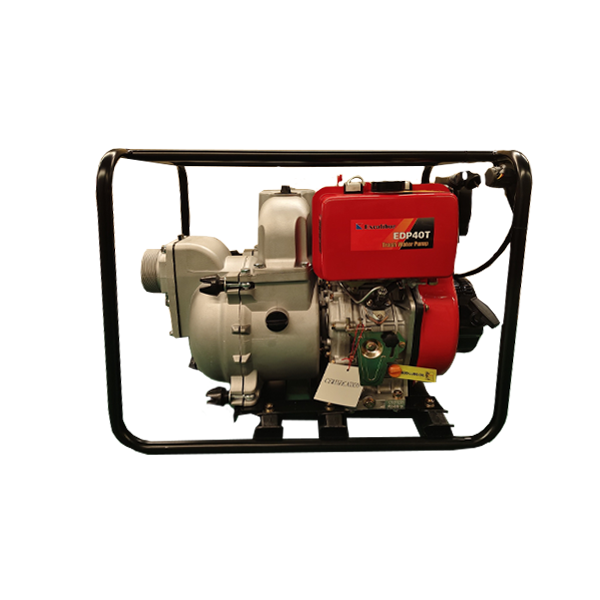

When faced with tough water pumping challenges whether involving muddy, sandy, or trash-laden water, the EXCALIBUR EDP40T rises to the occasion. Designed for high-volume sewage transfer, flood control, and agricultural drainage, this pump is equipped with a powerful 13HP diesel engine (S192FE) that delivers a remarkable flow rate of 96 m³/h. The 4-inch inlet/outlet ensures smooth handling of thick liquids and waste solids, making it the go-to solution for municipal, farm, and construction site operations. Built with durability at its core, the EDP40T features a reinforced steel frame, anti-vibration mounting system, and a corrosion-resistant aluminum alloy pump housing, ensuring reliability even in harsh outdoor conditions. The advanced ceramic mechanical seal helps prevent internal wear, leakage, and damage from debris.
What sets this unit apart is its dual-starting system: operators can rely on a convenient electric start for daily use and a manual recoil start for backup in off-grid or emergency scenarios. It boasts a total head of 26 meters and maximum suction height of 8 meters, allowing water extraction from deep tanks, basements, or obstructed terrains. For further reliability, the pump offers self-priming from 150 seconds (at 4 meters), enabling efficient startup even when the water level is below the pump. Designed for continuous duty cycles, it’s the ideal solution for professionals who need long-lasting, powerful, and low-maintenance pumping equipment. Discover more from our range: [Diesel Water Pumps] and [Gasoline Water Pumps].
• Robust Diesel Engine (13HP): Air-cooled 4-stroke engine delivers high torque with excellent fuel economy.
• Reliable 6.3kW Output: Ensures consistent power delivery for demanding jobsite operations.
• 4″ Trash Pump Inlet & Outlet: Designed to transfer dirty water containing solids, sludge, and sewage.
• Dual Starting System: Equipped with electric start and manual recoil for versatile starting options.
• Heavy-Duty Steel Frame: Durable construction with anti-vibration mounts and integrated carry handles.
• Enhanced Mechanical Seal: Withstands debris and sand, preventing internal wear and leakage.
• High Flow Rate (96 m³/h): Supports heavy flow requirements in flood zones or wastewater transfer.
• Total Head of 26 Meters: Suitable for pumping to elevated storage tanks or distant discharge points.
• Max Suction Head 8 Meters: Efficient water intake from deep or sunken sources.
• Self-Priming (150 sec from 4m): Fast and effective startup even from below ground level.
• Extended Duty Cycle: Built for continuous use in tough environments without frequent shutdowns.
• Low Maintenance Access: Engine layout allows quick service and inspection.
• Sewage and wastewater pumping in construction and municipal projects
• Emergency flood response and stormwater cleanup
• Irrigation from canals, reservoirs, and dirty water ponds
• Site dewatering for foundations, trenches, and basements
• Industrial and agricultural slurry handling
• Excalibur Diesel Trash Water Pump
• Suction and delivery fittings
• User Manual
| Model | EDP40T |
|---|---|

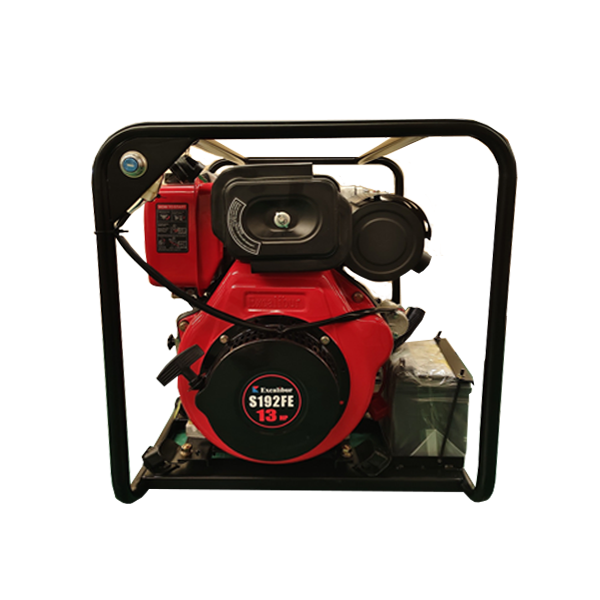

| Engine Type | S192FE |
| Power | 13 HP |
| Pump Type | Diesel Trash Pump |
| Inlet/Outlet | 100 mm (4″) |
| Rated Flow | 96 m³/h |
| Total Head | 26 m |
| Max Suction Head | 8 m |
| Rotation Speed | 3600 RPM |
| Starter System | Electric + Recoil |
| Self-Priming Time | 150 sec @ 4 m |
| Pump Body | Aluminum Alloy |
| Fuel Tank Capacity | 5.5 L |
| Weight | 89 kg |
| Country of Origin | China |
