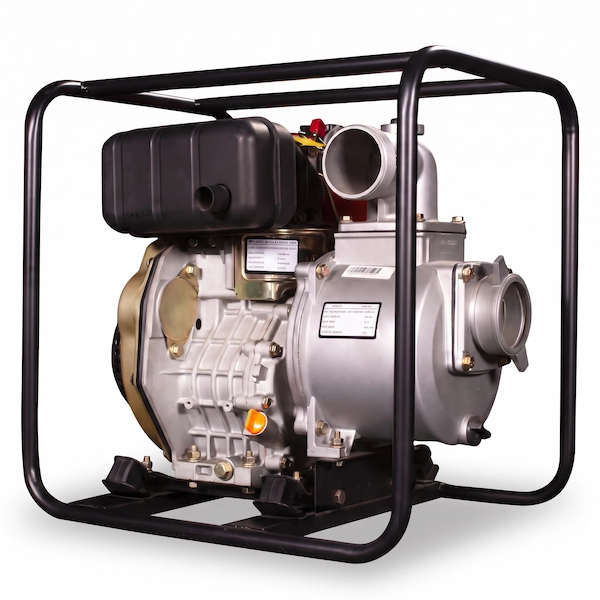

Kama Diesel Water Pump, 2 Inch, 5HP - KDP20

Diesel Centrifugal Water Pump 2"

Transferring substantial volumes of fluid across agricultural fields and active construction zones dictates the need for a highly responsive and mechanically resilient pumping system. The Kama KDP20 addresses these demanding hydrodynamic requirements as a specialized 2-inch (50mm) centrifugal diesel water pump. Operating at a stable rotational speed of 3600 rpm, the unit relies on a robust 5 HP (3.7 kW) KM173F single-cylinder, air-cooled engine. This highly efficient 4-stroke power plant translates mechanical torque into a massive fluid displacement rate, successfully moving up to 42 m³/h of water continuously. Engineered specifically to tackle difficult terrain elevations and deep reservoirs, the pump easily manages a total head lift of 28 meters alongside an impressive 8-meter maximum suction capacity.

To strictly minimize operational downtime on critical job sites, the KDP20 utilizes a highly optimized self-priming mechanism that achieves a 4-meter vertical lift in merely 80 seconds. The structural integrity of the machine is heavily secured by mounting the heavy-duty aluminum pump casing and the internal engine block onto a protective steel tubular frame. This is achieved using thick anti-vibration rubber silent blocks, an isolation strategy that effectively prevents the 35 kg unit from shifting or mechanically "walking" during prolonged extraction cycles. Fuel economy remains a top priority for extended irrigation tasks; therefore, the system integrates a 2.5-liter diesel tank with a calculated consumption rate of 395 g/kW.h. Initiated by a manual recoil starter, this compact and independent pumping solution delivers unwavering hydraulic performance in remote locations entirely lacking grid electricity.

Key Features & Benefits:

• High-Capacity Fluid Transfer: Integrates standard 50mm (2-inch) suction and discharge ports within a self-priming centrifugal architecture, mechanically optimized for rapid fluid intake and high-volume expulsion.

• Extensive Vertical Reach: Capable of pushing extracted water across significant site elevations with a certified total head lift of 28 meters and a maximum suction draw depth of 8 meters.

• High-Torque Diesel Propulsion: Powered by a highly resilient KM173F 4-stroke, air-cooled diesel engine that consistently delivers 5 HP (3.7 kW) of rated power under severe and continuous operational loads.

• Rapid Self-Priming Mechanism: Engineered to entirely eliminate workflow delays by offering an accelerated internal priming time of strictly 80 seconds when executing a standard 4-meter vertical lift.

• Exceptional Volumetric Output: Maximizes job site productivity by offering an impressive hydrodynamic discharge capacity capable of efficiently displacing up to 42 cubic meters of water per hour (42 m³/h).

• Anti-Vibration Frame Architecture: The aluminum pump housing and engine block are securely anchored to a protective outer frame using specialized thick rubber silent blocks to actively absorb oscillation and prevent the machine from drifting.

• Economical Diesel Consumption: Fitted with a 2.5-liter fuel reservoir that operates at a highly efficient consumption rate of approximately 395 g/kW.h, facilitating continuous agricultural runtimes without excessive refueling.

• High-Speed Mechanical Stability: The internal crankshaft is calibrated to operate at a perfectly stable rotation speed of 3600 rpm, guaranteeing maximum water pressure and hydraulic efficiency without mechanical stuttering.

• Compact & Portable Layout: Consolidates its immense pumping power into a highly maneuverable 35 kg structural footprint, allowing field workers to easily transport and position the unit right at the water source.
