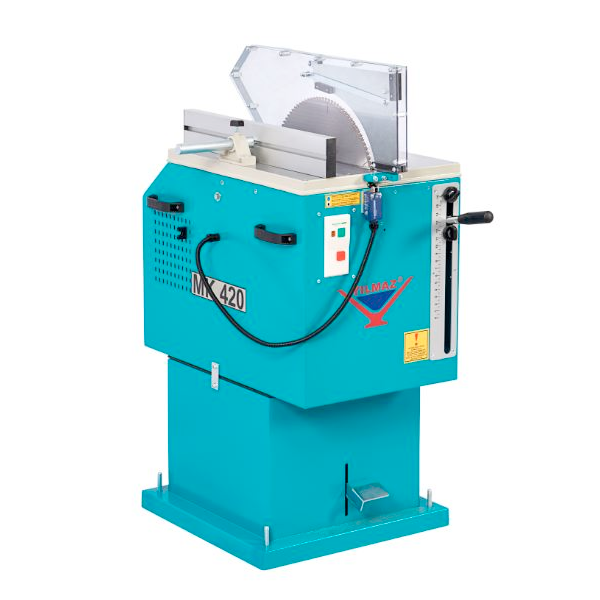

Aluminium Cutting Saw
The YILMAZ MK420/230 Upcut Miter Saw is built for professionals who demand precision, safety, and flexibility in aluminium profile cutting. It combines a powerful 3HP (2.2kW) industrial motor with a large 420mm (16.5'') TCT blade, enabling fast, clean cuts across window frames, structural profiles, and extrusion systems with minimal burr and high accuracy.
Its manual upcut system lifts the blade from beneath the workpiece, offering superior control and smoother operation compared to top-down designs. The 360-degree rotary platform, operated via foot pedal, provides unmatched angle versatility, ideal for custom angles, miters, and longitudinal cutting in production settings.
Engineered for multi-mode use, the MK420/230 works as both a precision miter saw and a flatbed table saw, giving operators dual cutting modes for different fabrication workflows. A wide miter range of 60° right and 60° left, combined with an adjustable back fence, ensures easy handling of large or awkward aluminium profiles.
Safety is a top priority: the interchangeable blade guard system adapts to cutting modes to shield the user, while the rigid aluminium frame and reinforced base deliver long-term durability and vibration-free operation. Quick-access blade replacement also reduces downtime, making this saw ideal for high-demand workshop environments. You can also explore the complete selection from the [Aluminium Cutting Saws] category.
• Manual Upcut System: Blade rises from underneath for clean, accurate, and safe cutting.
• Industrial-Grade Motor: 3HP (2.2kW) motor operates on 230V single-phase power for reliable performance.
• Large Ø420mm Saw Blade: Ideal for cutting wide and flat aluminum profiles efficiently.
• 360 degree Rotary Platform: Foot-pedal control allows full angle adjustment and workpiece rotation.
• Dual Cutting Modes: Works as a miter saw and table saw, handling cross and longitudinal cuts.

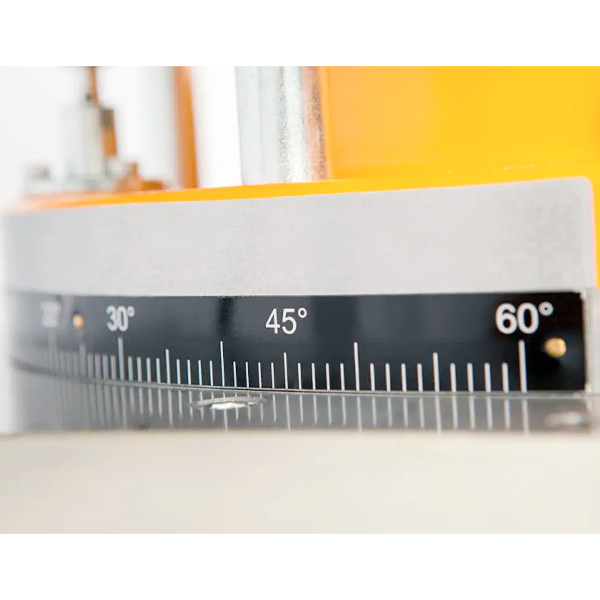

• Extended Miter Range: Cuts up to 60 degree right and 60 degree left for advanced angle applications.
• Adjustable Back Fence: Enhances stability and support when working with large profiles.

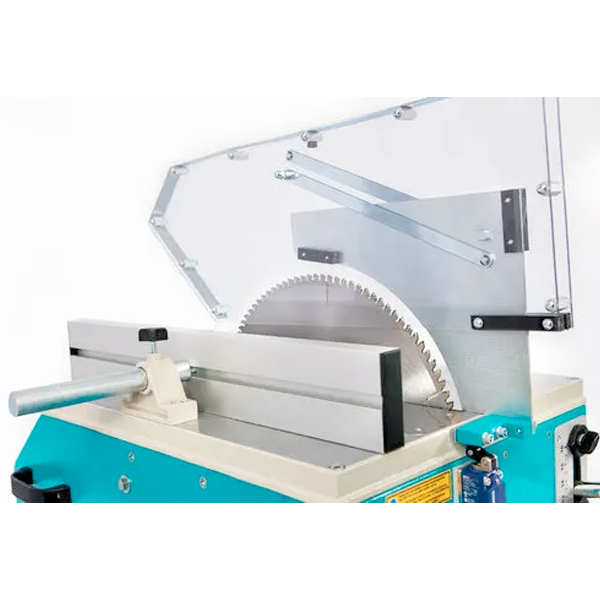

• Integrated Safety Covers: Protects operator during both cross-cut and lengthwise modes.
• Easy Blade Replacement: Quick blade access ensures minimal downtime and easy maintenance.
• Heavy-Duty Design: Built for intensive workshop use and long-term durability.
• Aluminium profile cutting for windows, doors, and structural frames
• PVC and non-ferrous material processing in workshops
• Industrial railing and enclosure manufacturing
• Cross and lengthwise cutting for furniture or exhibition stands
• Custom fabrication and workshop profile finishing
• Miter Saw
• Ø420mm Saw Blade (Pre-installed)
• Adjustable Back Fence
• Profile Length Stop
• 2 Mechanical Top Clamps
• User Manual
| Model | MK420/230 |
|---|---|
| Voltage | 230V – 1 Phase – 60 Hz |
| Power | 2.2 kW (3 HP) |
| Speed | 2900 RPM |
| Blade Diameter | Ø420 mm |
| Operation Mode | Manual Upcut |
| Cutting Type | Cross-cut / Longitudinal |
| Rotating Table | 360° with foot pedal |
| Miter Range | 60° Left / 60° Right |
| Application | Aluminium, Brass, Wood, PVC |
| Dimensions | 865×725×1350 mm |
| Weight | Approx. 142 kg |
| Country of Origin | Turkey |
