Aluminium Cutting Saw

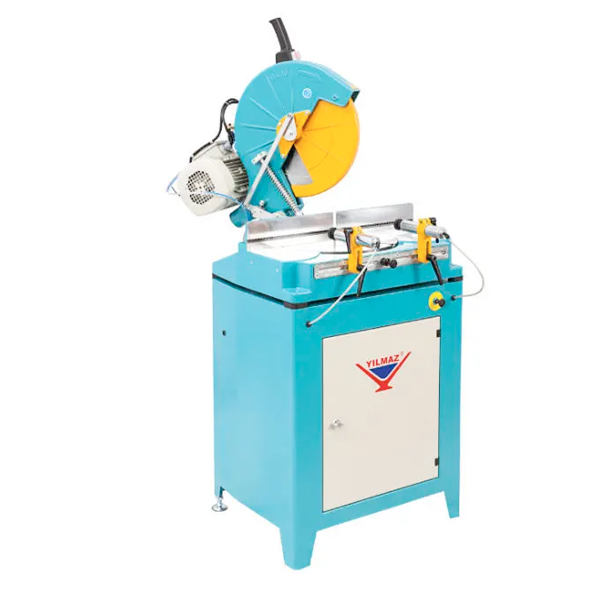

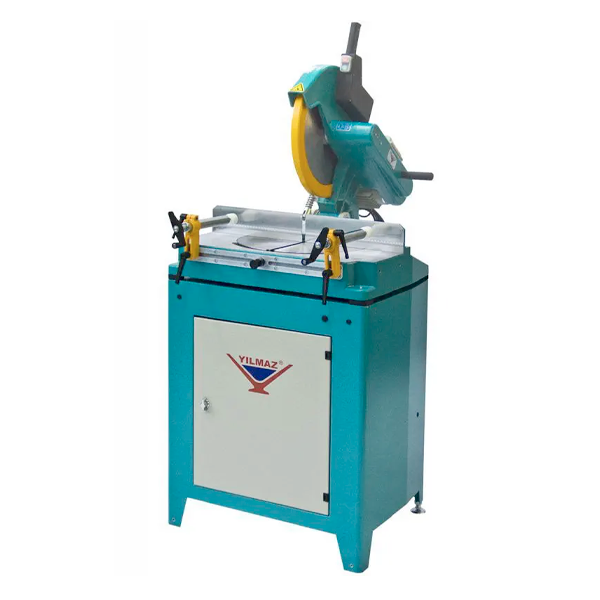

The YILMAZ KD400D/230 Aluminium Miter Saw is built to meet the demands of professional workshops requiring precision, speed, and industrial strength. Equipped with a (16 Inch) 400mm TCT blade, this machine effortlessly handles thick aluminium profiles used in façades, window frames, and structural systems. The dual manual clamps ensure the workpiece stays firmly in place, guaranteeing stable, clean cuts every time.
Powered by a robust 3HP (2.2kW) induction motor, the saw runs on 230V single-phase power, delivering smooth and continuous cutting performance without overheating. Its 45 degree dual miter head enables left and right angled cuts, ideal for framing, jointing, and angled assemblies. The integrated manual angle adjustment mechanism offers a clear scale and smooth pivot, helping users achieve accurate results with minimal setup time.
Built with an aluminium upper body and reinforced steel base, the KD400D/230 ensures excellent vibration resistance and long-term durability. Its low-maintenance design, combined with features like a clear cutting scale, heavy-duty frame, and precision blade guidance, makes it an essential tool for high-output, demanding environments. You can also browse the full range in the [Aluminium Cutting Saws] category.
• Dual Miter Cutting (±45°): Cuts both left and right up to 45° for flexible cutting angles.
• Industrial 3HP Motor: Powered by a 2.2kW motor (230V-1Ph, 60Hz) for continuous performance.
• Large Blade Diameter: 400mm TCT blade handles thick aluminium profiles with precision.

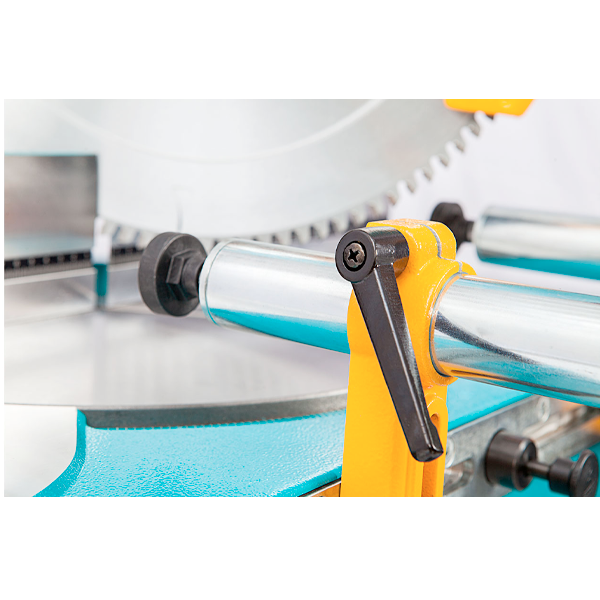

• Manual Horizontal Clamps: Secure material handling for safe and accurate operations.
• Reinforced Build Quality: Aluminium upper body and heavy steel base for stable cutting.
• Easy Angle Adjustments: Smooth pivot design with clear scale for quick setup.

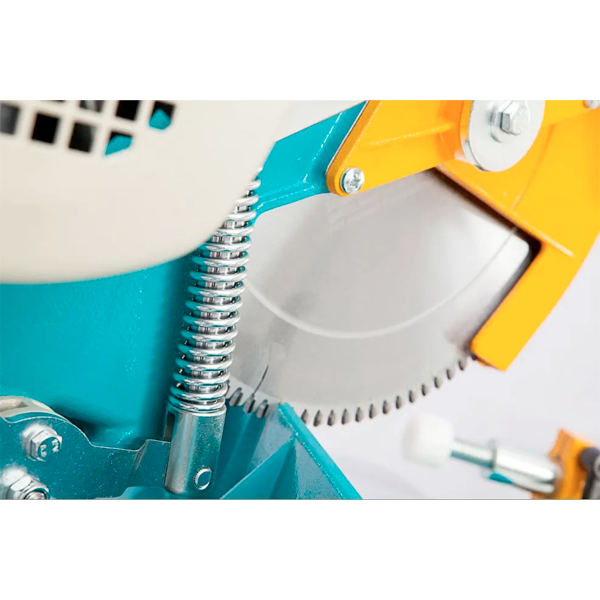

• Precision Cutting Head: Delivers consistent results on straight and angled cuts.
• Heavy-Duty Frame: Vibration-resistant steel base ensures long-term durability.
• Low Maintenance Design: Simple mechanical system minimizes service requirements.
• Clear Cutting Scale: Improves user accuracy and setup efficiency.
• Aluminium profile workshops
• Window and frame manufacturing
• Panel cladding fabrication
• General-purpose aluminium cutting in industrial plants
• Aluminium Cutting Saw
• 16 Inch TCT Blade
• 2 Manual Horizontal Clamps
• User Manual
| Model | KD400D/230 |
|---|---|
| Voltage | 230V – 1 Phase – 60 Hz |
| Motor Power | 2.2 kW (3 HP) |
| Speed | 2900 RPM |
| Blade Diameter | Ø 400 mm (16 Inch) |
| Cutting Angle | ±45° Left and Right |
| Max Capacity @ 90° | 205 × 125 mm |
| Max Capacity @ 45° | 145 × 125 mm |
| Table Rotation Angle | 0° to 45° |
| Application | Aluminum / PVC / Wood cutting |
| Dimensions (L×W×H) | 760 × 860 × 1600 mm |
| Weight | Approx. 137 kg |
| Country of Origin | Turkey |
