Floor Grinding & Polishing

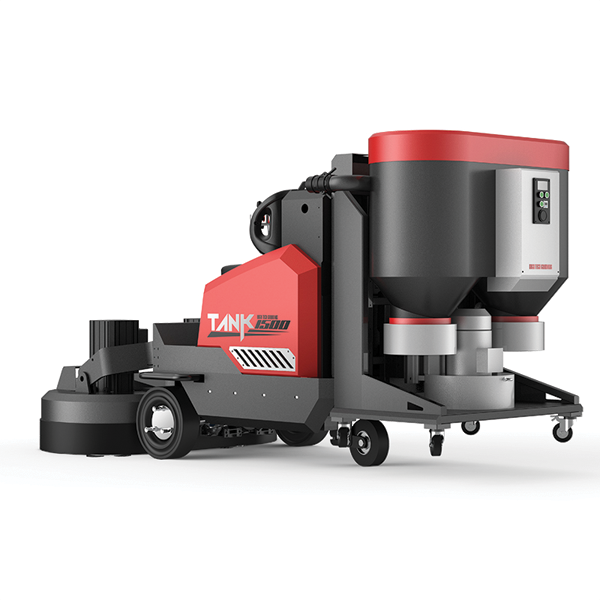

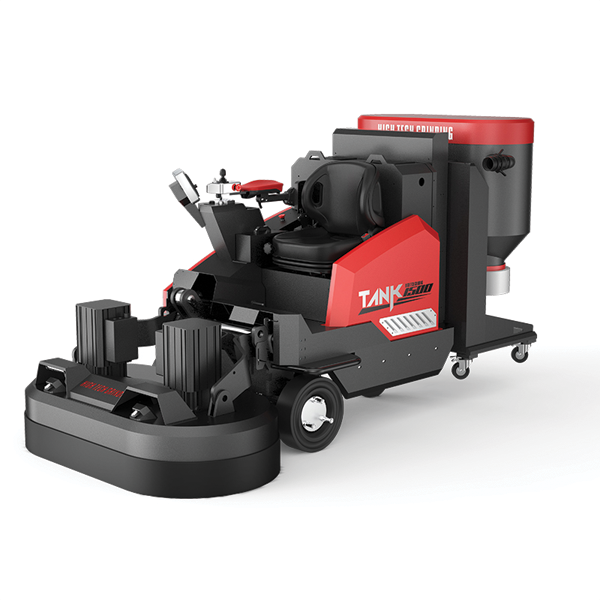

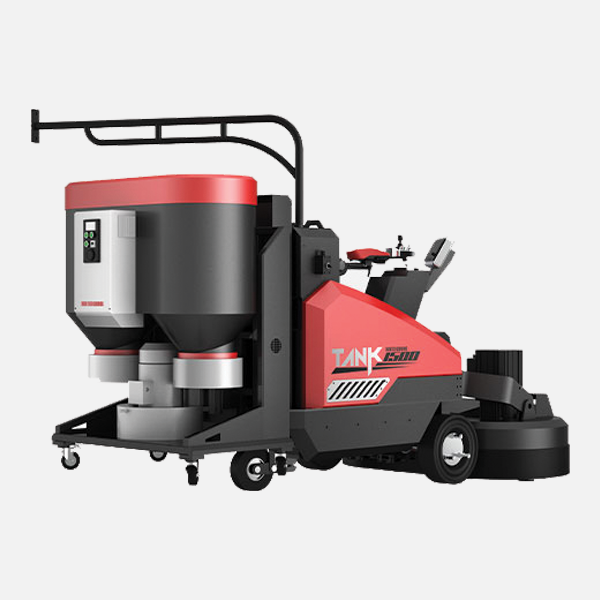

For large-scale projects that demand high-performance grinding and integrated dust management, the XINGYI Tank-1500 delivers an exceptional balance of power, coverage, and smart control. With an impressive 1550 mm grinding width, this machine is built to handle warehouses, factories, logistics centers, and wide floor areas where speed and consistency are critical.
The dual-system configuration combines a heavy-duty grinding head powered by a 25 HP (18.5 kW) motor with an integrated 7.5 kW suction unit, enabling simultaneous grinding and high-efficiency dust collection. This ensures a clean working environment, reduces secondary cleaning time, and maintains visibility across the job area. The 8 grinding heads (278 mm each) provide uniform coverage, while the 980 kg industrial-grade chassis enhances stability during intensive operations.
The HMI control panel gives operators full access to real-time diagnostics, speed adjustments, grinding pressure, and system alerts—ensuring precision and preventing downtime. A hydraulic weight-distribution mechanism further helps the machine maintain consistent grinding performance even on slightly uneven or sloped concrete surfaces.
Engineered for demanding commercial and industrial tasks, the Tank-1500 integrates smoothly into professional contractor workflows, boosting productivity and delivering reliable, consistent results on every job. Explore more of our professional solutions under [Floor Grinders & Polishers], [Floor Cleaning Machines], and [Construction Equipment] to build a complete system tailored for heavy-duty flooring projects.
• Ultra-Wide Grinding Width (1550mm): Covers massive areas rapidly using two integrated 800mm HTG grinding heads.
• Twin 18.5kW Motors (Total 37kW): Provides extreme torque and stability for the toughest floor conditions.
• Built-in 7.5kW Dust Collection System: Strong suction power (1000 m³/h) ensures a cleaner and safer working environment.
• Autopilot Ride-On Operation: Self-driving mode with both remote and onboard controls for effortless movement.
• Advanced HMI Control Panel: Real-time parameter monitoring, error alerts, and intuitive operation settings.
• 980kg Adjustable Grinding Pressure: Delivers deep, even grinding performance on hard or uneven concrete floors.

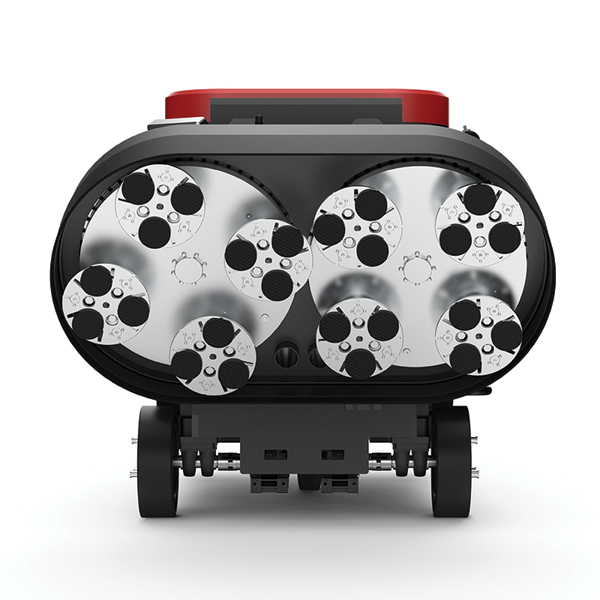

• 8 × 278mm Grinding Discs: Multi-head, high-efficiency grinding system for aggressive material removal and polishing.
• Integrated 20L Mist Sprayer: Cools the surface and reduces dust during wet grinding applications.
• Rechargeable Mobility System: Allows up to 4 hours of movement without power connection.
• Slope Operation (Up to 23°): Maintains consistent performance and stability even on inclined surfaces.
• Large concrete surface preparation
• Marble and granite polishing
• Epoxy removal and coating preparation
• Polishing for stadiums, malls, and airports
• Grinding warehouse and parking-lot floors
• XINGYI Tank-1500 Floor Grinder
• Built-in Industrial Vacuum Unit
• 8 × Grinding Discs (278mm)
• Remote Control Panel
• Built-in 20L Water Tank
• Instruction Manual
| Model: Tank‑1500 | ||
|---|---|---|
| Power: 18.5 kW × 2 | 25HP × 2 | |
| Voltage: 380–440V | 3-Phase | 60 Hz |
| Working Width: 1550 mm | ||
| Working Speed: 450 – 1500 RPM | ||
| Grinding Discs: 278 mm × 8 | ||
| Grinding Pressure: 980 Kg | ||
| Vacuum Power: 7.5 kW | ||
| Vacuum Suction: 1000 m³ | h (588.6 CFM) | |
| Operation Mode: Remote, Ride-On, Autopilot | ||
| Walk Speed: 0 – 30 m | min | |
| Walking Motor: 2kW × 2 | ||
| Water Tank Capacity: 20 L | ||
| Water Spray System: Yes | ||
| Machine Dimensions: 2520 × 1720 × 1650 mm | ||
| Vacuum Dimensions: 1550 × 1100 × 1700 mm | ||
| Total Dimensions: 3300 × 1600 × 1600 mm | ||
| Weight: 2890 kg | ||
| Country of Origin: China |
