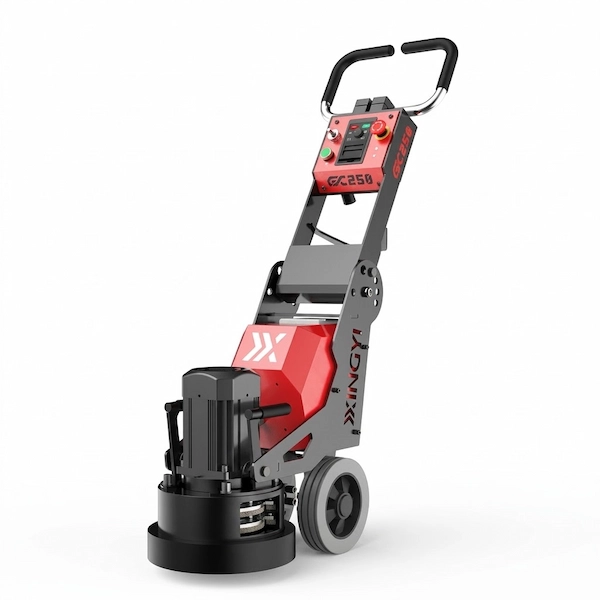

Xingyi Floor Grinder, 1.5 HP, 250 mm (10 Inch) Width - GX250

Edge Floor Grinder 10 Inch

The XINGYI GX250 is the ultimate corner and edge grinding solution—compact, powerful, and meticulously engineered for exceptional versatility. Designed for single-operator convenience, this ultra-portable 10-inch concrete floor grinder delivers industrial-grade performance in the tightest spaces. It handles a wide range of floor grinding tasks with ease, delivering strong performance where larger machines simply can’t reach. Whether you are tackling wall edges, columns, or navigating narrow residential doorways, the GX250 is your ultimate edge master.

Under the hood, the GX250 is powered by a high-efficiency 1.1 kW (1.5 HP) permanent magnet synchronous motor equipped with advanced vector control and an integrated VFD (Variable Frequency Drive). This intelligent engineering provides stable power output and precise RPM control across a massive range of surfaces, even in low-voltage 200 V environments. By keeping the coarse grinding current safely under 5 A, it truly achieves the perfect balance of low energy consumption and high-efficiency leveling.

Designed for real-world job site challenges, the machine features smart soft-start technology and a dedicated capacitor bank that prevents frustrating breaker trips. This makes the GX250 the perfect portable concrete grinder for older buildings or construction sites with weak power supplies, ensuring your surface preparation runs uninterrupted from start to finish.

Key Features & Benefits:

• Advanced Synchronous Motor Technology: Utilizes a highly efficient 1.1 kW Permanent Magnet Synchronous Motor to seamlessly deliver uncompromising physical torque despite its highly compact engineering footprint.

• Precision Flush Edging Capability: Features an optimized 250 mm (10-inch) single-disc mechanical setup specifically engineered to grind perfectly flush against rigid walls, architectural columns, and tight geometric corners.

• Dynamic Variable Speed Control: Operates seamlessly between 350 and 1500 RPM through an integrated VFD, granting operators precise rotational control required for deep concrete profiling, crack repair, and sensitive fine polishing.

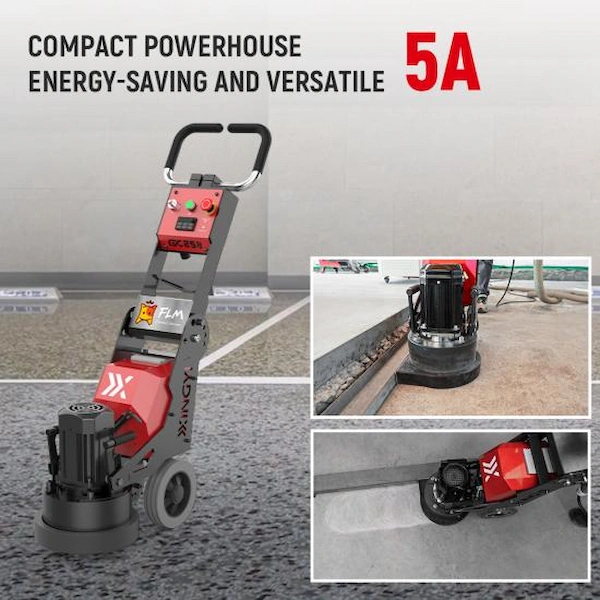

• Breaker-Friendly Soft Start Integration: Employs advanced soft-start circuitry and a robust capacitor bank to keep the coarse grinding current safely below 5 A, entirely preventing operational breaker trips in residential environments.

• Focused Optimal Contact Pressure: Delivers an exact, highly concentrated 20 kg of continuous grinding pressure directly onto the working disc to facilitate incredibly fast and highly efficient surface leveling.

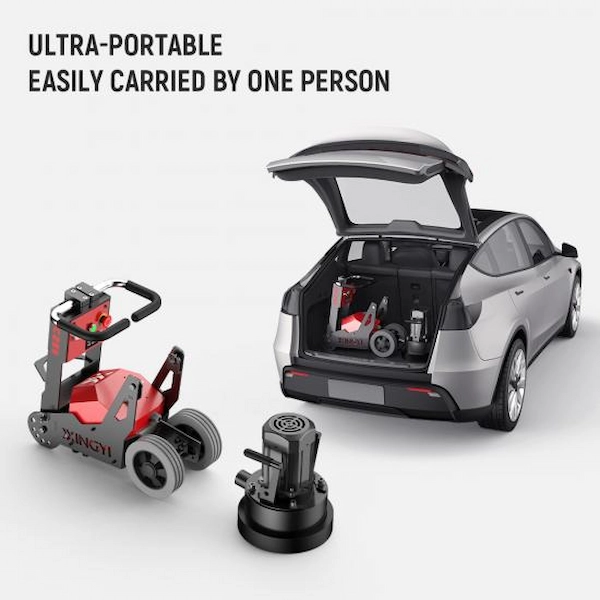

• Modular Breakdown Architecture: Built intelligently with a two-part quick-release frame and simplified motor plug, enabling a single operator to rapidly divide the 60 kg unit for effortless vehicular transport and stair carrying.

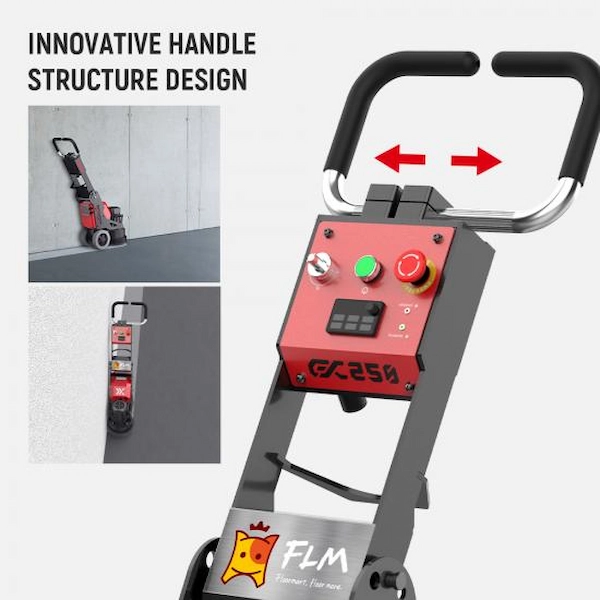

• Ergonomic Offset Control Handles: Features fully adjustable handlebars that physically shift to the left or right, ensuring the operator can walk completely parallel to the work surface without rubbing against the wall line.

• Premium Durable Core Internals: Constructed internally using a globally recognized, high-durability WEG electrical configuration alongside a heavy-duty mechanical transmission gear system to permanently maximize lifecycle durability under harsh job site conditions.

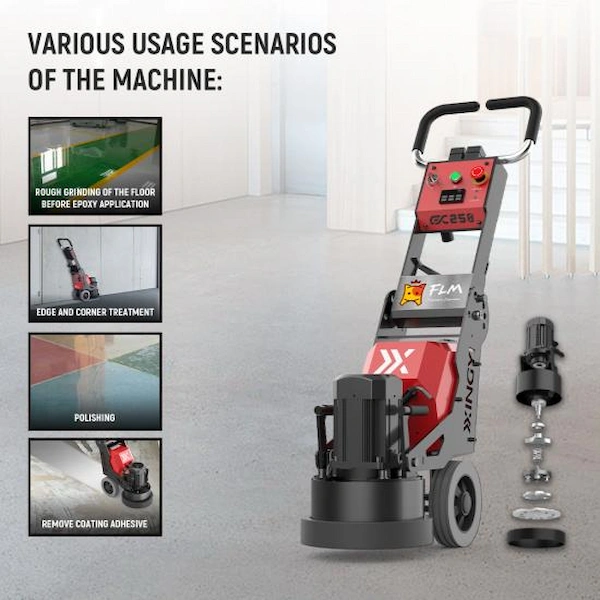

• Comprehensive Multi-Surface Versatility: Expertly adapted to rapidly strip thick coatings and thoroughly process a wide array of demanding substrates, perfectly including raw concrete, natural stone, polished wooden floors, and stubborn epoxy layers.
