Mega Porta Power Hydraulic Jack, 20 Ton, Made in Spain - GC20

Hydraulic Repair Kit

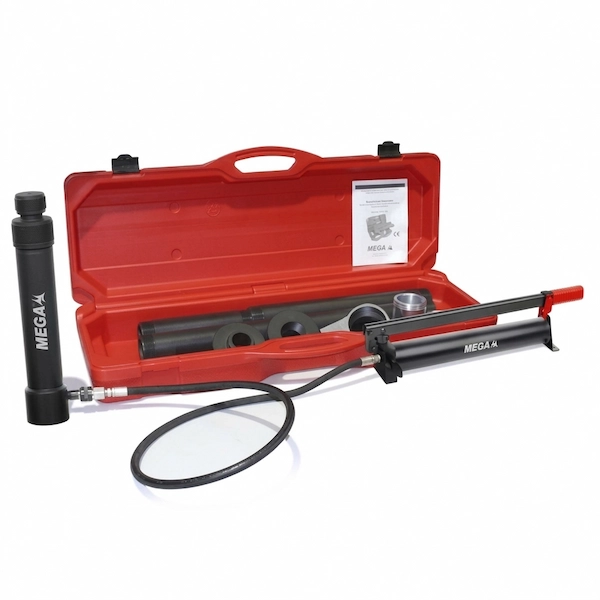

The MEGA GC-20 is an exceptionally robust 20-Ton hydraulic porta power body repair kit, precision-engineered and manufactured in Spain. Built as a high-capacity structural alignment system, it delivers a specialized set of high-strength components tailored for demanding automotive frame repair, roadside assistance, vehicle rescue, and heavy industrial maintenance. Designed for ultimate mechanical versatility, the system efficiently executes heavy pushing, separating, lifting, and bending maneuvers under extreme pressure. Unlike standard push-fit equipment, the GC-20 exclusively utilizes high-strength threaded connections that generate superior stability and structural integrity. This precise engineering architecture enables the hydraulic cylinder to work safely in traction mode, allowing operators to execute critical pulling maneuvers with complete mechanical confidence.

Safety and load control are engineered directly into the core of the GC-20 system. The hydraulic network is fortified with smart safety controls, primarily featuring a built-in overpressure valve that actively prevents the system from exceeding its maximum load limits. Concurrently, a highly responsive release valve ensures that technicians can execute precise load lowering, eliminating the risk of sudden drops. Operating at a working pressure of 700 kg/cm² (10,000 psi), the assembly incorporates a 400 cc manual hand pump and a high-capacity push cylinder.

Key Features & Benefits:

• Body Repair Kit with 20t Cylinder: Heavy-duty structural alignment kit built with an industrial-grade 20-ton hydraulic ram to handle massive frame-straightening tasks.

• Threaded Connection Assembly: Built with high-strength threaded connections that deliver unmatched superior stability compared to push-fit configurations, allowing the kit to safely execute pulling (traction) operations alongside traditional pushing tasks without structural failure.

• Indispensable Industrial Application: Essential for vehicle body repair, structural road rescue work, or any high-capacity thrusting, separation, traction, or elevation application requiring immense hydraulic force.

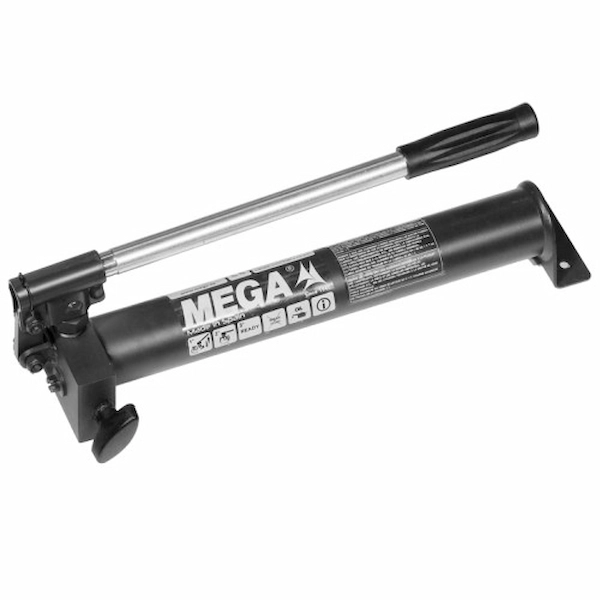

• 400 cc Manual Hand Pump: Optimized, highly portable manual pump weighing exactly 4.3 kg for efficient operation and easy maneuverability in tight, demanding workshop spaces.

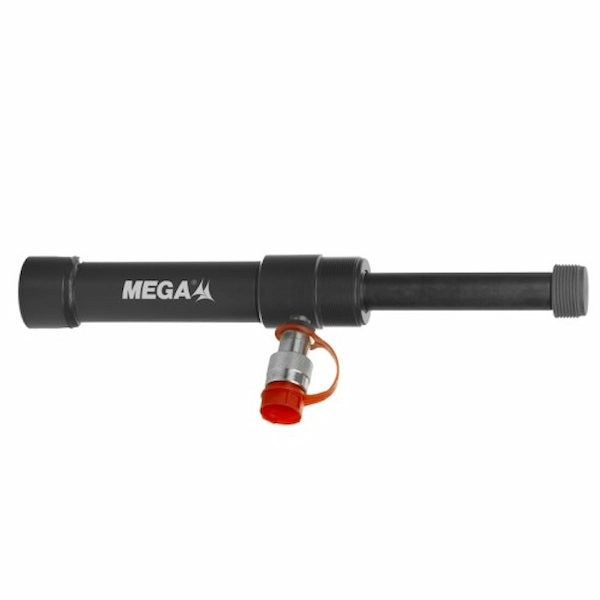

• Lightweight Push Cylinder: High-capacity cylinder weighing 4.4 kg, specifically engineered to deliver maximum power-to-weight performance under heavy pressure loads.

• Advanced Safety Overload Valve: The hydraulic hand pump features an integrated safety overpressure system designed to proactively protect internal components from operating past their maximum capacity limits.

• Controlled Lowering Mechanism: Equipped with a highly responsive release valve that allows operators to precisely control the descent speed of a heavy load, actively preventing sudden and dangerous mechanical drops.

• Mechanical Stroke Limitation: The piston cylinder includes a built-in mechanical stop to prevent over-extension, working in perfect tandem with a spring-return mechanism for smooth, automatic retraction.

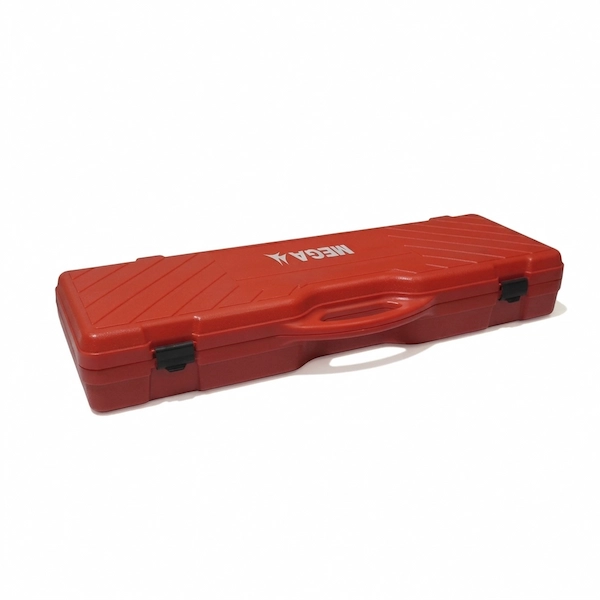

• Heavy-Duty Storage Case: Supplied in a rugged, custom-fitted transport case that securely houses all 14 components, shielding precision hydraulic tools from harsh workshop debris and impact damage.
