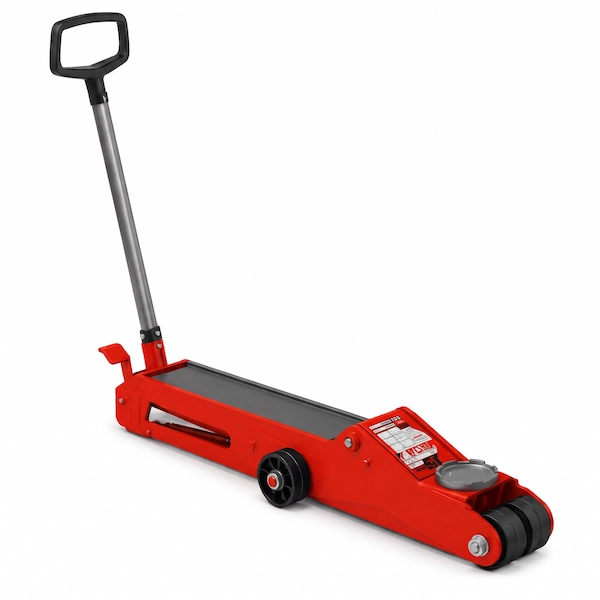

Mega Hydraulic Trolley Jack, 20 Ton, Made in Spain - T20

Hydraulic Floor Jack 20 Ton

Elevating 20,000 kg requires an unforgiving structural framework. The Mega T20 serves as the apex of hydraulic lifting. Weighing a formidable 235 kg, its chassis is a masterclass in weight distribution, utilizing heavily reinforced frontal zones and strategic rear openings to prevent torsion under apocalyptic loads. Moving such a massive piece of equipment is made manageable by heavy-duty steel wheels that glide smoothly across raw concrete workshop floors without yielding to the crushing downward force of the payload.

Mechanically, the T20 dominates the vertical space, catching heavy industrial frames at a 200 mm clearance and thrusting them upward to a staggering 615 mm apex. A specialized quick-approach foot pedal bypasses the empty vertical gap, locking the saddle securely against the vehicle instantly before manual force is applied. With 20 tons suspended, structural safety is non-negotiable. The hydraulic core is fortified with a strict overload relief valve, an internal mechanical route limiter to block piston blowouts, and the signature LCS descent module. Coupled with an automatic fail-safe that instantly paralyzes the jack if physical control is lost, the T20 ensures every massive lift is executed with surgical precision and absolute operator security.

Key Features & Benefits:

• 20-Ton Extreme Lifting Force: Engineered to produce an unyielding 20,000 kg load capacity, providing the supreme structural power needed to safely elevate massive mining equipment, mass transit buses, and heavy-duty earthmoving machinery.

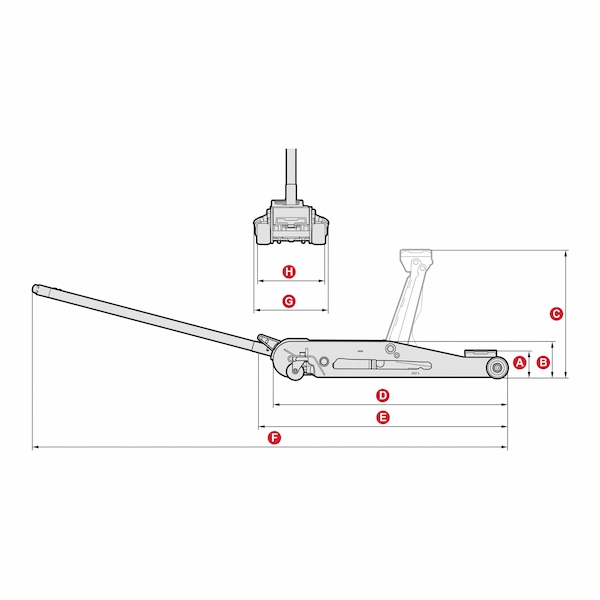

• Commanding Vertical Reach: Delivers an aggressive lifting profile starting from a 200 mm base clearance, extending powerfully to an impressive apex of 615 mm to grant mechanics comprehensive access under immense chassis architectures.

• Colossal Operational Length: The structural frame stretches to a massive 2707 mm total length when the control lever is fully attached, granting operators unmatched leverage and deep reach underneath the widest commercial and industrial vehicles.

• Instant Saddle Engagement Pedal: Integrates a dedicated, foot-operated approach pedal that bridges the vertical gap in seconds, ensuring the lifting pad securely locks against the payload before the heavy manual pumping sequence begins.

• Precision LCS Lowering System: Features a highly sophisticated Lowering Control System that strictly governs hydraulic fluid release, guaranteeing an incredibly smooth, meticulously slow, and completely risk-free descent of 20-ton payloads.

• Strict Automated Safety Lock: Operates under a rigorous fail-safe mechanical principle that immediately paralyzes the entire hydraulic lifting and lowering system if the technician's physical grip on the lever is unexpectedly compromised.

• Hydraulic Overpressure Defense: Armed with a factory-calibrated overload safety valve that actively rejects and blocks any attempts to exceed the strict 20-ton threshold, shielding internal chambers from catastrophic pressure damage.

• Internal Stroke Limitation Bypass: Utilizes a built-in mechanical bypass route acting as a definitive stroke limiter, stopping the main piston precisely at its maximum physical extension to prevent internal wear and cylinder overextension.

• Unyielding Steel Wheels: Supported by heavy-gauge steel wheels specifically cast to withstand the crushing, localized downward forces of 20-ton payloads without deforming, ensuring smooth transit across raw workshop concrete.

• Absolute Fleet Versatility: Proves itself as an indispensable mechanical asset capable of elevating everything from specialized fleet utility vans to the absolute heaviest classifications of mining, industrial, and agricultural transport vehicles.
