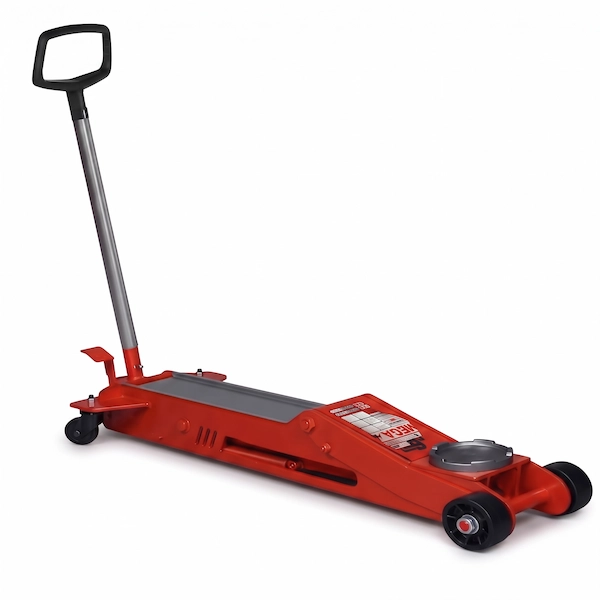

Mega Hydraulic Trolley Jack, 10 Ton, Made in Spain - T10

Hydraulic Floor Jack 10 Ton

The Mega T10 stands as an absolute powerhouse in hydraulic lifting, unleashing a massive 10-ton capacity engineered strictly for extreme commercial environments. Weighing 121 kg, its robust physical architecture is carefully optimized to endure high mechanical stress; the chassis integrates distinct rear side openings alongside heavily reinforced front sections. This specific structural configuration ensures exceptional material distribution and rigidity, enabling the jack to effortlessly elevate heavy transport trucks, commercial buses, and agricultural machinery while maintaining flawlessly balanced mobility on its rugged steel wheels.

Elevating 10 tons of steel demands both extensive reach and absolute operator control. The T10 provides a versatile vertical range, initiating contact at a 170 mm minimum clearance and ascending to an impressive peak elevation of 605 mm. To streamline operations, a dedicated quick-approach foot pedal allows mechanics to instantly bring the lifting platform flush against the vehicle's frame, skipping tedious manual pumping. Handling such immense weight safely is guaranteed by a comprehensive hydraulic safety suite. A factory-calibrated overload valve prevents capacity breaches, a mechanical route limiter protects the internal piston, and the advanced Lowering Control System (LCS) functions in absolute tandem with an automatic fail-safe stop mechanism, paralyzing all movement instantly if physical control is lost.

Key Features & Benefits:

• 10-Ton Heavy-Duty Lifting Performance: Rated for an extreme 10,000 kg (10-ton) load capacity, delivering the immense, uncompromising lifting power required to service commercial bus fleets, heavy transport trucks, and large agricultural machinery safely.

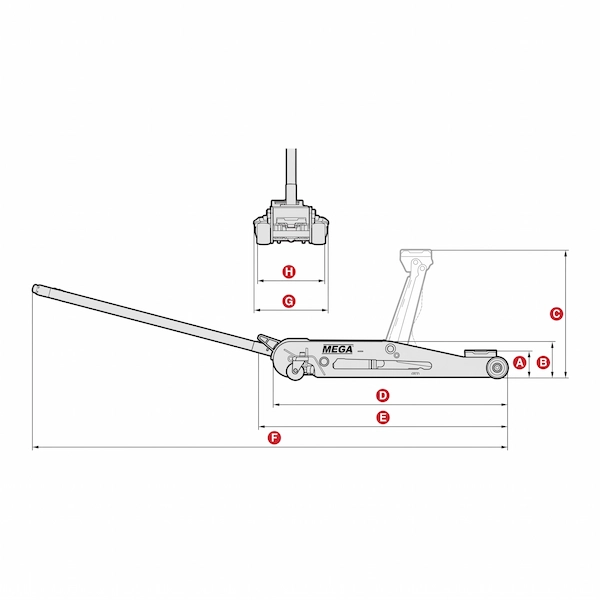

• Expansive Vertical Range: Engineered with a highly functional lifting profile that requires a minimum clearance height of 170 mm, while providing the capability to push massive vehicles up to a maximum elevation apex of 605 mm for deep undercarriage access.

• Maximized Total Operational Reach: The heavy-duty structural design stretches to a full operational length of 2530 mm when the control lever is fully attached, giving mechanics excellent leverage and extensive reach underneath large commercial chassis.

• Quick Approach Foot Pedal: Equipped with a highly efficient foot-operated pedal that rapidly bridges empty vertical space, allowing the lifting platform to make immediate, precise contact with the heavy load prior to initiating the manual pumping sequence.

• LCS Descent Control Device: Integrates an advanced Lowering Control System (LCS) that strictly regulates the release of hydraulic pressure, ensuring the completely safe, smooth, and highly controlled lowering of massive, multi-ton commercial vehicles.

• Automatic Fail-Safe Stop Mechanism: Built upon an automated operational safety principle that immediately paralyzes and halts all mechanical lifting and lowering movements if the operator involuntarily loses physical control of the handle lever.

• Overload Safety Valve Integration: Features an integrated, factory-set pressure relief valve designed to actively protect the internal hydraulic system from catastrophic damage caused by attempting to lift loads exceeding the strict 10-ton safety rating.

• Hydraulic Route & Stroke Limiter: Incorporates an internal mechanical bypass that acts as a precise stroke limiter, halting the hydraulic progress at the maximum extension point to prevent the main piston from overextending and damaging internal seals.

• Robust Steel Wheel Construction: Outfitted with heavy-duty, ultra-durable steel wheels strategically designed to withstand the crushing weight of 10-ton loads while providing smooth, balanced movement across concrete garage surfaces.

• Universal Fleet Suitability: Serves as a highly versatile workshop asset suitable for lifting all types of vehicles across a broad spectrum, ranging from light utilitarian passenger cars to the absolute heaviest of industrial and agricultural transport vehicles.
