Icaro Rebar Cutting Machine, 46mm, 7.5HP, Made in Italy - C55

Electric Rebar Cutter 46mm

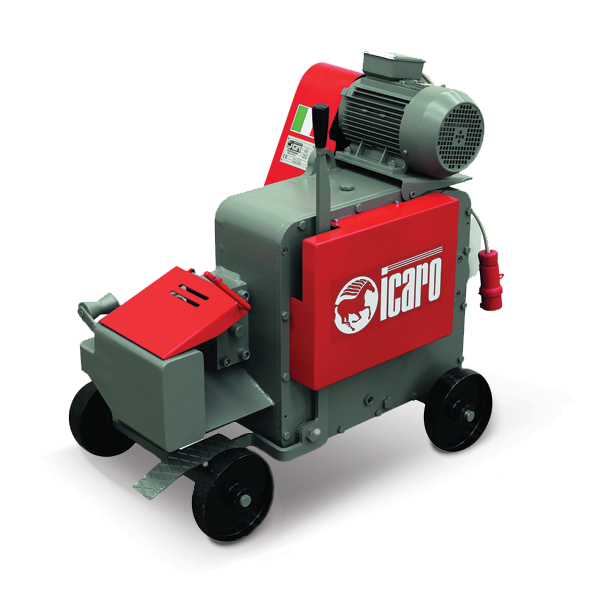

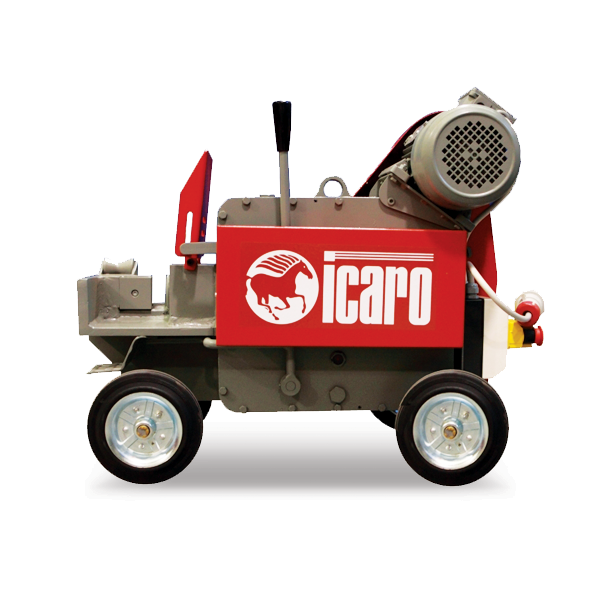

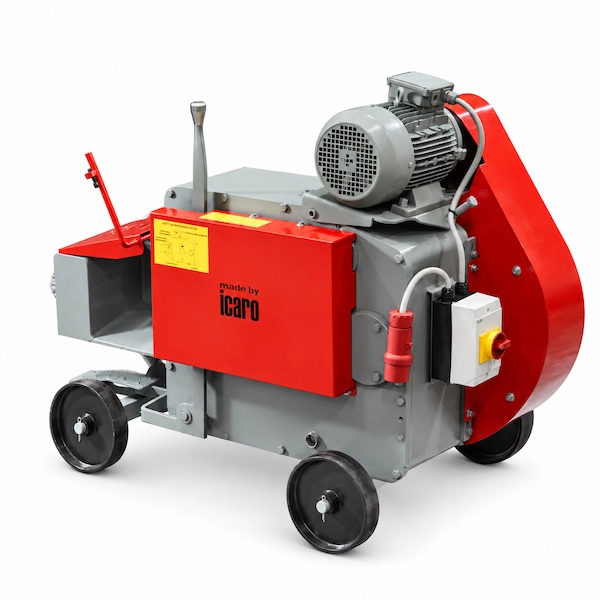

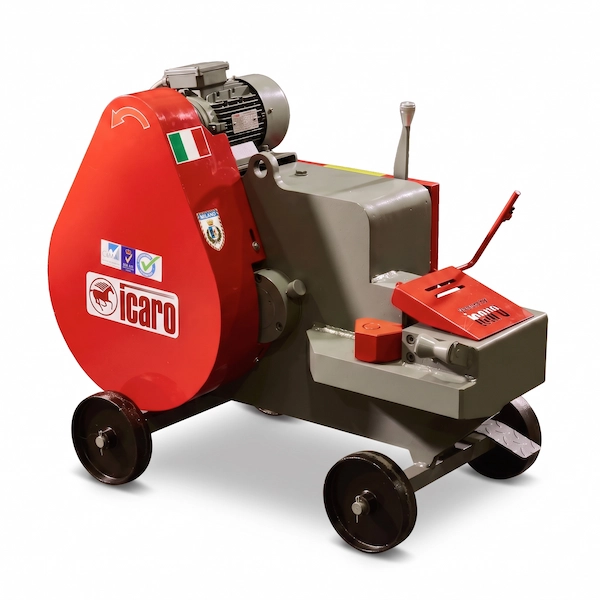

Engineered for maximum output in heavy construction, the Icaro C55 is a stationary electric rebar cutting machine manufactured in Italy. Powered by a robust 7.5 HP (5.5 kW) three-phase motor operating on a 230-400V supply, this 781 kg unit delivers exceptional shearing force at a highly regulated speed of 40 rpm. It guarantees precise cold cuts for medium-tensile rebars up to 46 mm and effortlessly processes high-tensile structural steel (85 kg/mm²) up to 40 mm, ensuring strict dimensional accuracy for large-scale concrete infrastructure projects.

The machine's mechanical integrity is firmly anchored by a rigid cast alloy drive chassis. Internally, it utilizes specialized, weld-free 39-Chrome Nickel steel gears that are heat-treated and individually serialized to provide superior resistance against continuous frictional wear. To facilitate efficient multi-bar processing, an adjustable prism bar securely clamps up to three 26 mm rods, entirely eliminating lateral slip during operation. Complete with premium 4-edge reversible steel blades, a dual foot-pedal and hand-lever control system, and certified safety interlocks, the C55 secures a safe, highly productive workflow on any demanding job site.

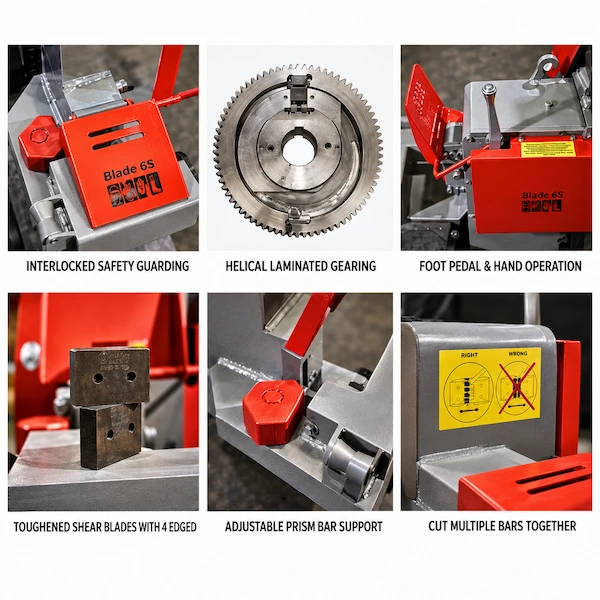

Key Features & Benefits:

• Extreme-Capacity Shearing: Capable of slicing through ultra-thick medium-tensile steel up to 46 mm individually, or maximizing daily throughput by shearing three 26 mm rods simultaneously without mechanical hesitation.

• 7.5 HP Industrial Motor: Draws continuous kinetic energy from a heavy 5.5 kW (7.5 HP) electric motor designed for 230–400V 3-phase networks, ensuring high-torque performance during intense daily fabrication schedules.

• 39-Chrome Nickel Gears: Features a highly resilient transmission system carved from single pieces of 39-Chrome Nickel steel. This weld-free fabrication ensures ultimate endurance and carries individual serial numbers for strict quality assurance.

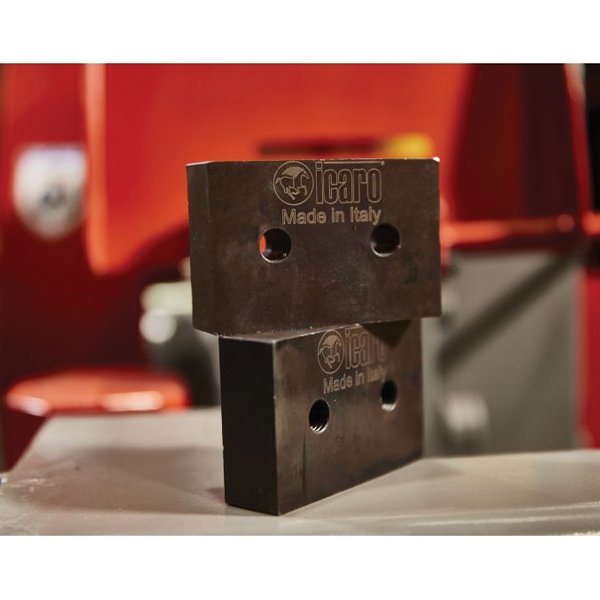

• 4-Edge Reversible Blades: Employs premium hardened steel blades shaped in a precision square geometry, allowing technicians to manually rotate the blade to a fresh cutting edge four times before requiring a replacement.

• Advanced Prism Alignment Guide: Integrated with a heavy sliding prism bar that securely locks various diameters of steel rods in place, physically preventing material rotation or lateral misalignment during the shearing process.

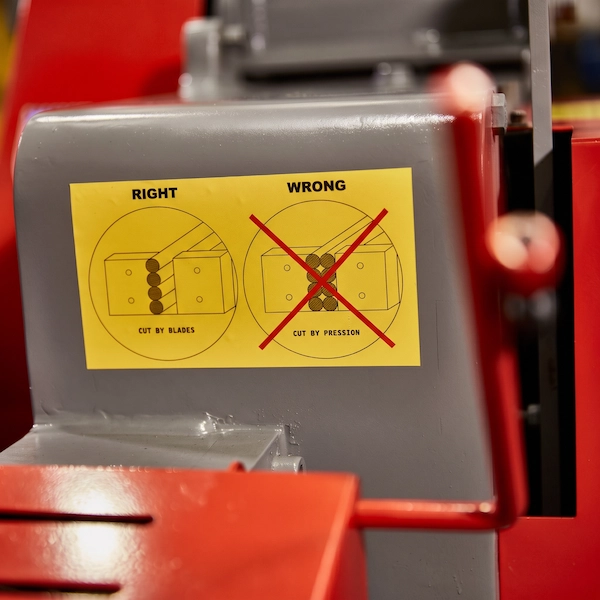

• Concurrent Multi-Bar Processing: Specifically calibrated to handle the simultaneous insertion of multiple steel bars while maintaining clean, burr-free edges that are essential for immediate construction site utilization.

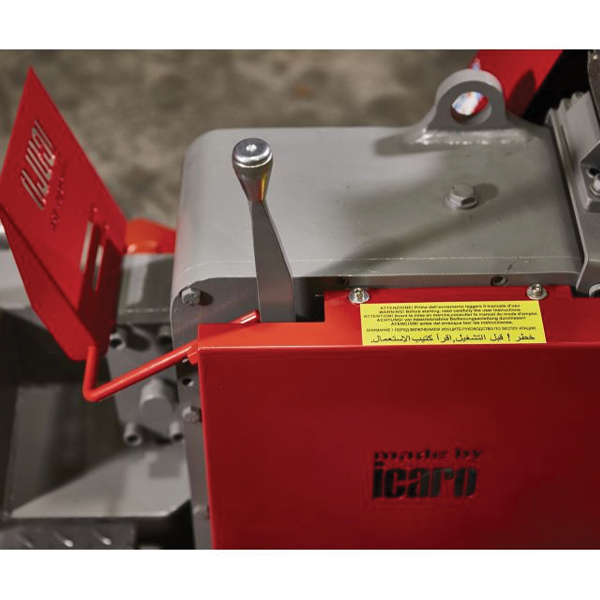

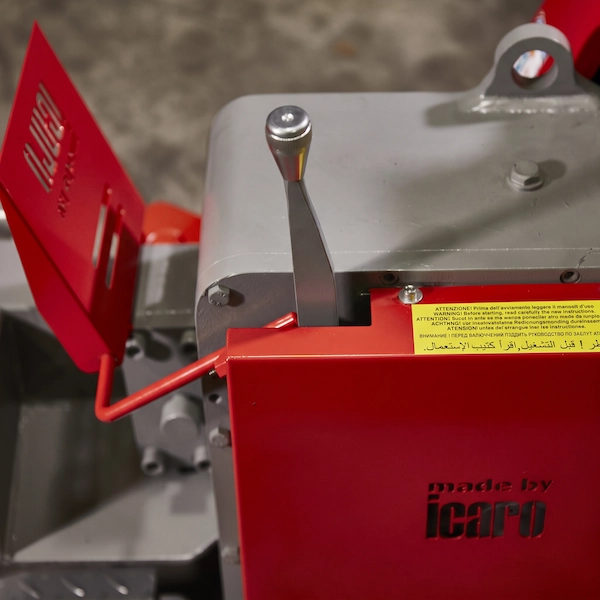

• Dual-Action Operation Modes: Maximizes worker ergonomic convenience by providing two distinct triggering methods: an immediate manual hand-lever and an accessible foot-pedal system for hands-free activation.

• Massive Cast Alloy Chassis: The entire electromechanical module is encased within a 781 kg rigid cast alloy body, effectively dampening severe cutting shocks and guaranteeing absolute stability on the workshop floor.

• Electromechanical Safety Interlocks: Fully compliant with rigorous industrial safety protocols, featuring highly responsive interlock guarding that instantaneously halts the 40 rpm cutting mechanism if the protective covers are lifted or bypassed.
