Icaro Rebar Cutting Machine, 30mm, 3HP, Made in Italy - C36

Electric Rebar Cutter 30mm

Processing heavy-gauge steel reinforcement demands machinery capable of sustaining immense mechanical force without structural degradation. The Icaro C36 steps into this industrial requirement as a premier electric rebar cutter, purposely built for rigorous metal fabrication environments. Relying on a 3 HP (2.2 kW) electric motor that draws from a 230–400V three-phase power grid, Operating at a steady 90 rpm, it cleanly severs medium-tensile steel bars up to 30 mm in thickness in less than one second. For projects demanding high-tensile structural steel, the machine easily slices through 26 mm solid rebars, maintaining unyielding dimensional accuracy without stressing the internal mechanics.

The entire kinetic system is protected by a solid cast alloy chassis, housing heavy-duty gears milled from singular blocks of 39-Chrome Nickel steel. By eliminating weak welding points and applying precise heat treatments, Icaro guarantees absolute internal traceability and wear resistance. During rapid, multi-bar processing tasks—such as cutting three 16 mm rods simultaneously—an adjustable prism stabilizing bar firmly clamps the steel to prevent dangerous lateral slipping. Complete with 4-edge reversible hardened steel blades, a dual foot-and-hand actuation interface, and responsive interlock safety guards, this Italian-engineered cutter delivers unparalleled productivity to demanding construction yards.

Key Features & Benefits:

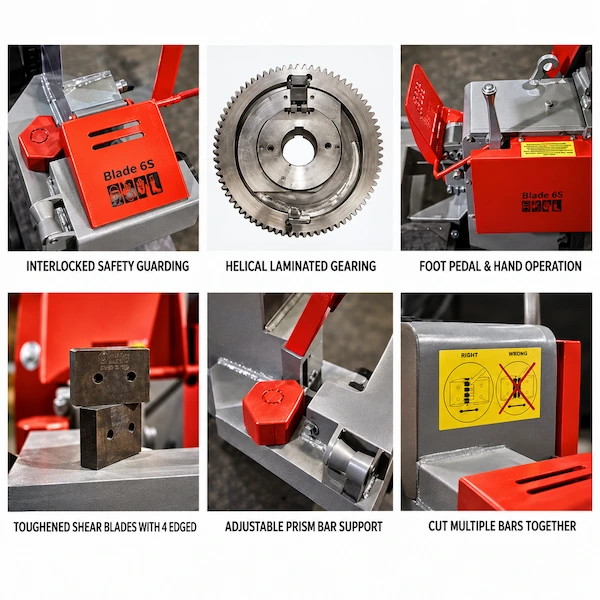

• Massive Steel Cutting Capacity: Engineered to perform split-second cold cuts on heavy-gauge materials, effectively shearing through a single 30 mm medium-tensile bar or maximizing throughput by processing three 16 mm bars at once.

• Heavy-Duty Three-Phase Motor: Draws continuous power from a 2.2 kW (3 HP) industrial electric motor designed for 230–400V 3-phase networks, ensuring consistent, high-torque performance during grueling daily fabrication shifts.

• Solid 39-Chrome Nickel Gearing: Features a highly resilient internal transmission system carved from single pieces of 39-Chrome Nickel steel. This weld-free, heat-treated fabrication ensures ultimate mechanical endurance and carries individual serial numbers for strict quality control.

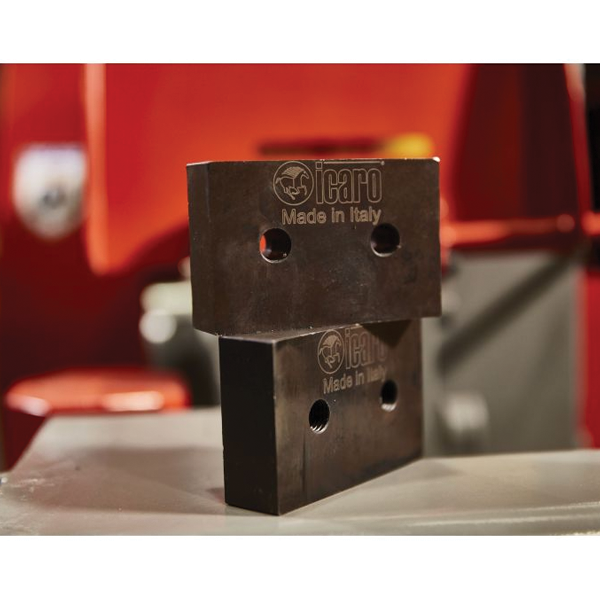

• Economical 4-Edge Cutting Blades: Employs top-tier hardened steel blades shaped in a precise square geometry, permitting technicians to rotate the blade to a fresh cutting edge up to four times, significantly extending the maintenance cycle.

• Adjustable Prism Alignment Mechanism: Integrated with a heavy-duty sliding prism bar that securely locks various diameters of steel rods in place, physically preventing material rotation or misalignment during high-speed shearing.

• Simultaneous Multi-Rod Processing: Specifically calibrated to handle the simultaneous insertion of multiple steel bars without compromising cut cleanliness, leaving smooth, burr-free edges essential for immediate construction utilization.

• Dual-Mode Operator Actuation: Maximizes worker safety and ergonomic convenience by providing two distinct triggering methods: an immediate manual hand-lever and an accessible foot-pedal system for hands-free operation.

• Reinforced Cast Alloy Housing: The entire electromechanical cutting module is encased within a 475 kg rigid cast alloy chassis, dampening severe cutting shocks and guaranteeing absolute stability on the workshop floor.

• Certified Safety Interlocks: Strictly adheres to industrial safety standards by integrating highly responsive interlock guarding systems, instantly disabling the cutting mechanism if safety covers are breached.
