Steel Bar Bender

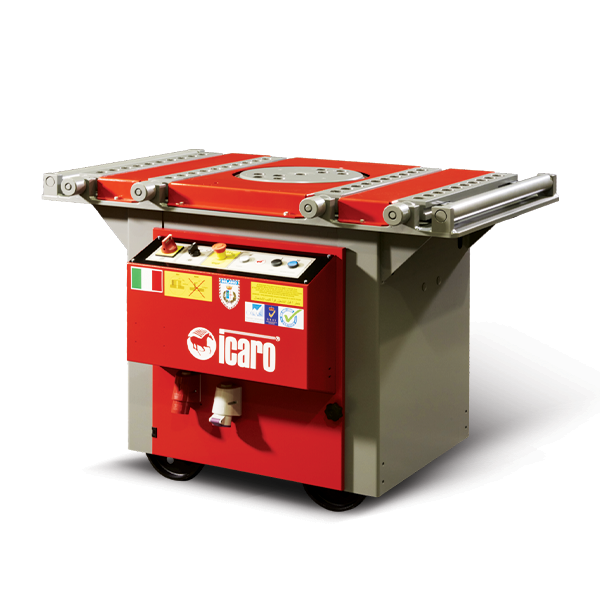

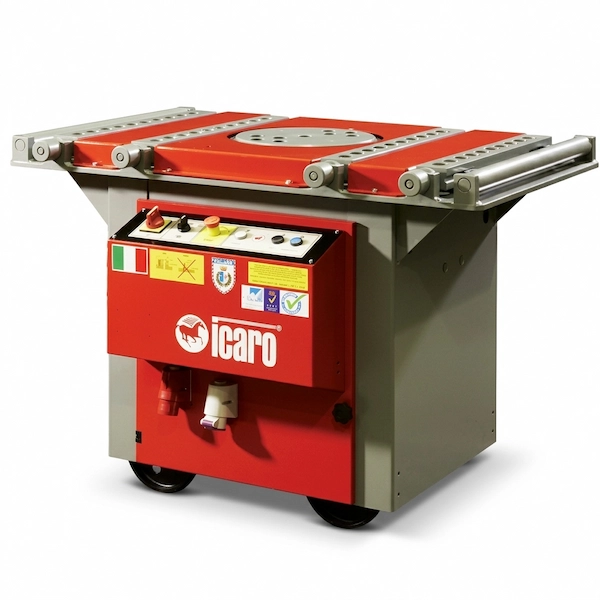

The ICARO P55 Electric Bar Bender is a professional-grade solution for bending large-diameter steel rebars on job sites and in fabrication workshops. With a powerful 5.5kW / 7.5HP motor, the machine offers a maximum bending capacity of 1× 46mm, 2× 36mm, and 3× 28mm (under 65kg/mm²), making it suitable for complex rebar configurations in structural elements like foundations, pillars, and retaining walls.
Its bidirectional bending table allows clockwise and counterclockwise bending via foot pedal control, offering unmatched operator flexibility and control. A laminated helical gearbox, filled with 13kg of high-performance grease, ensures quiet and smooth gear transmission, even under heavy loads. The robust frame and interlock safety systems provide full protection during operation.
Built for industrial productivity, the P55 features a compact design, ideal for both fixed-site installations and mobile field setups. It's CE-certified, equipped with multiple controller options.
Whether you’re working in a workshop or a large construction project, discover durable solutions in our [Rebar Benders], explore more in [Rebar Equipment], and find essential support tools in [Construction Equipment].
• High Bending Capacity – handles up to 46 mm rebars (single bar), 36 mm (double), and 28 mm (triple) for 65 kg/mm² reinforced steel
• Powerful Motor Output – 5.5 kW / 7.5 HP motor compatible with 230–400V, 3-phase, 60 Hz systems
• Bidirectional Bending Table – allows clockwise and counterclockwise bending with foot pedal activation for ergonomic, safe operation
• Precision Gearbox System – helical gearbox with 13 kg grease capacity ensures smooth performance and minimal maintenance
• Enhanced Safety System – full protection guards, mechanical interlocks, and CE-certified electrical safety components
• Compact & Mobile Frame – space-efficient design ideal for workshops and on-site construction environments
• Rebar preparation for footings, beams, and columns
• Construction of rebar cages and stirrups
• Industrial workshops and steel fabrication yards
• Civil engineering and infrastructure projects

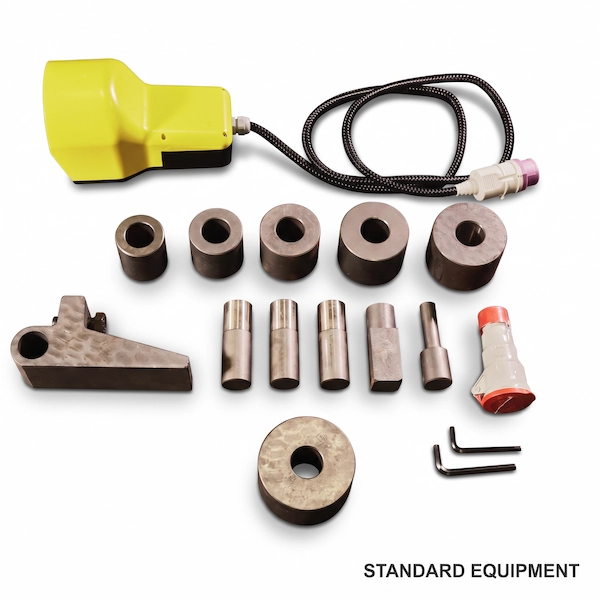

• Bar Bender

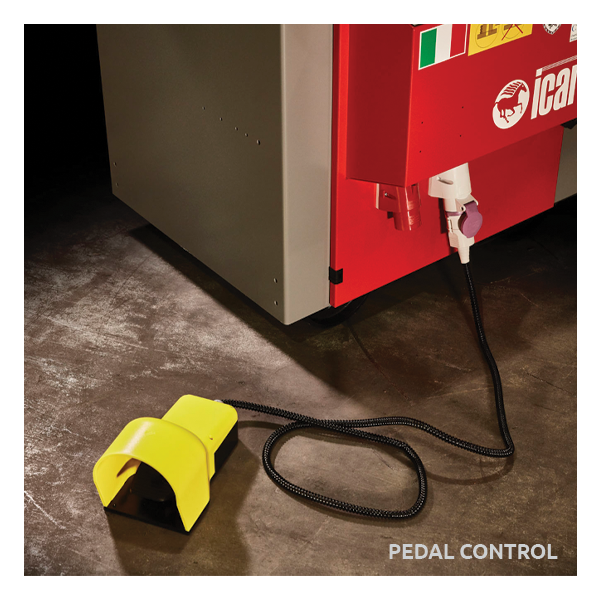

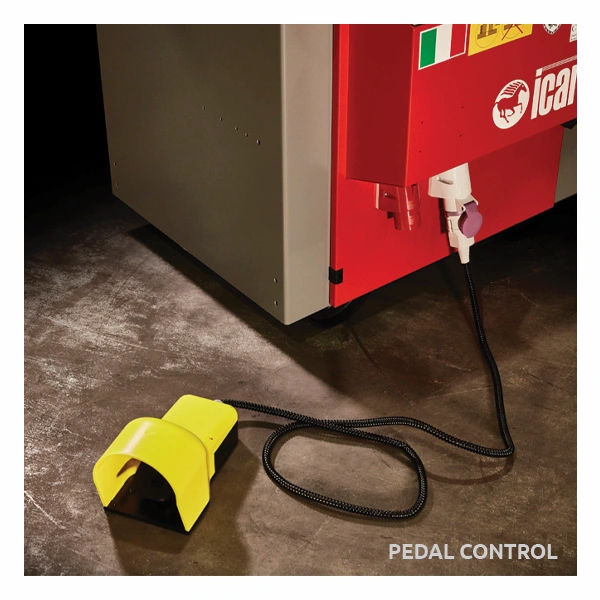

• Foot Pedal
• Standard bending pins and tools
• User Manual
| Model | P55 |
|---|---|
| Motor Power | 5.5 kW / 7.5 hp |
| Voltage | 230–400V / 3PH / 60Hz |
| Bending Capacity (65kg/mm²) | |
| 1 bar | 46mm |
| 2 bars | 36mm |
| 3 bars | 28mm |
| Bending Capacity (85kg/mm²) | |
| 1 bar | 42mm |
| 2 bars | 34mm |
| 3 bars | 26mm |
| Grease Capacity | 13kg |
| Dimensions (W × L × H) | 1100 × 1000 × 890 mm |
| Weight | 620 kg |
| Country of Origin | Italy |
