Steel Bar Bender

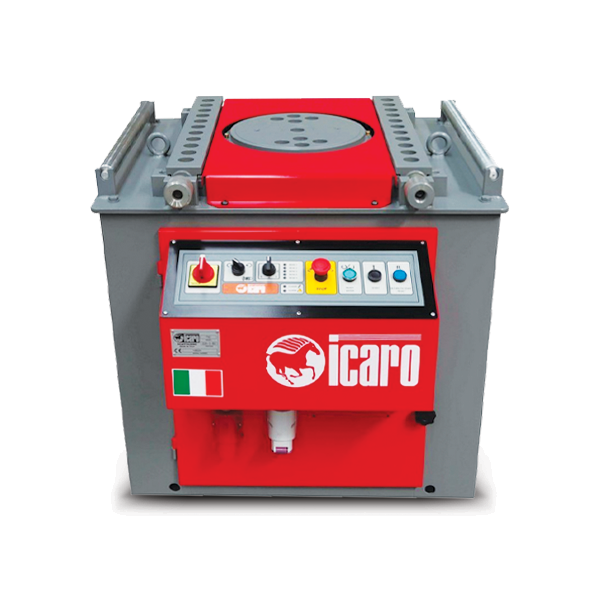

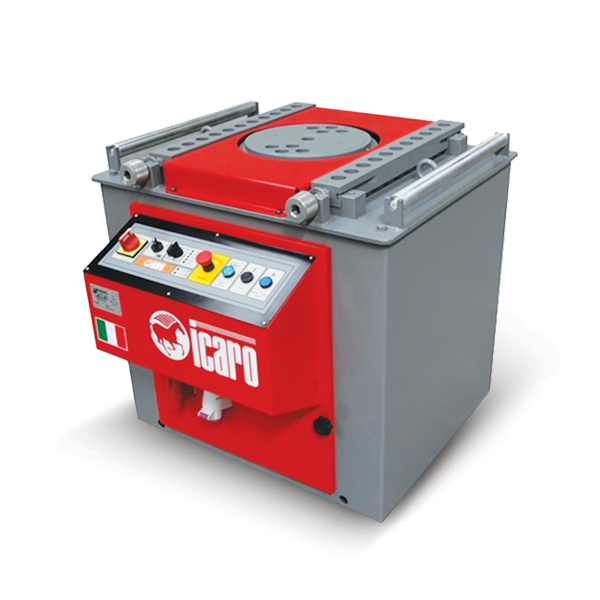

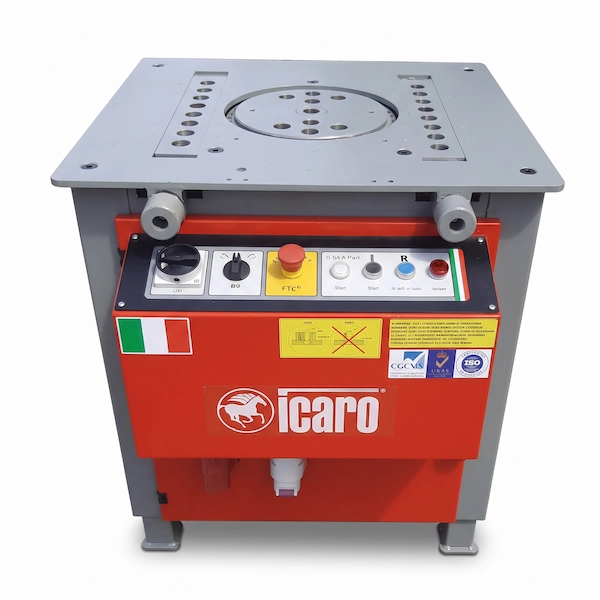

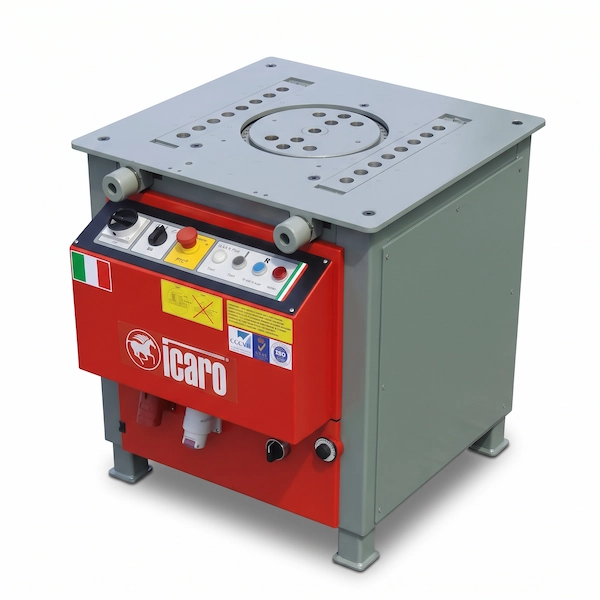

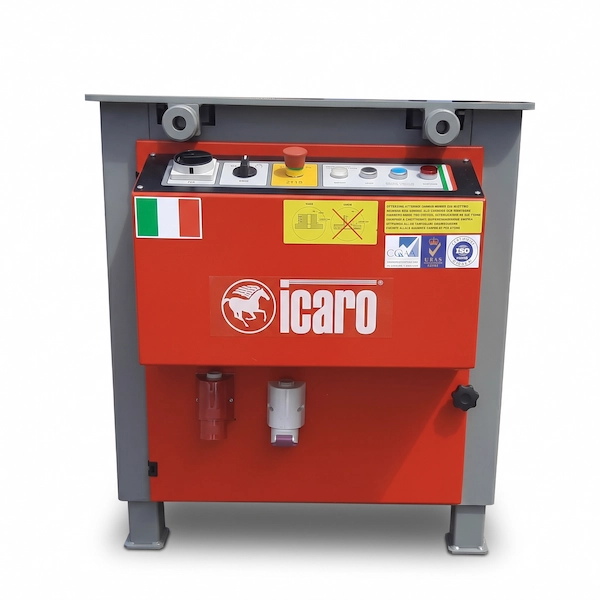

The ICARO P42 is a high-performance electric rebar bending machine built to deliver industrial-grade precision, power, and reliability on every job site. Designed and manufactured in Italy, this model combines European engineering excellence with heavy-duty performance, making it the ideal solution for bending steel bars up to 36mm with ease and consistency.
Its bidirectional bending system allows clockwise and counterclockwise operation, supported by a foot pedal control for safe and efficient workflow. The grease-filled helical gearbox ensures smooth motion and extended service life, while the compact CE-certified frame makes it perfect for both workshop setups and field environments.
Every element of the P42 — from its 4kW (5.5 HP) motor to its advanced gearing and user-centric layout — is built for maximum productivity and operator comfort.
Make your reinforcing tasks easier and more efficient with equipment found in our [Rebar Benders], our comprehensive [Rebar Equipment] category, and our wide range of [Construction Equipment].
• Dual-Directional Bending Table – enables clockwise and counterclockwise bending for better workflow and shaping flexibility
• Powerful 4 kW Motor – industrial-grade motor designed to reliably bend rebars up to 36 mm

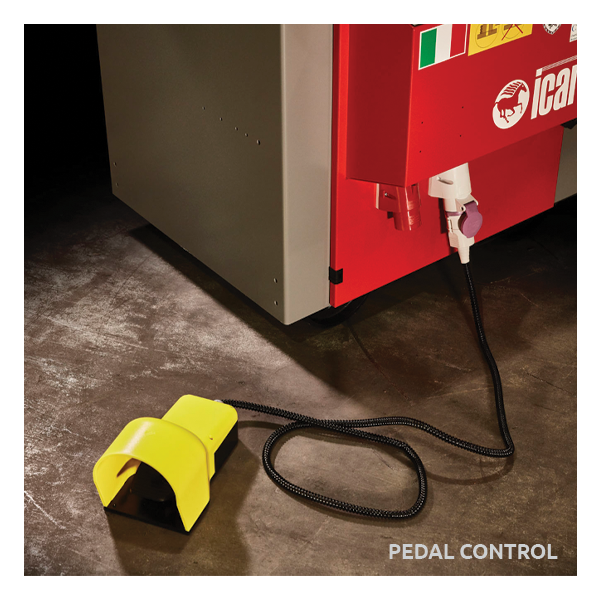

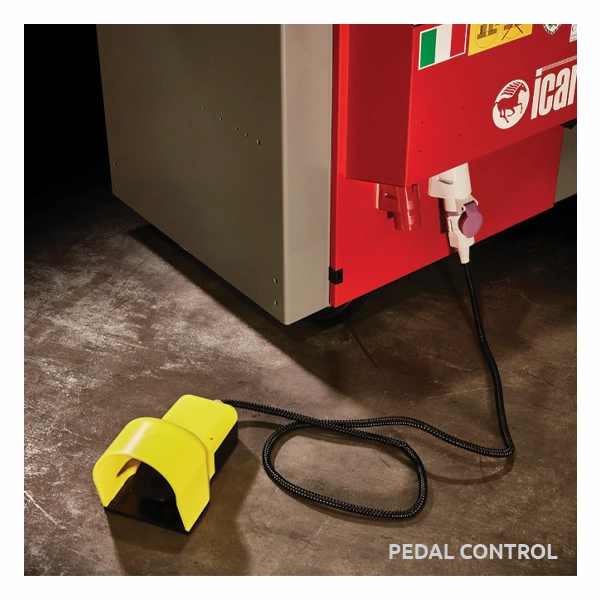

• Foot Pedal Control – enhances operator safety and allows hands-free bending for improved efficiency
• CE-Certified with Interlock Safety – meets European and global safety standards with integrated mechanical and electrical interlocks
• Compact & Mobile Design – suitable for workshops or mobile job sites with a robust chassis and side handles for easy movement
• Construction rebar shaping
• Reinforcement beam and column works
• Infrastructure and precast yards
• Heavy steel structure fabrication

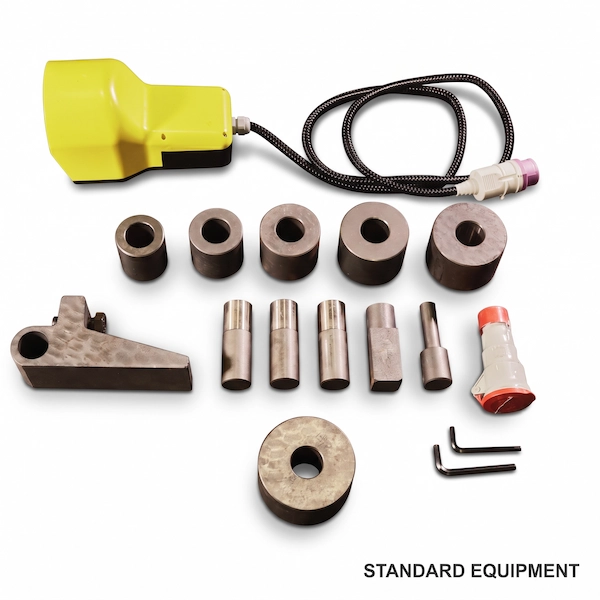

• Bar Bender
• Foot Pedal
• Standard bending pins and tools
• User Manual
| Model | P42 |
|---|---|
| Motor Power | 4kW / 5.5HP |
| Voltage | 230–400V / 3PH / 60Hz |
| Bending Capacity (65kg/mm²) | |
| Single bar | 36mm |
| Double bars | 28mm |
| Triple bars | 22mm |
| Bending Capacity (85kg/mm²) | |
| Single bar | 34mm |
| Double bars | 26mm |
| Triple bars | 22mm |
| Working Disc | 500/600mm – 12 holes |
| Grease Capacity | 8kg |
| Dimensions | 1000 × 900 × 890 mm |
| Weight | 500 kg |
| Country of Origin | Italy |
