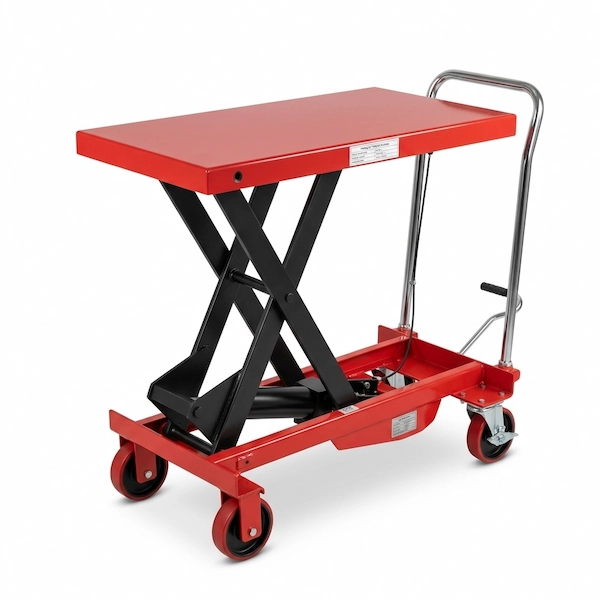

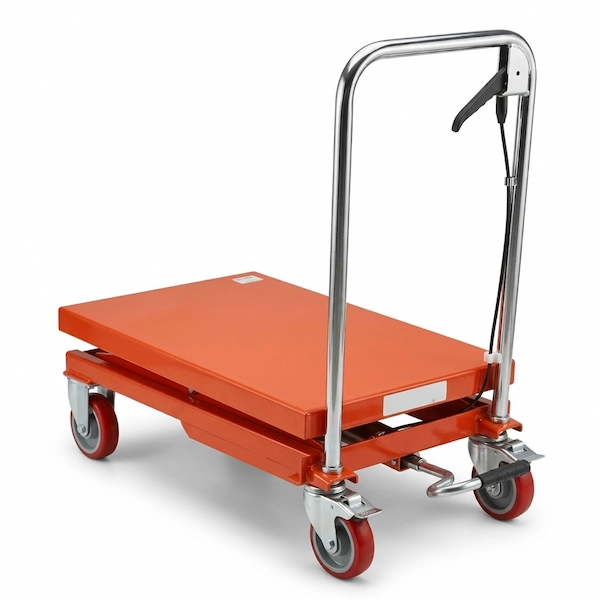

Hugo Hydraulic Scissor Lift Table, 500kg - Fab500

Mobile Lifting Table Platform Truck

The HUGO Fab500 Hydraulic Scissor Lift Table (Hydraulic Table Lifter) is an industrial-grade material handling unit precision-engineered for manufacturing, warehousing, and commercial environments. This mobile lifter functions as both a highly efficient cargo transport cart and an ergonomic workbench positioner, effectively eliminating strenuous manual bending and drastically reducing workplace strain. Driven by a manual hydraulic pump, it seamlessly hoists heavy components up to a 500 kg capacity, while a built-in safety overload bypass valve actively protects the internal mechanical system from unexpected over-capacity failures.

Designed to maintain absolute structural integrity, the unit features a spacious 810 mm x 550 mm heavy-gauge steel platform supported by an anti-wobble, single-scissor linkage that ensures strictly stable vertical lifting. Materials can be elevated to a maximum working height of 900 mm or lowered to a low-profile minimum height of 285 mm for straightforward loading. To guarantee seamless maneuverability across flat surfaces, the industrial cart is outfitted with large, low-resistance 125 mm wheels featuring dual rear lockable safety brakes. Furthermore, an ergonomic hand lever built directly into the handle provides proportional, controllable speed during descent, enabling exact positioning accuracy for heavy loads.

Key Features & Benefits:

• 500 kg Capacity: Built tough to effortlessly lift, support, and relocate machinery parts, heavy boxes, and industrial components weighing up to 500 kg.

• High 900mm Vertical Reach: Offers an impressive maximum lift height of 900 mm (0.9 m), allowing users to easily raise materials to standard workbench heights for stress-free loading and unloading.

• Large Platform 810mm x 550mm: Provides an optimized steel surface area to easily support bulky, unbalanced, or oversized loads with maximum mechanical stability.

• Flexible Foot-Pump Lifting: Features a high-efficiency hydraulic foot pedal that ensures smooth, gradual, and flexible lifting with minimal physical effort.

• Controlled Hand-Trigger Lowering: Includes a hand-operated release lever built directly into the handle for smooth, proportional, and intuitive descent speed control.

• Integrated Safety Overload Valve: Features a built-in safety relief system that protects both the hydraulic pump unit and the operator by preventing lifting if the load exceeds maximum limits.

• 125mm Wheels with Brakes: Equipped with large, low-resistance 125 mm wheels that roll smoothly under heavy weight, paired with dependable rear brakes to lock the unit firmly in place for easy maneuvering under load.

• Ergonomic and Stable Structure: Designed with a highly durable single-scissor steel linkage that eliminates wobbling, minimizing physical fatigue and repetitive-bending injuries.
