Hugo Hydraulic Scissor Lift Table, 1000kg - Fab1000

Mobile Lifting Table Platform Truck

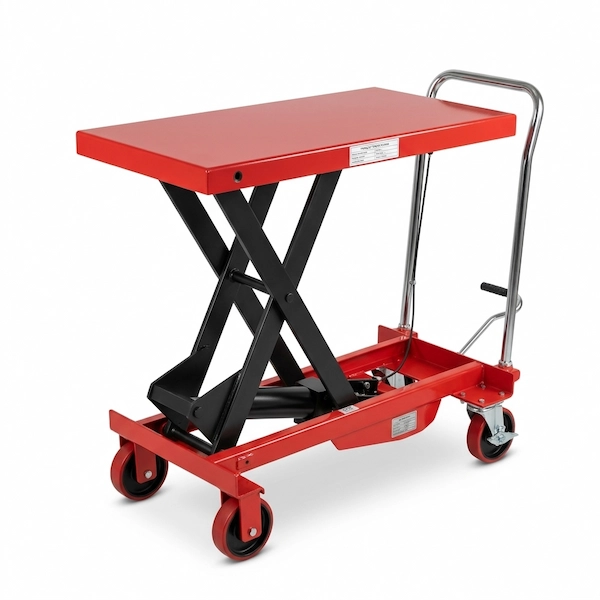

The HUGO Fab1000 is a high-capacity hydraulic scissor lift table designed specifically to transport and elevate massive industrial loads, including heavy engine blocks, manufacturing dies, and bulk components. Operating as an essential bridge between floor-level transit and elevated workstations, this unit utilizes a robust foot-operated hydraulic pump to smoothly lift up to 1000 kg (1 Ton) of material. By doing so, it proactively prevents musculoskeletal strain associated with manual lifting, ensuring direct compliance with strict workplace ergonomic standards.

To manage immense weights without structural deflection, the Fab1000 is constructed with a reinforced 1000 mm x 500 mm solid steel platform, stabilized by a heavy-gauge single-scissor mechanism. This engineered linkage allows technicians to safely raise components to a maximum working height of 1000 mm (1 meter), or lower them to a minimum clearance of 415 mm. The hydraulic circuit is fully protected by a calibrated overload bypass valve, eliminating the risk of operational failure under excess weight. Navigation across factory floors is handled by highly durable 125 mm wheels equipped with dual locking brakes, while the descent speed is strictly managed via a precision hand-lever trigger for the millimetric placement of heavy parts.

Key Features & Benefits:

• 1000 kg Capacity: Built tough to effortlessly lift, support, and relocate machinery parts, heavy boxes, and industrial components weighing up to 1 Ton.

• High 1 Meter Vertical Reach: Offers an impressive maximum lift height of 1000 mm (1 m), allowing users to easily raise materials to standard workbench heights for stress-free loading and unloading.

• Large Platform 1000mm x 500mm: Provides an optimized steel surface area to easily support bulky, unbalanced, or oversized loads with maximum mechanical stability.

• Flexible Foot-Pump Lifting: Features a high-efficiency hydraulic foot pedal that ensures smooth, gradual, and flexible lifting with minimal physical effort.

• Controlled Hand-Trigger Lowering: Includes a hand-operated release lever built directly into the handle for smooth, proportional, and intuitive descent speed control.

• Integrated Safety Overload Valve: Features a built-in safety relief system that protects both the hydraulic pump unit and the operator by preventing lifting if the load exceeds maximum limits.

• 125mm Wheels with Brakes: Equipped with large, low-resistance 125 mm wheels that roll smoothly under heavy weight, paired with dependable rear brakes to lock the unit firmly in place for easy maneuvering under load.

• Ergonomic and Stable Structure: Designed with a highly durable single-scissor steel linkage that eliminates wobbling, minimizing physical fatigue and repetitive-bending injuries.
