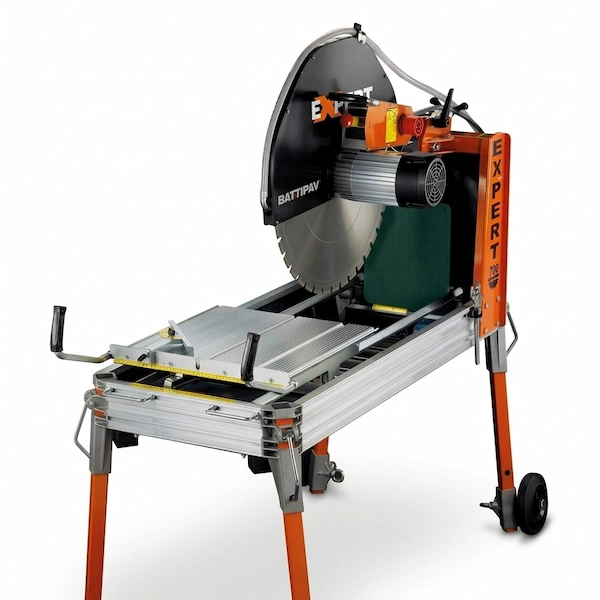

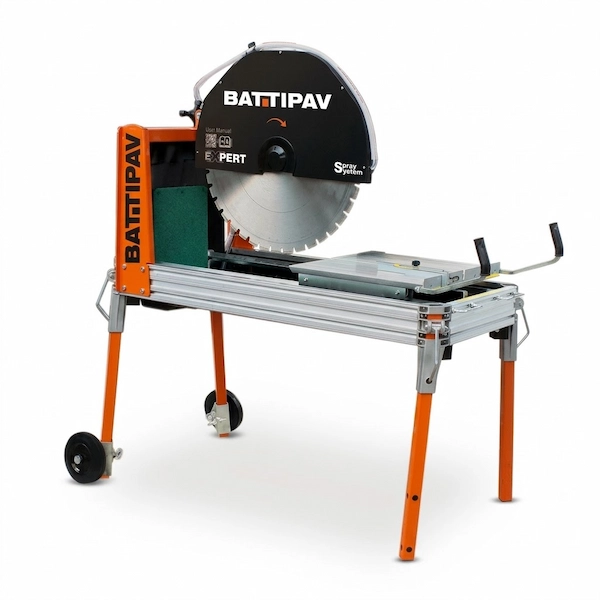

Battipav Block Cutting Saw, 700mm (28 Inch), 4kW, Made in Italy - Expert 700/3Ph

3 Phase Stone Saw 28"

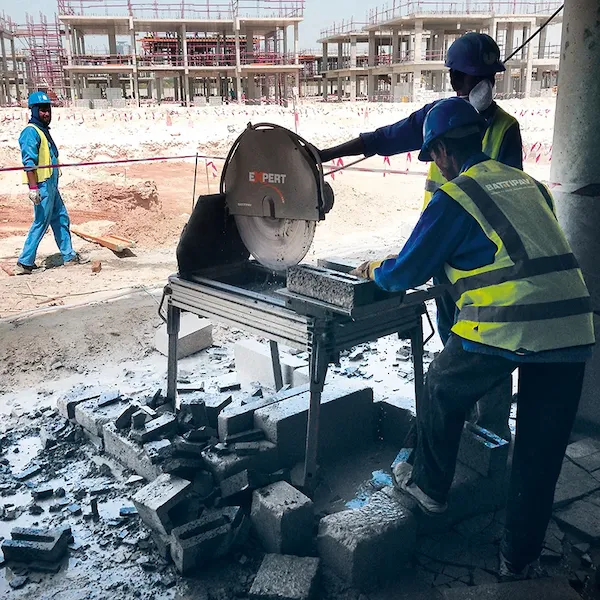

When monumental masonry projects require non-stop production and immense mechanical torque, The Battipav Expert 700 (3-Phase) is a strictly industrial, Italian-engineered block cutting saw explicitly designed for continuous, heavy-duty site operations. This machine is powered by an electric motor (3-phase / 230 V) that generates an operating power of 4 kW (5.5 hp). This high-torque powerhouse aggressively drives massive Ø 700 mm (28-inch) diamond discs at varying rotation speeds (1400 / 1700 rpm), giving operators the mechanical leverage to execute flawless straight cuts up to 550 mm in length. Contractors can confidently achieve an astonishing maximum depth of 270 mm in a single relentless pass, or up to 340 mm over two runs by effortlessly flipping the stone.

What truly sets the 3-phase Expert 700 apart is its ability to maintain workflow momentum. The motor operates on an S6 Industrial Continuous Duty Cycle (4 minutes of active cutting followed by 6 minutes of idling), allowing the internal coils to cool dynamically without requiring the operator to power down the machine. If limits are pushed, a dual-layer safety switch instantly severs the power connection the moment internal temperatures hit 160°C. The entire architecture rests on a rigid aluminum monocoque frame paired with a die-cast bridge, completely neutralizing blade vibration for absolute precision. Materials are fed safely via a smooth sliding table and an adjustable goniometer fence. Meanwhile, the cutting zone is constantly flushed by the AxT water-cooling setup powered by an S3 recycling pump drawing from a smart W-Dec decanting tray ensuring optimal blade longevity and the complete suppression of hazardous silica dust.

Key Features & Benefits:

• Massive Diamond Blade Capacity: Engineered to seamlessly host oversized 700 mm (28-inch) or 650 mm (26-inch) diamond discs, strictly tailored for heavy construction and masonry block processing.

• High-Torque 3-Phase Motor: Powered by a formidable 4 kW (5.5 HP) 230V / 3-phase electric motor, custom-built by Battipav to deliver immense, unyielding rotational torque through dense materials.

• S6 Industrial Duty Cycle: Operates on a highly efficient S6 repeating cycle (4 minutes active load, 6 minutes idle), enabling dynamic motor cooling while keeping the job site workflow uninterrupted.

• Advanced Dual-Layer Protection: Safeguards your investment via a manual reset switch and release coil that actively monitor amperage and temperature, instantly cutting power at 160°C to prevent burnout.

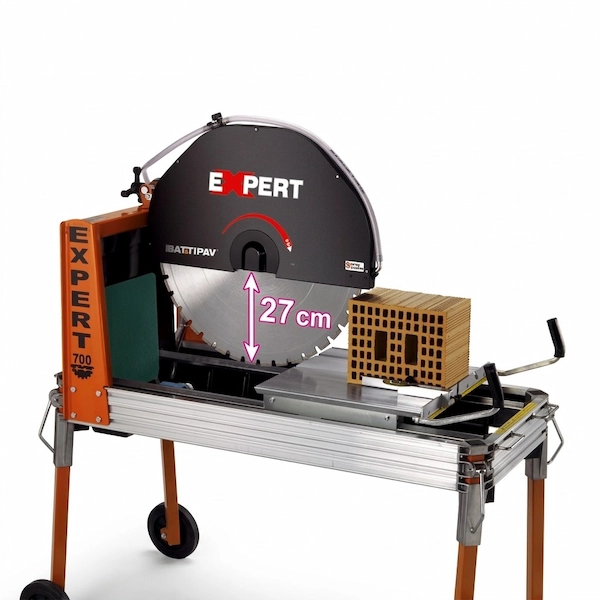

• Unrivaled Cutting Depth: Achieves a staggering straight cutting depth of 270 mm in just a single pass, and provides the capability to reach 340 mm when executing a 2-run cut (by turning the block).

• Multi-Material Precision: The ultimate high-precision cutting solution for processing thick concrete blocks, poroton bricks, heavy granite slabs, marble, and extremely dense natural stone.

• Rigid Aluminum Monocoque: The core chassis is forged from high-tech aluminum draw-plate extrusions, providing maximum structural stiffness and corrosion resistance while keeping the weight manageable.

• Die-Cast Framework Bridge: The motor group is securely mounted on a premium die-cast aluminum support arm and head assembly, intentionally designed to eliminate top weight and completely neutralize blade vibration.

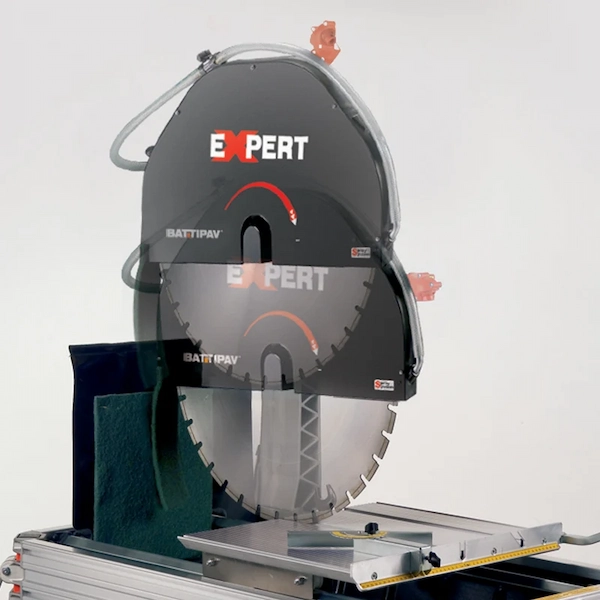

• Versatile Plunge & Step Cutting: The adjustable cutting head easily tilts for precise angle work and features a manual hand wheel with a locking lever to perfectly dial in height adjustments for plunge cuts.

• Vibration-Free Sliding Carriage: Materials are fed into the blade via a heavily reinforced, smooth-gliding manual table equipped with an ergonomic push handle, keeping the operator securely distanced from the cut.

• Table-Mounted Angle Guide: Includes a robust, fully adjustable angle fence (goniometer) to grant technicians swift, dead-accurate alignment for standard straight cuts and complex diagonal stone splitting.

• AxT Continuous Water Cooling: Deploys a submersible S3 recycling pump and strategically positioned spray nozzles to flood the diamond disc, extending blade life and suppressing hazardous airborne dust.

• W-Dec Sludge Prevention: Features an intelligently contoured water tray (Water-Decanting System) that actively prevents heavy cutting grout and sludge from accumulating around the pump intake.

• Independent Leveling Legs: Outfitted with highly durable legs that can be individually fine-tuned, guaranteeing a perfectly horizontal and rigid cutting platform across uneven dirt or gravel sites.

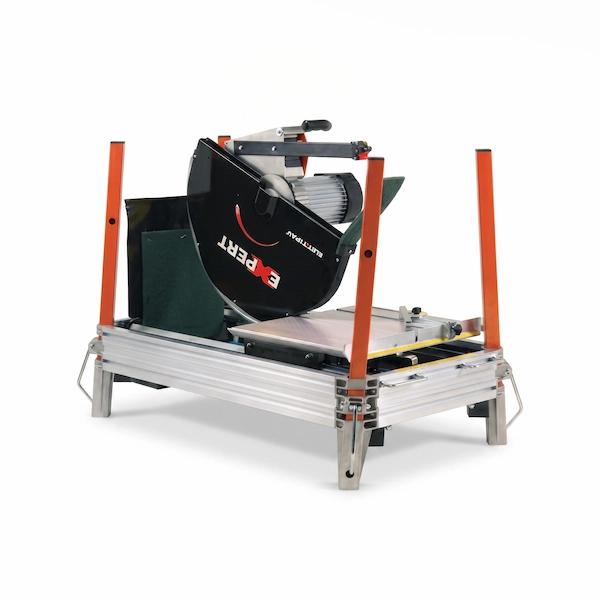

• Mobile Transport Design: Built with a highly functional wheel kit and designed to reduce its overall footprint when packed down, drastically simplifying site-to-site transportation and warehouse storage.
