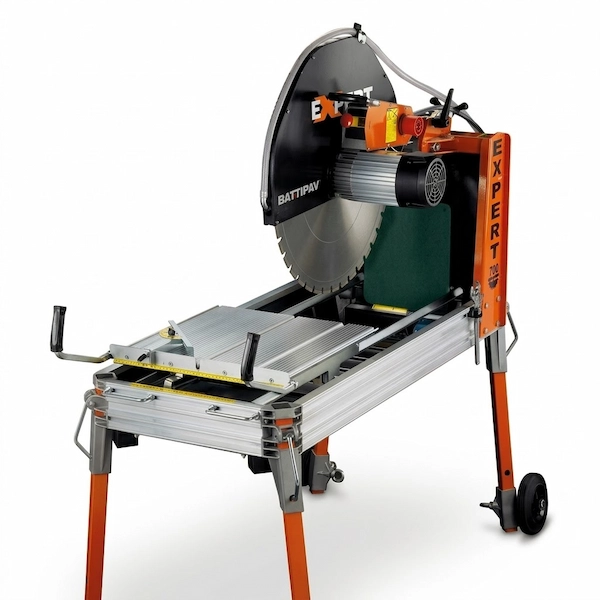

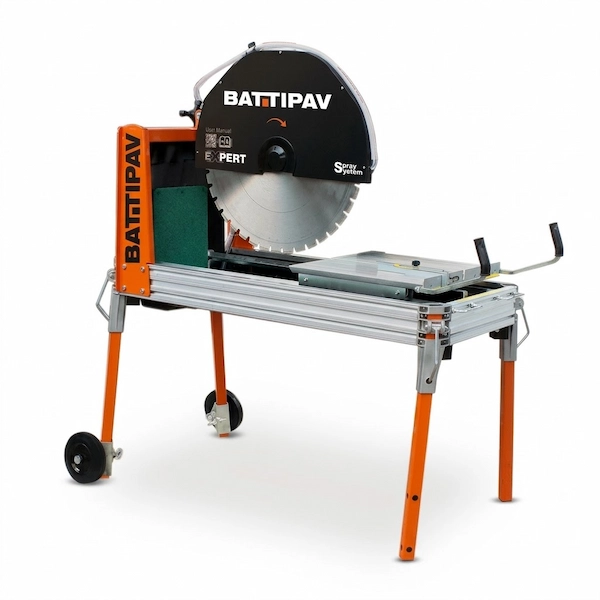

Battipav Block Cutting Saw, 700mm (28 Inch), 4kW, Made in Italy - Expert 700/400V

3 Phase Stone Saw 28"

The Battipav Expert 700 is an industrial-grade block cutting saw manufactured in Italy, specifically engineered for processing dense masonry and natural stone. Equipped with a 4 kW (5.5 HP) electric motor operating on a 400V 3-phase power supply (8 A), it provides the mechanical torque required to drive Ø 700 mm (28-inch) diamond blades at rotation speeds of 1400 / 1700 rpm. This structural configuration allows for a maximum straight cutting length of 550 mm and a cutting depth of 270 mm in a single pass. For thicker materials, the depth can be extended to 340 mm over two runs by turning the block. The motor is programmed for an S6 40% continuous duty cycle, alternating between 4 minutes of load and 6 minutes of idling, which regulates internal temperatures during heavy site operations.

The 100 kg machine is constructed using an aluminum monocoque frame paired with a die-cast aluminum cutting head to maintain rigid alignment and completely eliminate blade vibration. Material feeding is executed through a manual sliding working table and an adjustable goniometer fence for exact angle positioning. To prevent mechanical damage, a dual-layer thermal safety switch is integrated, cutting the power supply instantly if the motor coil reaches 160°C. The cutting process is supported by the AxT water-cooling system, utilizing a submersible S3 pump that draws from a 32-liter capacity tank. This system works in conjunction with the W-Dec water-decanting tray to prevent sludge buildup, ensuring continuous blade cooling and the effective suppression of airborne dust.

Key Features & Benefits:

• Massive Diamond Blade Capacity: Engineered to seamlessly host oversized 700 mm (28-inch) or 650 mm (26-inch) diamond discs, strictly tailored for heavy construction and masonry block processing.

• High-Torque 3-Phase Motor: Powered by a formidable 4 kW (5.5 HP) 230V / 3-phase electric motor, custom-built by Battipav to deliver immense, unyielding rotational torque through dense materials.

• S6 Industrial Duty Cycle: Operates on a highly efficient S6 repeating cycle (4 minutes active load, 6 minutes idle), enabling dynamic motor cooling while keeping the job site workflow uninterrupted.

• Advanced Dual-Layer Protection: Safeguards your investment via a manual reset switch and release coil that actively monitor amperage and temperature, instantly cutting power at 160°C to prevent burnout.

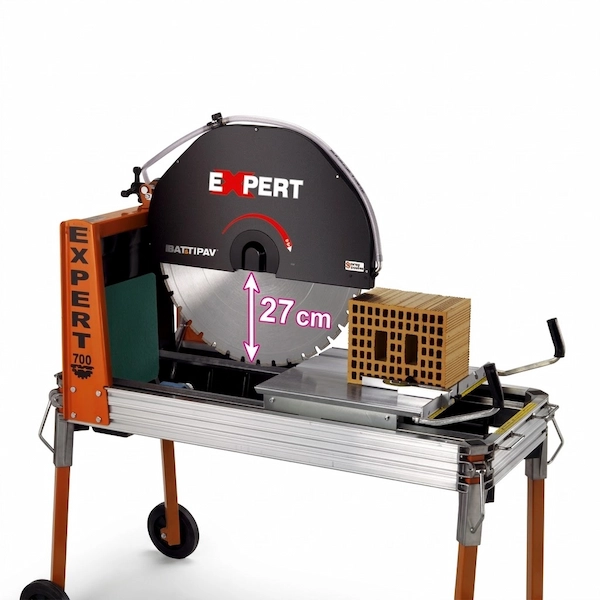

• Unrivaled Cutting Depth: Achieves a staggering straight cutting depth of 270 mm in just a single pass, and provides the capability to reach 340 mm when executing a 2-run cut (by turning the block).

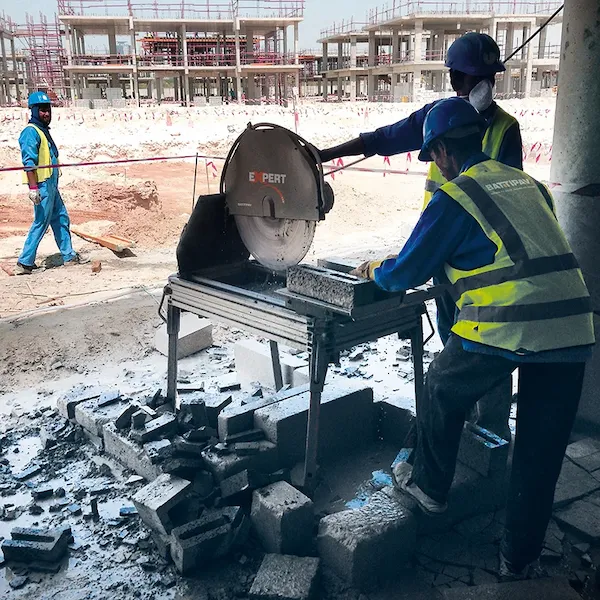

• Multi-Material Precision: The ultimate high-precision cutting solution for processing thick concrete blocks, poroton bricks, heavy granite slabs, marble, and extremely dense natural stone.

• Rigid Aluminum Monocoque: The core chassis is forged from high-tech aluminum draw-plate extrusions, providing maximum structural stiffness and corrosion resistance while keeping the weight manageable.

• Die-Cast Framework Bridge: The motor group is securely mounted on a premium die-cast aluminum support arm and head assembly, intentionally designed to eliminate top weight and completely neutralize blade vibration.

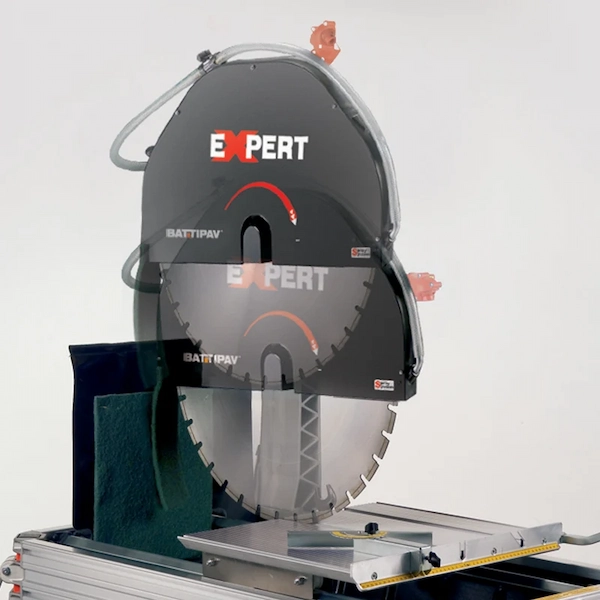

• Versatile Plunge & Step Cutting: The adjustable cutting head easily tilts for precise angle work and features a manual hand wheel with a locking lever to perfectly dial in height adjustments for plunge cuts.

• Vibration-Free Sliding Carriage: Materials are fed into the blade via a heavily reinforced, smooth-gliding manual table equipped with an ergonomic push handle, keeping the operator securely distanced from the cut.

• Table-Mounted Angle Guide: Includes a robust, fully adjustable angle fence (goniometer) to grant technicians swift, dead-accurate alignment for standard straight cuts and complex diagonal stone splitting.

• AxT Continuous Water Cooling: Deploys a submersible S3 recycling pump and strategically positioned spray nozzles to flood the diamond disc, extending blade life and suppressing hazardous airborne dust.

• W-Dec Sludge Prevention: Features an intelligently contoured water tray (Water-Decanting System) that actively prevents heavy cutting grout and sludge from accumulating around the pump intake.

• Independent Leveling Legs: Outfitted with highly durable legs that can be individually fine-tuned, guaranteeing a perfectly horizontal and rigid cutting platform across uneven dirt or gravel sites.

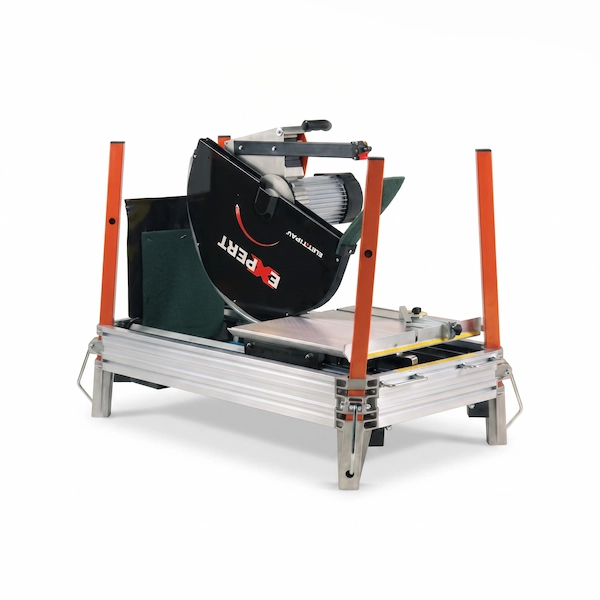

• Mobile Transport Design: Built with a highly functional wheel kit and designed to reduce its overall footprint when packed down, drastically simplifying site-to-site transportation and warehouse storage.

Blade not included
