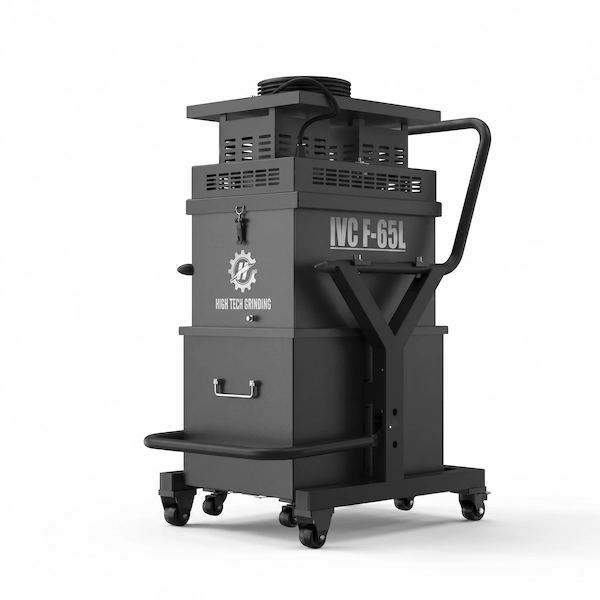

Xingyi Concrete Dust Extractor, 3 HP, 65 Litres - IVC-F65L

Industrial Dust Collection Vacuum

The Xingyi IVC-F65L Dust Collection Vacuum directly extracts hazardous concrete dust and heavy floor slurry using a high-performance 3 HP (2.2 kW) AMETEK motor operating on a standard 220 V single-phase electrical system. Engineered specifically to support small and medium-sized planetary grinders, this 68 kg unit generates a powerful vacuum pressure of 20 kPa (200 mbar) and an exceptional maximum airflow capacity of 358 m³/h (225 CFM). Inside the robust all-metal chassis, the system utilizes an advanced fiberglass filtering material spanning 1.5 m² with an H13 HEPA rating. This certified filtration perfectly traps 99.9% of microscopic particles down to 0.3 micrometers, ensuring a completely safe, dust-free environment for operators. To maintain continuous peak suction without lengthy interruptions, the exterior is fitted with a manual shake-back handle that instantly clears caked dust from the internal oscillating screen.

Structurally, the vacuum is built to eliminate the fragile plastic components often found in competing models, utilizing a heavy-duty steel frame equipped with premium universal industrial casters for flawless job site maneuverability. Emptying the massive 65 L dust collection box is drastically simplified through a patented mechanical lever lifting mechanism that securely drops the barrel for rapid disposal while maintaining excellent leak-proof sealing during operation. Running at a controlled noise level between 80 and 90 dBA and protected by a built-in electrical overload reset switch, this compact powerhouse perfectly connects via a 50mm hose to highly recommended XINGYI and HTG grinding models such as the GX-500, GX-550, HTG-460, and XY-250D, radically minimizing manual cleanup labor.

Key Features & Benefits:

• High-Performance AMETEK Powertrain: Equipped with a robust 3 HP (2.2 kW) AMETEK industrial motor designed as a strong, silent-type unit that delivers steady power and boasts a lifespan up to three times longer than ordinary commercial vacuum motors.

• Exceptional Suction & Airflow Dynamics: Generates a deep 20 kPa vacuum pressure lift and a massive 358 m³/h airflow capacity, rapidly moving large volumes of fine concrete dust and heavy debris away from the grinder to keep commercial jobsites perfectly clean.

• Certified H13 HEPA Fiberglass Filtration: Built with a premium imported fiberglass filter featuring a 1.5 m² surface area that reliably traps 99.9% of microscopic hazardous silica dust particles down to 0.3 micrometers for total operator protection.

• Manual Shake-Back Cleaning Mechanism: Features an externally mounted mechanical shaking handle linked to an internal oscillating screen, allowing operators to quickly remove caked surface dust and instantly restore peak suction without opening the unit.

• Patented Mechanical Lever Lifting System: Utilizes a highly innovative, heavy-duty lever lifting structure on the vacuum frame that physically lowers the massive 65 L collection barrel, enabling fast, effortless dust removal while ensuring a strict leak-proof operational seal.

• Heavy-Duty All-Metal Architecture: Outperforms standard plastic alternatives by utilizing a sturdy, all-metal steel chassis designed to withstand the harshest construction environments, complemented by ergonomic push-pull handlebars for comfortable navigation.

• Universal Industrial Mobility: Outfitted with heavy-duty universal casters featuring built-in brakes, ensuring the 68 kg machine is highly maneuverable across uneven concrete surfaces while maintaining a stable footprint when parked.

• Integrated Overload Safety Protection: Incorporates a dedicated safety reset switch that automatically cuts power during unexpected electrical surges or extreme overheating, allowing the unit to restart safely without damaging internal components.

• Optimized Planetary Grinder Integration: Delivers a highly compact airflow rating perfectly calibrated for direct 50 mm hose connection to small and medium-scale edge grinders, specifically recommended for models like the GX-550, GX-750, and HTG-550plus.

• Optimized Noise Control: Structurally designed to balance heavy-duty industrial suction capabilities with standard hearing-safe noise limits, operating strictly between 80 and 90 dBA for compliance in sensitive indoor commercial zones.
