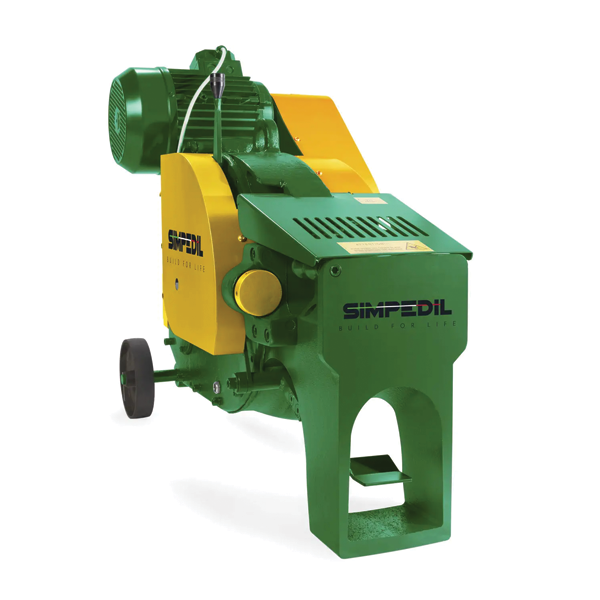

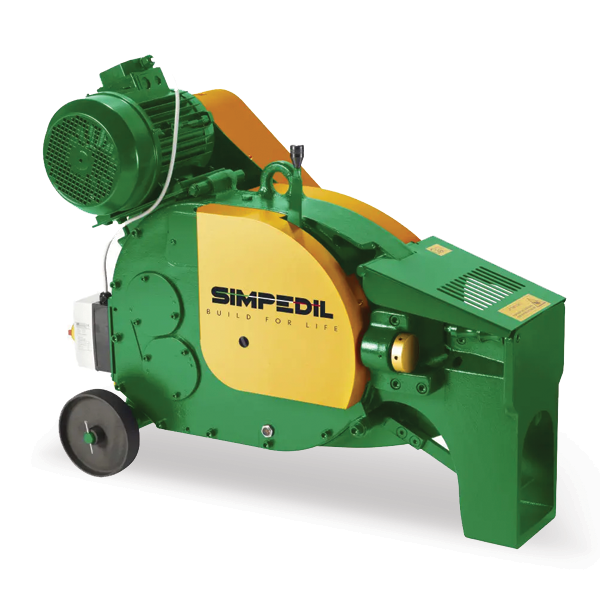

Steel Bar Cutter
When precision, endurance, and nonstop productivity are essential on the job site, the SIMPEDIL C44 EVO delivers a cutting experience built for industrial reliability. Powered by a high-torque 3kW / 4HP motor operating on 380V 3-phase, this machine produces clean, vibration-free cuts on reinforcement steel up to Ø34mm, making it ideal for continuous-duty applications in demanding environments.
Its monoblock spheroidal cast-iron frame ensures exceptional structural rigidity, reduced vibration, and long-term mechanical stability even under extreme cutting loads. The combination of four-edge hardened steel blades, a precision screw bar locator, and a manual 3-point lubrication system guarantees perfect alignment, faster cutting cycles, and extended service life with minimal downtime.
With an integrated thermal overload protection system, operator safety guard, and noise & vibration reduction design, the C44 EVO combines power, safety, and efficiency in one compact industrial solution. Whether used in rebar yards, precast factories, bridge projects, or large construction sites, it consistently delivers high-output steel processing with unmatched reliability. Complete your reinforcement workflow with our specialized [Bar Bender Machines], precision [Bar Cutting Machines], and durable [Rebar Equipment], available within the industry-leading [Construction Equipment] collection.
• High‑Torque Motor (3kW / 4HP): Powerful electric motor designed for continuous operation on 380V, 3-phase systems.
• Robust Cast Iron Monoblock Frame: Solid, vibration-resistant body for optimal stability with no welding joints.
• Four-Sided Hardened Steel Blades: Long-lasting, reversible blades deliver up to 40 precise cuts per minute.
• Screw Alignment Locator: Ensures straight, perpendicular cuts by aligning single or multiple bars accurately.
• Simplified Lubrication System: Three greasing points with manual pump enhance longevity and minimize maintenance.
• Noise & Vibration Reduction: Two reduction mechanisms minimize blade stress and operating noise for user comfort.
• Compact & Portable Design: Comes with wheels and bar roller for ease of use and movement at job sites.
• Construction and infrastructure projects
• Rebar fabrication workshops
• On-site steel cutting operations
• Precast concrete factories
• Bar Cutter Machine
• Electric foot pedal
• Set of hardened cutting blades
• Tool kit and instruction manual
| Model: C44 EVO | |
|---|---|
| Motor Power: 3kW | 4HP |
| Voltage: 380V – 3‑Phase – 60Hz | |
| Cutting Capacity (65 kg | mm²): |
| • 1 bar: 34 mm | |
| • 2 bars: 28 mm | |
| • 3 bars: 22 mm | |
| Cutting Capacity (85 kg | mm²): |
| • 1 bar: 32 mm | |
| • 2 bars: 22 mm | |
| • 3 bars: 18 mm | |
| Cuts per Minute: 40 | |
| Oil Capacity: 2 kg | |
| Dimensions: 980 × 560 × 770 mm | |
| Weight: 405 kg | |
| Country of Origin: Italy |
