Steel Bar Bender

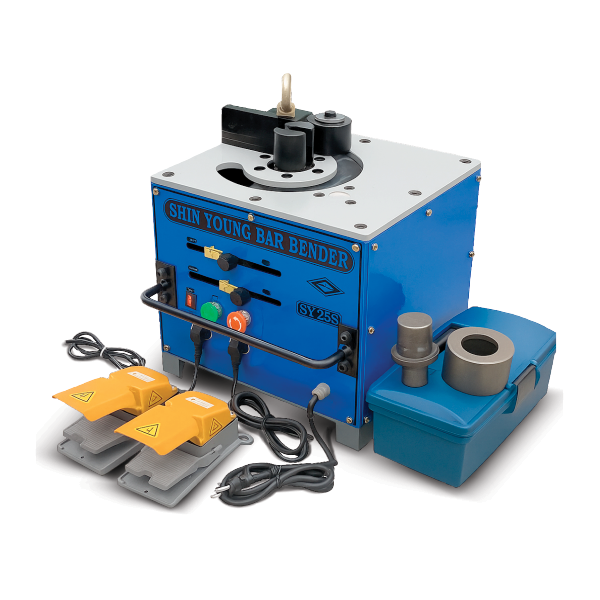

Engineered for high-precision bending in space-restricted or mobile job sites, the SHIN YOUNG SY‑25S Portable Rebar Bender offers the perfect balance of power, portability, and consistent output. Powered by a robust 2kW (2.7HP) motor, it ensures smooth torque and accurate results when bending steel bars up to 25mm in diameter.
The machine features a dual preset angle locking system, along with dual-knob angle adjustment, giving operators full control to bend stirrups, cages, or custom shapes with repeatable accuracy. Its compact steel body (92 kg) is reinforced to withstand jobsite impacts, and the dual start button system enhances operator safety by preventing unintended activation.
Whether on-site or in fabrication shops, the SY‑25S stands out with its multi-diameter bending capacity (4×10mm, 3×13mm, 2×16mm, or single 25mm), making it suitable for a wide range of reinforcement applications. The two-person carry handles, smooth motor balance, and low-vibration build support all-day use without fatigue.
Built with Korean engineering standards, this machine is designed for long service life, minimal maintenance, and reliable bending performance in the most demanding conditions.
• Powerful 2 kW Motor (220 V, 60 Hz): Provides stable torque and smooth bending for up to 25 mm rebars.
• Dual Preset Angle Locks: Save time and effort with two fixed angle settings for repetitive bends.
• Easy Dual-Knob Angle Adjustment: Quick and precise control for different bending angles.
• Dual Start Button System: Prevents accidental starts and enhances operator safety.
• Consistent Multi-Bar Bending: Capable of bending up to 4 × 10 mm or 2 × 13 mm rebars with uniform results.
• Portable Two-Person Design: 92 kg body with side handles for convenient transport on construction sites.
• Heavy-Duty Steel Construction: Rugged build for continuous operation in demanding industrial conditions.
• Korean-Made Reliability: Engineered and manufactured in Korea for precision, strength, and durability.
• On-site rebar bending and shaping
• Civil and structural construction works
• Precast concrete production factories
• Bridge and road reinforcement jobs
• Electric Rebar Bender (Model SY‑25S)
• Set of standard bending pins and tools
• User manual
| Model | SY‑25S |
|---|---|
| Power | 2kW (2.7 HP) |
| Voltage | 220V, 60Hz, Single Phase |
| Max Bending Capacity | 25 mm |
| Bending Speed | 4 seconds |
| Bending Performance | |
| – 4 bends (10mm), 2 bends (13mm), 1 bend (16–25mm) | |
| Roller Capacity | |
| – Up to 4 bars (10–13mm), 2 bars (16–19mm), 1 bar (22–25mm) | |
| Roller Sizes | |
| – Center | Stirrup (10–13mm), 70 (16-25mm) |
| – Rotating | 95 (10–19mm), 80 (22–25mm) |
| Weight | 92 kg |
| Dimensions | 450×410×530 mm |
| Origin | Korea |
