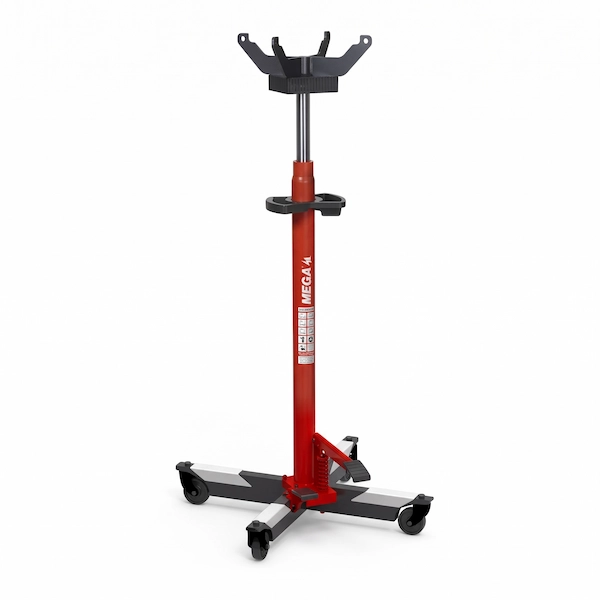

Mega High Lift Transmission Jack, 1.2 Ton, Made in Spain - TRS1200

Telescopic Transmission Jack 1.2 Ton

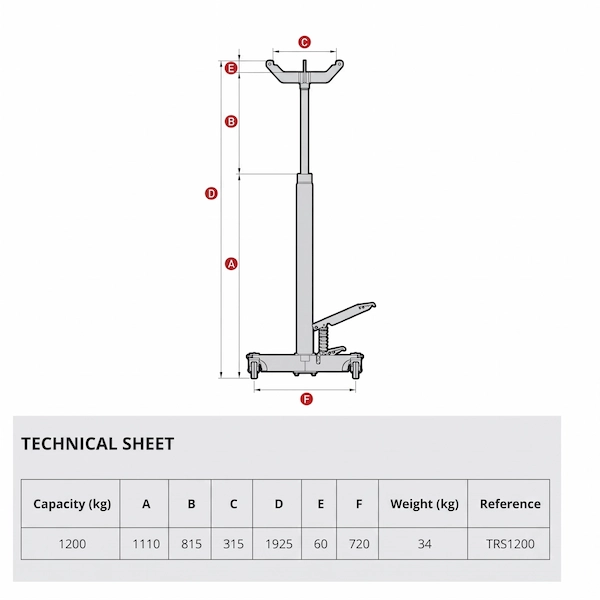

Removing and installing heavy automotive components inside inspection pits or underneath elevated lifts requires precise vertical support and absolute load stability. The Mega TRS1200 is a professional-grade hydraulic transmission jack engineered specifically for heavy-duty industrial and automotive workshops. Manufactured in Spain, this unit features a robust 1.2-ton (1200 kg) lifting capacity, allowing technicians to confidently handle heavy commercial gearboxes, vehicle transmissions, and engine blocks. The mechanical structure comprises a 1110 mm hydraulic base column that extends an additional 815 mm, reaching a total working height of 1925 mm. This specific vertical reach is optimized to interface directly with vehicles positioned on standard shop lifts or suspended over deep garage pits.

Operational safety and ergonomic control form the mechanical core of the TRS1200. The lifting and lowering actions are governed entirely by a dual foot pedal system, leaving the operator’s hands completely free to align and secure mechanical components precisely. The internal hydraulic circuit is protected by an overload safety valve and a mechanical route limiter to prevent cylinder over-extension. During descent, a Load Control System (LCS) works in tandem with a "dead man" safety mechanism, ensuring that the heavy load lowers smoothly and stops instantly if the operator loses physical contact with the controls. The entire unit rests on a 720 mm wide chassis with four pivoting wheels, providing necessary floor maneuverability while maintaining strict structural balance under maximum load.

Key Features & Benefits:

• European Heavy-Duty Performance (1.2 Ton): Made in Spain and explicitly engineered for vertical reach inside deep inspection pits or beneath shop lifts. It delivers a robust 1200 kg lifting capacity for safely removing and installing commercial gearboxes and engine blocks with complete structural stability.

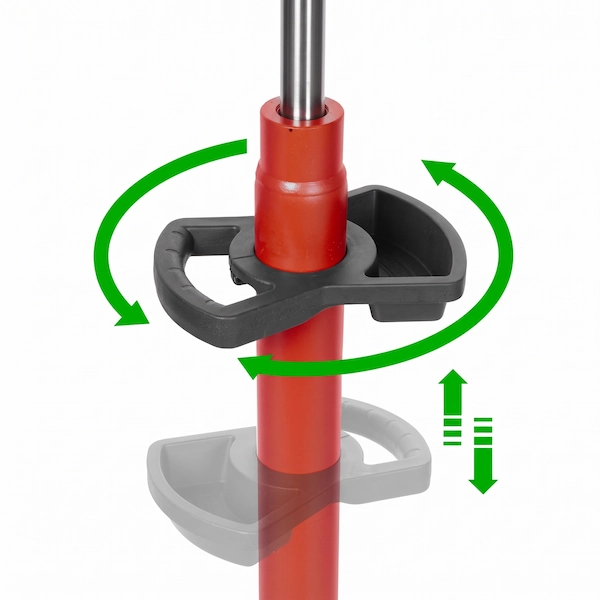

• Hands-Free Dual Pedal Operation: A hydraulic control system featuring two distinct foot pedals manages the lifting and lowering phases, leaving the technician’s hands entirely free to align components. This is complemented by an adjustable rotatory handle with a built-in screw tray for maximum operational ergonomics.

• Integrated Hydraulic Safety System: Protected by an overload safety valve and a mechanical route limiter to prevent over-extension. It incorporates a Load Control System (LCS) working in tandem with a "dead man" mechanism, ensuring smooth descents and immediate operational halt if physical control is lost.

• Adjustable Platform Support: Features a fully adjustable top mounting base, allowing mechanics to firmly secure and align uneven transmission housings directly before any movement occurs.

• Maximum Stability & Chassis Protection: The unit rests on a wide 720 mm base equipped with four pivoting caster wheels for effortless floor maneuverability. The exterior is fitted with high-visibility rubber guards to prevent accidental scratches to the vehicle and reduce tripping hazards in the workshop.
