Mega Hydraulic Bottle Jack, 50 Ton, Made in Spain - BR50

Hydraulic Bottle Jack 50 Ton

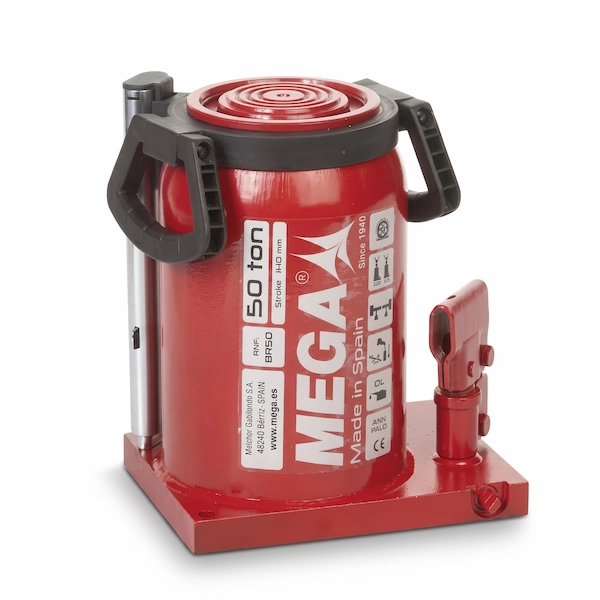

Managing heavy industrial equipment requires a hydraulic tool capable of delivering high-load performance with consistent stability. The Mega BR50 provides a highly effective lifting capacity of 50-ton (50,000 kg), specifically designed for heavy automotive service, agriculture, and general industrial maintenance. Manufactured in Spain, the jack is built upon an integral monoblock architecture where the external base, pressure cylinder, and oil reservoir are structurally fused into a single welded unit. This engineering method prevents fluid leakage paths and ensures the hydraulic system remains secure under sustained high-pressure loads. With a total weight of approximately 17 kg, the unit integrates a rotating transport handle that facilitates ergonomic positioning and acts as a direct support for storing the telescopic lever.

The vertical operating profile of the BR50 is calibrated to accommodate heavy machinery with a low-clearance starting point of 260 mm. During operation, the primary hydraulic cylinder provides an efficient piston stroke of 140 mm, allowing the equipment to smoothly reach a total extended height of 400 mm. To enhance operational flexibility in confined industrial environments, the jack features a unique rotating pump socket system that enables technicians to pump the lever from various angles, maintaining full pressure capacity in both vertical and horizontal orientations. Safety mechanisms are systematically integrated into the hydraulic network; a built-in overload safety valve limits operation beyond the designated capacity, while a mechanical stroke limiter and safety oil by-pass system ensure the internal ram remains precisely within its maximum operational limits to prevent structural malfunctions.

Key Features & Benefits:

• 50-Ton High-Load Capacity: Rated and tested to safely elevate and sustain continuous vertical payloads up to 50 Tons (50,000 kg), providing a highly reliable lifting solution for industrial maintenance and heavy agricultural equipment.

• Integral Monoblock Body: The base, pressure cylinder, and fluid reservoir form one single permanently welded body, which eliminates common structural leakage points and significantly enhances the overall integrity of the hydraulic system.

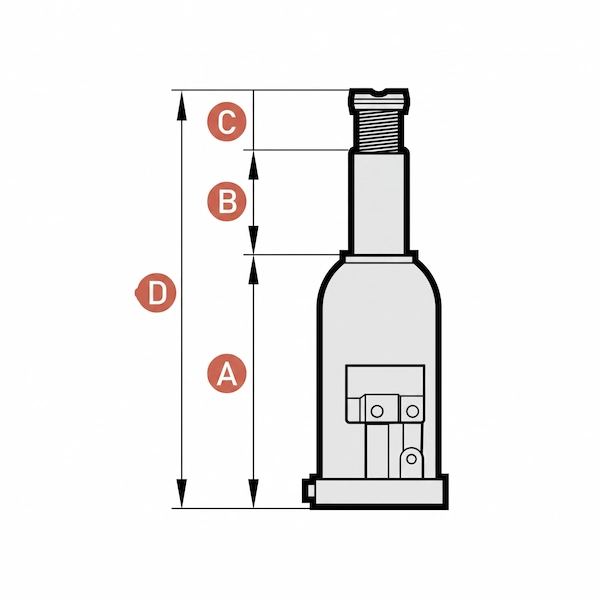

• Dynamic Lifting Range: Designed with an effective lifting profile that requires a 260 mm minimum clearance, extending upward steadily to a maximum apex of 400 mm to provide necessary undercarriage access for repairs.

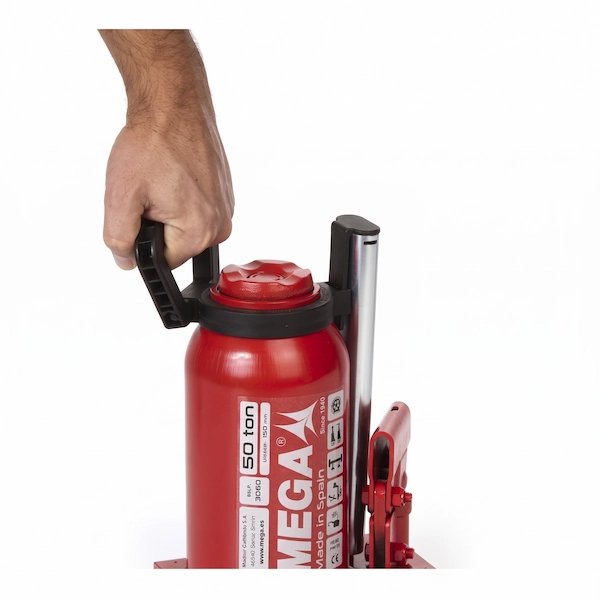

• Rotating Carrying Handle: Outfitted with an integrated rotary transport handle that facilitates the physical movement of the 17 kg unit, while simultaneously serving as a secure structural support to place the telescopic handle for organized storage.

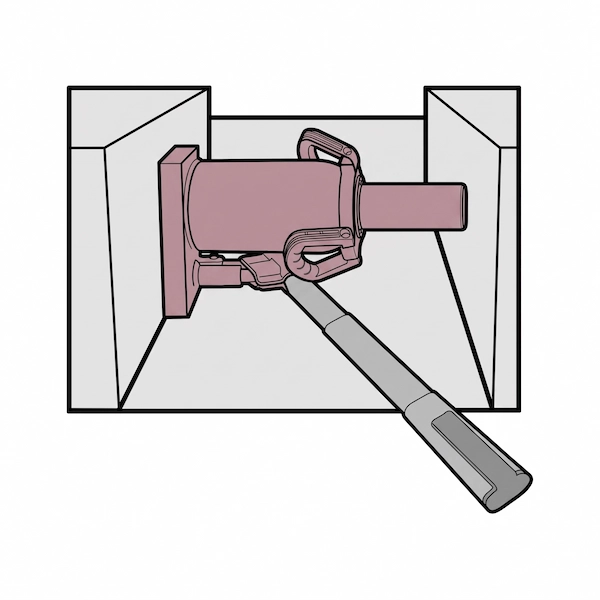

• Dual Operation Compatibility: Engineered with advanced internal fluid dynamics that allow the jack to maintain its full-pressure lifting operation safely and efficiently, whether positioned upright vertically or laid flat horizontally.

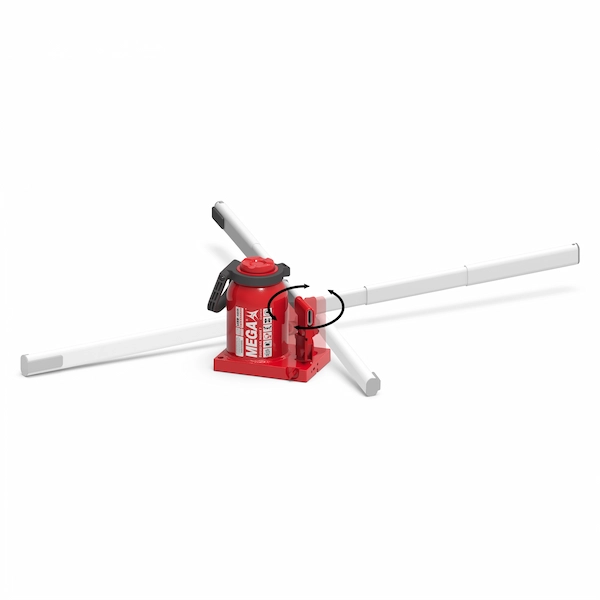

• Multi-Directional Rotating Pump: Features an adaptable rotating pump socket mechanism that grants mechanics the necessary flexibility to insert the pumping lever and operate the unit from multiple angles in restrictive workspaces.

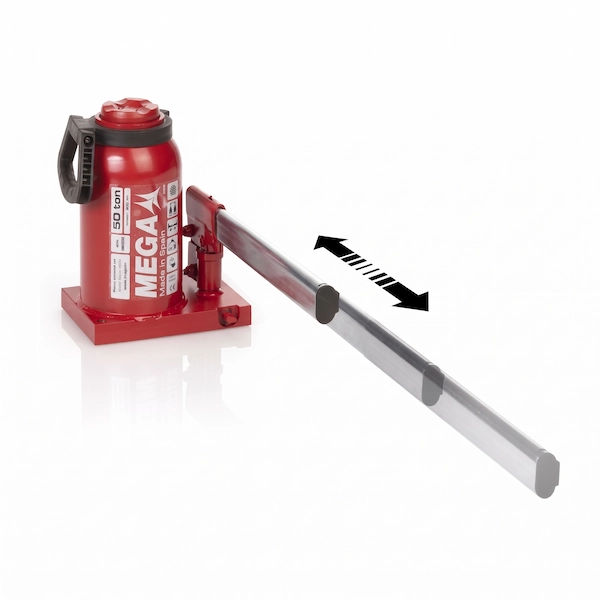

• Telescopic Leverage Handle: Supplied with a durable, zinc-plated three-piece telescopic lever that acts to minimize manual physical effort during the lifting process and conveniently collapses for compact tool-chest storage.

• Extension Screw Spindle: Incorporates an adjustable threaded top saddle designed to speed up the initial load approach to the vehicle chassis, mathematically extending the overall lifting travel for added versatility.

• Automatic Overload Safety Valve: Fortified with a factory-calibrated pressure relief valve that automatically safeguards the internal hydraulic lines from structural damage by rejecting weight limits exceeding the designated 50-ton capacity.

• Mechanical Hydraulic Stroke Limiter: Equipped with an integrated route limiter that physically halts the upward progress of the ram at its peak, actively preventing the internal piston from overextending and damaging the cylinder walls.

• Safety Oil By-Pass System: Provides an essential secondary layer of internal protection by intelligently redirecting hydraulic fluid, which keeps the ram within safe operational stroke limits and eliminates the risk of internal blowouts.
