Portable Cut-Off

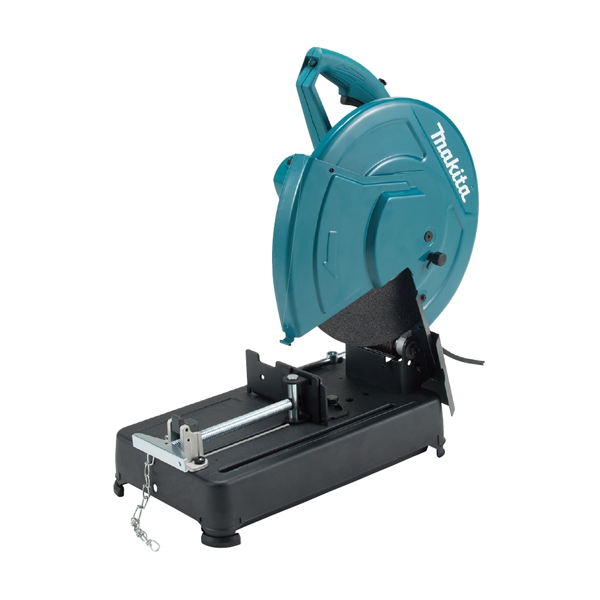

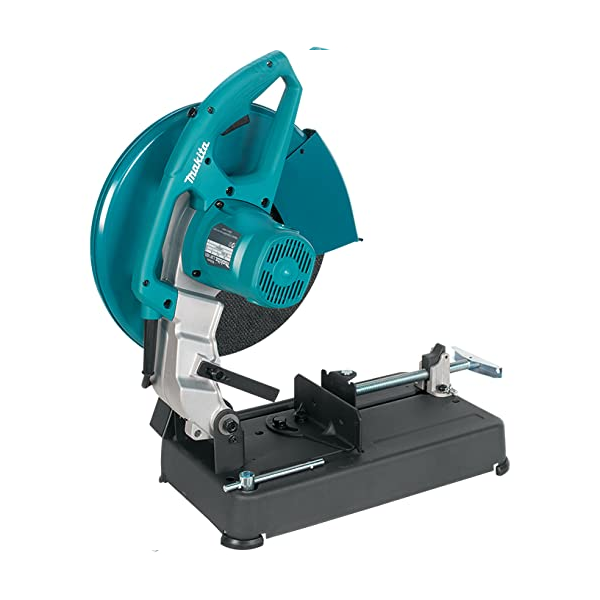

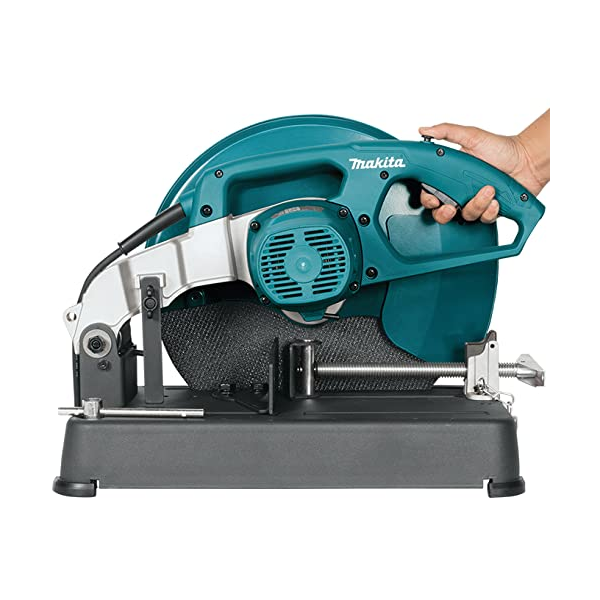

Engineered for demanding metal cutting applications, the Makita LW1401 Portable Cut-Off combines raw power with safety-driven design to support industrial workshops and on-site metal fabricators. Featuring a high-performance 2,200W motor and an impressive 3,800 RPM speed, this saw handles tough cutting jobs with ease, delivering consistent performance on steel bars, pipes, and structural profiles.
With its large 355 mm (14") cutting wheel, the machine slices cleanly through round stock up to 127 mm and rectangular profiles up to 70×233 mm, making it ideal for both deep cuts and repetitive tasks. Operators benefit from the quick-release vise for faster clamping, the chain lock system for safe transport, and the integrated spark guard for added protection in busy environments. Discover more options in our Cut-Off Saws and explore the full range in our Grinding & Cutting collection.
• High-Power 2,200W Motor: Delivers a strong 3,800 RPM for fast, stable, and consistent metal cutting performance.
• 355 mm (14″) Cutting Wheel Capacity: Supports large abrasive wheels for deep and efficient cuts.
• Large Cutting Capacity: Easily cuts round materials up to 127 mm and rectangular profiles up to 70 × 233 mm.
• Quick Release Vise System: Speeds up repetitive cutting tasks while ensuring firm material clamping.
• Chain Locking Mechanism: Secures the saw head safely during transport and storage.
• Integrated Spark Guard Protection: Deflects sparks away from the operator for enhanced jobsite safety.
• Lock-Off Safety Button: Prevents accidental start-up during handling or transport.
• Shaft Lock Feature: Allows fast and easy abrasive wheel replacement with minimal downtime.
• Built-In Carry Handle: Improves portability and ease of movement on construction sites.
• Heavy-Duty Metal Cutting Design: Built for continuous operation in demanding industrial environments.
• Metal fabrication and pipe cutting
• Steel structure and welding workshops
• Industrial maintenance operations
• On-site construction and installation works
• Portable cut-off machine
• Abrasive cut-off wheel
• Socket wrench
• User manual
| Model | LW1401 |
|---|---|
| Power | 2,200 W |
| Voltage | 220V |
| Frequency | 50/60 Hz |
| Wheel Diameter | 355 mm (14″) |
| Hole Diameter | 25.4 mm (1″) |
| Wheel Thickness | 3 mm (1/8″) |
| No Load Speed | 3,800 rpm |
| Capacity (Round Stock) | 127 mm (5″) |
| Capacity (Rectangular Stock) | 70 × 233 mm |
| Power Cord Length | 2.5 m |
| Dimensions (L×W×H) | 500 × 290 × 620 mm |
| Net Weight | 16.6 kg |
| Country of Origin | China |
