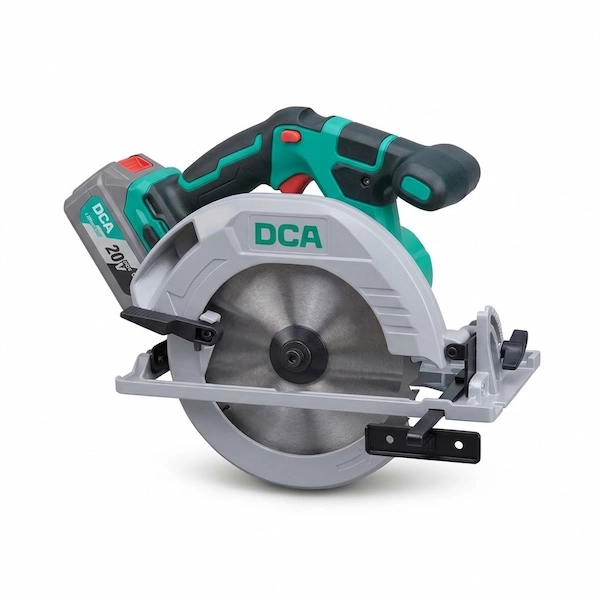

DCA Cordless Brushless Circular Saw, 20V, 185mm (7-Inch) - ADMY125 BM

Brushless Circular Saw 20V

The DCA ADMY125 BM is an advanced 20V cordless circular saw engineered to provide precise, unhindered mobility for professional woodworking, structural framing, and carpentry tasks. Driven by a high-efficiency brushless motor, this power tool maximizes electrical conversion, significantly extending the runtime of its dual 4.0Ah lithium-ion batteries while entirely eliminating the mechanical friction associated with traditional carbon brushes. Generating a rapid no-load speed of 5000 RPM, the motor seamlessly drives the 185 mm (7-1/4") blade through dense lumber, achieving a maximum cutting capacity of 65 mm at a standard 0-degree angle and 45 mm during 45-degree bevel operations.

Weighing Approx. 4.1 kg, the structurally optimized chassis incorporates an aluminum alloy die-cast baseplate, ensuring absolute structural rigidity and smooth material gliding across varying wood surfaces. Operator safety and control are prioritized through a comprehensive system including an integrated electronic brake, an anti-restart mechanism, and a mechanical lockout switch, which collectively protect the user from accidental blade engagements and electrical faults. Designed for the modern job site, this cordless ecosystem delivers the torque and depth capacity of a corded saw with the unrestricted maneuverability required in confined architectural spaces.

Key Features & Benefits:

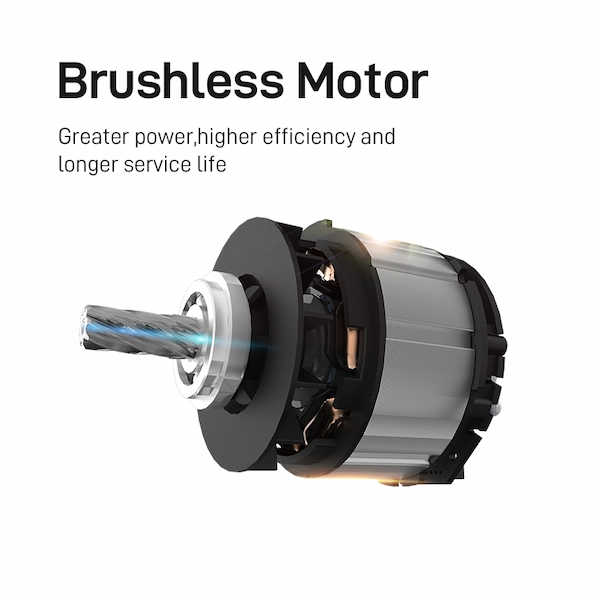

• High-Efficiency Brushless Architecture: Eliminates internal carbon brush friction, resulting in superior energy transfer, extended battery lifecycles, and a prolonged overall mechanical lifespan. This allows the 850W maximum power output to be utilized fully for demanding cutting applications without premature thermal buildup.

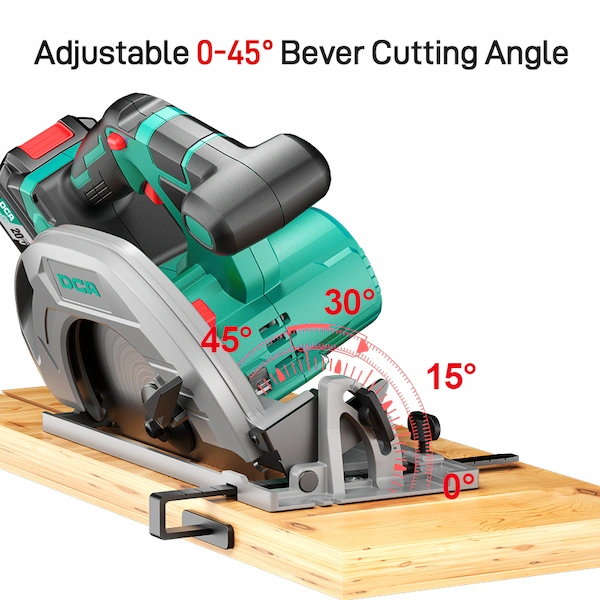

• Precision Bevel & Depth Calibration: Features a highly responsive, tool-free adjustment mechanism. Operators can easily modify the cutting depth up to 65 mm for thick lumber and seamlessly tilt the baseplate to execute precise angled cuts up to 45 degrees, ensuring high versatility across varied framing tasks.

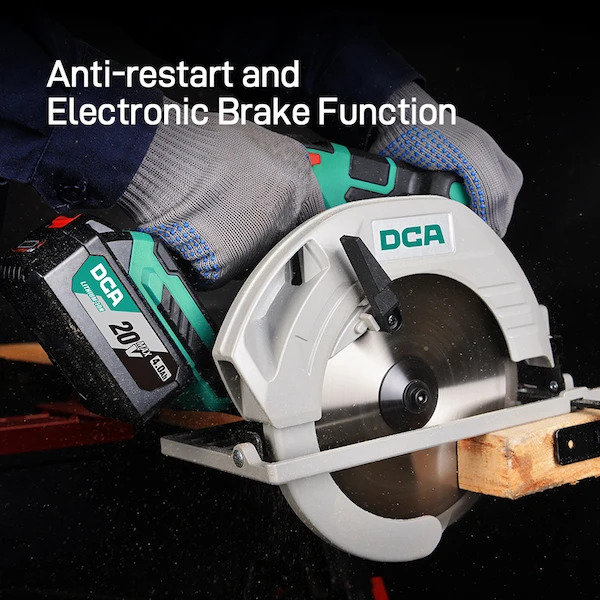

• Electronic Braking & Anti-Restart System: Prioritizing operator security, the internal circuitry immediately halts blade rotation the exact moment the trigger is released. Additionally, the anti-restart function prevents unexpected motor activation during battery replacements, maintaining strict compliance with workplace safety protocols.

• Die-Cast Aluminum Baseplate: The structural foundation of the saw utilizes a rigid aluminum alloy die-casting. This highly durable baseplate resists bending under heavy downward pressure and provides an exceptionally smooth surface to glide across wooden workpieces without marring or scratching the material.

• Continuous Cordless Productivity: Supplied as a complete power ecosystem, the tool includes two high-capacity 20V (4.0Ah) lithium-ion batteries and a dedicated 2A charger. This dual-battery configuration allows for continuous, uninterrupted operation by effectively rotating charging cycles throughout the workday.

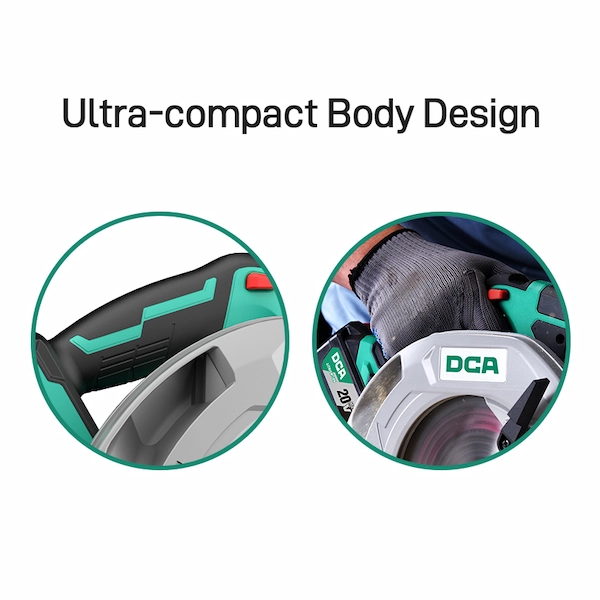

• Ergonomic & Operator-Focused Balance: Weighing merely Approx. 4.1 kg, the tool is meticulously balanced to minimize user fatigue during prolonged continuous use. The rubberized handle provides a secure, vibration-dampening grip, granting the operator superior maneuverability in confined or awkward spatial conditions.

• Mechanical Lockout Switch: Integrates a dedicated single-key locking button situated adjacent to the main trigger. This physical barrier ensures the motor cannot be engaged accidentally during transit or when placing the tool on a workstation, effectively preventing potential cutting hazards.
