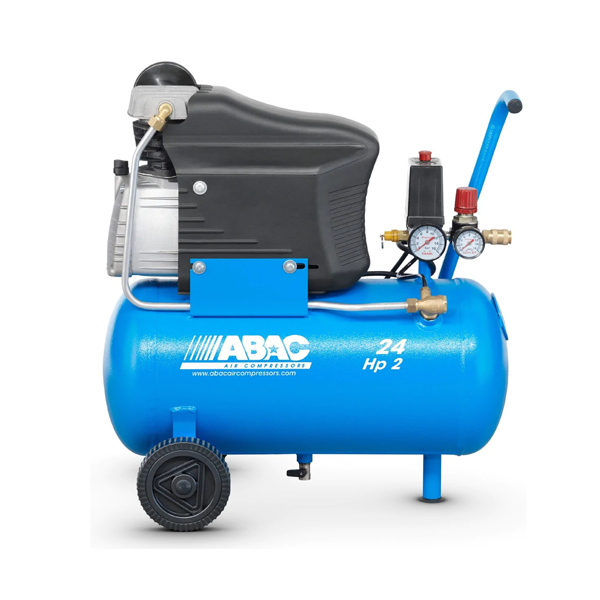

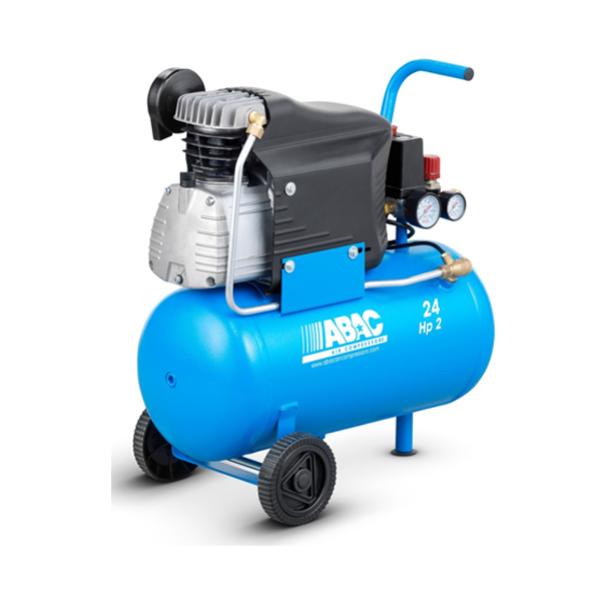

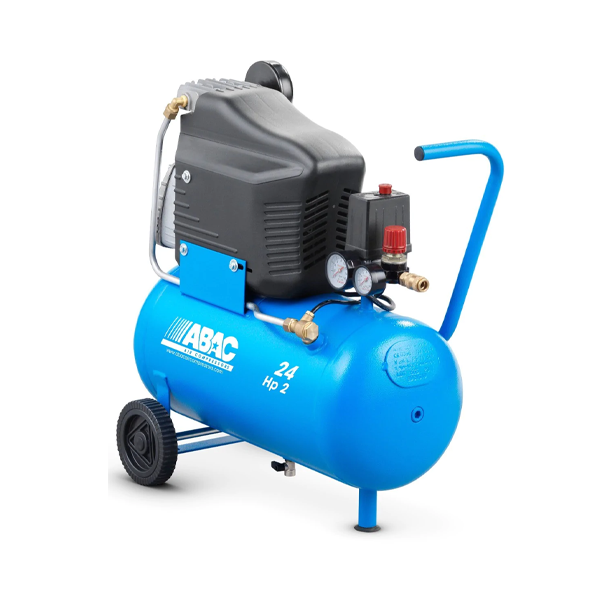

ABAC Air Compressor, 24 Liters, 2HP - POLE POSITION L20

Portable Air Compressor 24L

For contractors, technicians, and specialized craftsmen seeking a balance between high-efficiency pneumatic performance and maximum jobsite mobility, the ABAC POLE POSITION L20 Air Compressor delivers an exceptionally versatile energy source. Engineered around a responsive 2 HP (1.5 kW) motor, this compact unit drives an advanced L20 belt-driven pump at 2850 RPM to generate a steady airflow rate of 220 L/min (7.8 CFM) at a maximum pressure of 10 bar. Operating on a standard 230V / 1 Ph / 60 Hz electrical supply, the system effortlessly feeds essential pneumatic tools: including staple guns, paint sprayers, inflation nozzles, and air dusters: making it an indispensable asset for finish carpentry, auto-detailing, and field maintenance.

Despite its compact 24-liter tank footprint, the POLE POSITION L20 is packed with durability-enhancing features tailored for daily site work. The lubricated piston-type pump minimizes internal mechanical friction, while the belt-driven mechanism absorbs operational stress and dampens vibration. Furthermore, the integrated aftercooler lowers discharge temperatures to significantly diminish moisture accumulation, supplying cleaner compressed air to protect connected pneumatic equipment. Weighing just 25 kg with streamlined dimensions of 610 × 310 × 580 mm, this unit features an ergonomic transport handle and heavy-duty wheels, allowing operators to easily load, roll, and position dependable air power wherever the job demands.

Key Features & Benefits:

• Responsive 2 HP (1.5 kW) Industrial Motor: Operates on standard 230V single-phase power at 60 Hz, supplying reliable and continuous energy to drive the pump efficiently without causing unexpected circuit overloads or voltage dips.

• Compact 24-Liter Air Reservoir: Holds a steady volume of compressed air to power short-to-medium pneumatic cycles smoothly, maintaining consistent output pressure while keeping the total machine dimensions compact for easy storage.

• High-Volume 220 L/min (7.8 CFM) Air Delivery: Delivers a continuous flow of compressed air at up to 10 bar pressure, enabling flawless operation of various air tools such as Brad nailers, spray guns, and tire inflators without experiencing pressure lag.

• Low-Vibration Belt-Driven L20 Pump: Features an advanced lubricated piston architecture connected via a belt drive system operating at 2850 RPM, which isolates mechanical shock, lowers operational noise, and significantly extends the service life of internal components.

• Integrated Discharge Aftercooler Technology: Actively chills the compressed air as it exits the pump, causing suspended water vapors to condense early and drastically reducing moisture carryover into your air lines and pneumatic tools.

• Lightweight 25 kg Portable Frame Construction: Designed with an optimized structural layout measuring 610 × 310 × 580 mm, allowing a single operator to lift, transport, and maneuver the compressor across active work areas without physical strain.

• Ergonomic Handgrip and Mobility Wheel Kit: Combines a sturdy top-mounted transport handle with durable floor wheels, providing fluid movement over threshold bumps and uneven workshop surfaces for fast setup.

• Smooth Oil-Lubricated Compression Mechanism: Utilizes an active internal oil bath to keep pistons and cylinder walls thoroughly lubricated during operation, actively preventing thermal buildup and minimizing wear on vital mechanical seals.
