ABAC Air Compressor, 500 Liters, 7.5HP, Made in Italy - B6000/500 CT7,5

Belt-Driven Air Compressor 500L

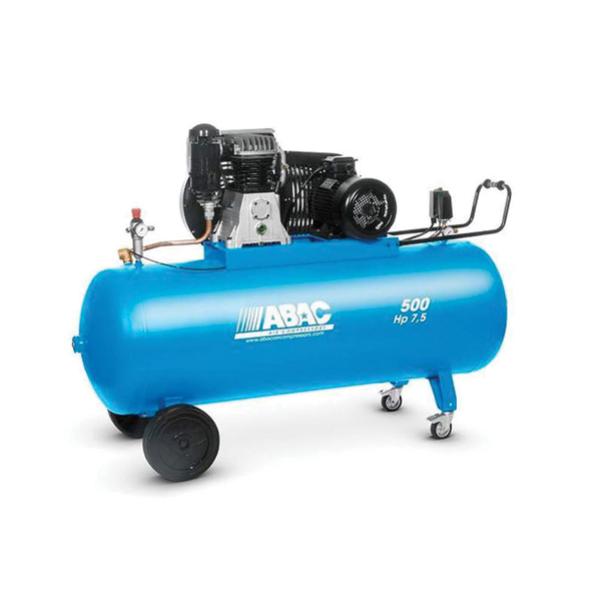

Engineered to meet the continuous pneumatic demands of large-scale automotive service centers, manufacturing assembly lines, and industrial fabrication shops, the ABAC B6000/500 CT7.5 Air Compressor delivers an uninterrupted supply of high-pressure air. Driven by an industrial 7.5 HP (5.5 kW) motor, this compressor generates a substantial 818 L/min airflow at a maximum working pressure of 11 Bar. Its expansive 500-liter horizontal receiver tank stores an ample reserve of compressed air, allowing technicians to run multiple high-consumption pneumatic wrenches, sanders, and spray systems simultaneously without experiencing pressure drops or frequent motor restarts.

Durability and thermal efficiency are built directly into the B6000 two-stage pump unit, which utilizes solid cast-iron cylinders and corrosion-resistant stainless steel reed valves to maintain compression integrity over thousands of operating hours. Designed for low-speed operation, the pump minimizes mechanical friction, acoustic output, and internal wear. An aerodynamically contoured belt guard with integrated cooling fins directs a constant stream of ambient air across the pump head, working alongside an enlarged oil reservoir to keep operating temperatures low during extended shifts. Despite its substantial capacity, the Air Compressor offers versatile workshop positioning thanks to a reinforced steel chassis equipped with heavy-duty transport wheels and front stabilizing feet.

Key Features & Benefits:

• High-Torque 7.5 HP (5.5 kW) 3-Phase Induction Motor: Operates on a 230–400V, 60Hz electrical supply to provide smooth startup torque and vibration-free power transmission suited for continuous industrial shifts.

• High-Performance B6000 Two-Stage Pump (818 L/min @ 11 Bar): Compresses air in two distinct stages at a low rotational speed, delivering consistent high-volume output while reducing mechanical wear and thermal stress.

• Wear-Resistant Cast-Iron Cylinders: Provide exceptional structural rigidity and superior heat dissipation, protecting internal pistons and rings during prolonged, high-pressure operation.

• 500-Liter Horizontal Air Receiver: Stores a massive volume of compressed air to stabilize line pressure across multi-drop workshop networks and significantly reduce motor duty cycles.

• Corrosion-Resistant Stainless Steel Reed Valves: Maintain airtight sealing precision under elevated temperatures and pressures, ensuring consistent volumetric efficiency and long-term valve reliability.

• Ventilated Belt Guard with Integrated Cooling Fins: Channels directional airflow directly over the B6000 pump cylinders and aftercooler while shielding operators from moving drive components.

• Enlarged Crankcase Oil Reservoir: Holds an increased volume of lubricant to improve internal heat absorption, ensure thorough component lubrication, and extend intervals between routine oil changes.

• Reinforced Mobile Chassis with Stabilizing Feet: Combines a thick-gauge steel base with durable rear wheels and vibration-damping front supports, allowing safe relocation across facility floors and rock-solid stability once positioned.
